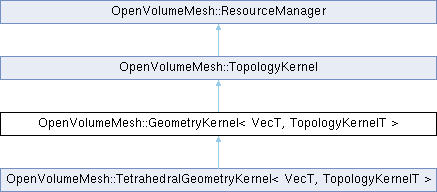

Inheritance diagram for OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >:

Public Types
using	PointT = VecT

using	Point = VecT

using	KernelT = TopologyKernelT

Public Types inherited from OpenVolumeMesh::TopologyKernel
typedef OpenVolumeMeshEdge	Edge

typedef OpenVolumeMeshFace	Face

typedef OpenVolumeMeshCell	Cell

Public Types inherited from OpenVolumeMesh::ResourceManager
using	Properties = std::set< PropertyStorageBase * >

Public Member Functions
	GeometryKernel (GeometryKernel const &other)

GeometryKernel	operator= (GeometryKernel const &other)

template<typename OtherTopoKernelT >
GeometryKernel	operator= (GeometryKernel< VecT, OtherTopoKernelT > const &other)

GeometryKernel &	operator= (GeometryKernel &&other)=delete

	GeometryKernel (GeometryKernel &&other)=default

VertexHandle	add_vertex (const VecT &_p)
	Add a geometric point to the mesh.

void	set_vertex (VertexHandle _vh, const VecT &_p)
	Set the coordinates of point _vh.

const VecT &	vertex (VertexHandle _vh) const
	Get point _vh's coordinates.

void	swap_vertices (std::vector< VecT > &_other)

PointT::value_type	length (HalfEdgeHandle _heh) const

PointT::value_type	length (EdgeHandle _eh) const

PointT	vector (HalfEdgeHandle _heh) const

PointT	vector (EdgeHandle _eh) const

PointT	barycenter (EdgeHandle _eh) const

PointT	barycenter (FaceHandle _fh) const

PointT	barycenter (CellHandle _ch) const

PointT	normal (HalfFaceHandle _hfh) const

GeometryKernelT< VecT > const &	vertex_positions () const &

GeometryKernelT< VecT > &	vertex_positions () &

Public Member Functions inherited from OpenVolumeMesh::TopologyKernel
	TopologyKernel (TopologyKernel const &other)=default

	TopologyKernel (TopologyKernel &&other)=delete

TopologyKernel &	operator= (TopologyKernel const &other)=default

TopologyKernel &	operator= (TopologyKernel &&other)=delete

VertexVertexIter	vv_iter (VertexHandle _h, int _max_laps=1) const

std::pair< VertexVertexIter, VertexVertexIter >	vertex_vertices (VertexHandle _h, int _max_laps=1) const

VertexOHalfEdgeIter	voh_iter (VertexHandle _h, int _max_laps=1) const

std::pair< VertexOHalfEdgeIter, VertexOHalfEdgeIter >	outgoing_halfedges (VertexHandle _h, int _max_laps=1) const

VertexIHalfEdgeIter	vih_iter (VertexHandle _h, int _max_laps=1) const

std::pair< VertexIHalfEdgeIter, VertexIHalfEdgeIter >	incoming_halfedges (VertexHandle _h, int _max_laps=1) const

VertexEdgeIter	ve_iter (VertexHandle _h, int _max_laps=1) const

std::pair< VertexEdgeIter, VertexEdgeIter >	vertex_edges (VertexHandle _h, int _max_laps=1) const

VertexHalfFaceIter	vhf_iter (VertexHandle _h, int _max_laps=1) const

std::pair< VertexHalfFaceIter, VertexHalfFaceIter >	vertex_halffaces (VertexHandle _h, int _max_laps=1) const

VertexFaceIter	vf_iter (VertexHandle _h, int _max_laps=1) const

std::pair< VertexFaceIter, VertexFaceIter >	vertex_faces (VertexHandle _h, int _max_laps=1) const

VertexCellIter	vc_iter (VertexHandle _h, int _max_laps=1) const

std::pair< VertexCellIter, VertexCellIter >	vertex_cells (VertexHandle _h, int _max_laps=1) const

HalfEdgeHalfFaceIter	hehf_iter (HalfEdgeHandle _h, int _max_laps=1) const

std::pair< HalfEdgeHalfFaceIter, HalfEdgeHalfFaceIter >	halfedge_halffaces (HalfEdgeHandle _h, int _max_laps=1) const

HalfEdgeFaceIter	hef_iter (HalfEdgeHandle _h, int _max_laps=1) const

std::pair< HalfEdgeFaceIter, HalfEdgeFaceIter >	halfedge_faces (HalfEdgeHandle _h, int _max_laps=1) const

HalfEdgeCellIter	hec_iter (HalfEdgeHandle _h, int _max_laps=1) const

std::pair< HalfEdgeCellIter, HalfEdgeCellIter >	halfedge_cells (HalfEdgeHandle _h, int _max_laps=1) const

EdgeHalfFaceIter	ehf_iter (EdgeHandle _h, int _max_laps=1) const

std::pair< EdgeHalfFaceIter, EdgeHalfFaceIter >	edge_halffaces (EdgeHandle _h, int _max_laps=1) const

EdgeFaceIter	ef_iter (EdgeHandle _h, int _max_laps=1) const

std::pair< EdgeFaceIter, EdgeFaceIter >	edge_faces (EdgeHandle _h, int _max_laps=1) const

EdgeCellIter	ec_iter (EdgeHandle _h, int _max_laps=1) const

std::pair< EdgeCellIter, EdgeCellIter >	edge_cells (EdgeHandle _h, int _max_laps=1) const

HalfFaceHalfEdgeIter	hfhe_iter (HalfFaceHandle _h, int _max_laps=1) const

std::pair< HalfFaceHalfEdgeIter, HalfFaceHalfEdgeIter >	halfface_halfedges (HalfFaceHandle _h, int _max_laps=1) const

HalfFaceEdgeIter	hfe_iter (HalfFaceHandle _h, int _max_laps=1) const

std::pair< HalfFaceEdgeIter, HalfFaceEdgeIter >	halfface_edges (HalfFaceHandle _h, int _max_laps=1) const

FaceVertexIter	fv_iter (FaceHandle _h, int _max_laps=1) const

std::pair< FaceVertexIter, FaceVertexIter >	face_vertices (FaceHandle _h, int _max_laps=1) const

FaceHalfEdgeIter	fhe_iter (FaceHandle _h, int _max_laps=1) const

std::pair< FaceHalfEdgeIter, FaceHalfEdgeIter >	face_halfedges (FaceHandle _h, int _max_laps=1) const

FaceEdgeIter	fe_iter (FaceHandle _h, int _max_laps=1) const

std::pair< FaceEdgeIter, FaceEdgeIter >	face_edges (FaceHandle _h, int _max_laps=1) const

CellVertexIter	cv_iter (CellHandle _h, int _max_laps=1) const

std::pair< CellVertexIter, CellVertexIter >	cell_vertices (CellHandle _h, int _max_laps=1) const

CellHalfEdgeIter	che_iter (CellHandle _h, int _max_laps=1) const

std::pair< CellHalfEdgeIter, CellHalfEdgeIter >	cell_halfedges (CellHandle _h, int _max_laps=1) const

CellEdgeIter	ce_iter (CellHandle _h, int _max_laps=1) const

std::pair< CellEdgeIter, CellEdgeIter >	cell_edges (CellHandle _h, int _max_laps=1) const

CellHalfFaceIter	chf_iter (CellHandle _h, int _max_laps=1) const

std::pair< CellHalfFaceIter, CellHalfFaceIter >	cell_halffaces (CellHandle _h, int _max_laps=1) const

CellFaceIter	cf_iter (CellHandle _h, int _max_laps=1) const

std::pair< CellFaceIter, CellFaceIter >	cell_faces (CellHandle _h, int _max_laps=1) const

CellCellIter	cc_iter (CellHandle _h, int _max_laps=1) const

std::pair< CellCellIter, CellCellIter >	cell_cells (CellHandle _h, int _max_laps=1) const

HalfFaceVertexIter	hfv_iter (HalfFaceHandle _h, int _max_laps=1) const

std::pair< HalfFaceVertexIter, HalfFaceVertexIter >	halfface_vertices (HalfFaceHandle _h, int _max_laps=1) const

BoundaryHalfFaceHalfFaceIter	bhfhf_iter (HalfFaceHandle _ref_h, int _max_laps=1) const

std::pair< BoundaryHalfFaceHalfFaceIter, BoundaryHalfFaceHalfFaceIter >	boundary_halfface_halffaces (HalfFaceHandle _h, int _max_laps=1) const

BoundaryVertexIter	bv_iter () const

BoundaryHalfEdgeIter	bhe_iter () const

BoundaryEdgeIter	be_iter () const

BoundaryHalfFaceIter	bhf_iter () const

BoundaryFaceIter	bf_iter () const

BoundaryCellIter	bc_iter () const

VertexIter	v_iter () const

VertexIter	vertices_begin () const

VertexIter	vertices_end () const

std::pair< VertexIter, VertexIter >	vertices () const

EdgeIter	e_iter () const

EdgeIter	edges_begin () const

EdgeIter	edges_end () const

std::pair< EdgeIter, EdgeIter >	edges () const

HalfEdgeIter	he_iter () const

HalfEdgeIter	halfedges_begin () const

HalfEdgeIter	halfedges_end () const

std::pair< HalfEdgeIter, HalfEdgeIter >	halfedges () const

FaceIter	f_iter () const

FaceIter	faces_begin () const

FaceIter	faces_end () const

std::pair< FaceIter, FaceIter >	faces () const

HalfFaceIter	hf_iter () const

HalfFaceIter	halffaces_begin () const

HalfFaceIter	halffaces_end () const

std::pair< HalfFaceIter, HalfFaceIter >	halffaces () const

CellIter	c_iter () const

CellIter	cells_begin () const

CellIter	cells_end () const

std::pair< CellIter, CellIter >	cells () const

std::array< VertexHandle, 2 >	halfedge_vertices (HalfEdgeHandle _h) const

std::array< VertexHandle, 2 >	edge_vertices (EdgeHandle _h) const

std::array< HalfEdgeHandle, 2 >	edge_halfedges (EdgeHandle _h) const

std::array< HalfFaceHandle, 2 >	face_halffaces (FaceHandle _h) const

std::array< CellHandle, 2 >	face_cells (FaceHandle _h) const

size_t	n_vertices () const override
	Get number of vertices in mesh.

size_t	n_edges () const override
	Get number of edges in mesh.

size_t	n_halfedges () const override
	Get number of halfedges in mesh.

size_t	n_faces () const override
	Get number of faces in mesh.

size_t	n_halffaces () const override
	Get number of halffaces in mesh.

size_t	n_cells () const override
	Get number of cells in mesh.

size_t	n_logical_vertices () const
	Get number of undeleted vertices in mesh.

size_t	n_logical_edges () const
	Get number of undeleted edges in mesh.

size_t	n_logical_halfedges () const
	Get number of undeleted halfedges in mesh.

size_t	n_logical_faces () const
	Get number of undeleted faces in mesh.

size_t	n_logical_halffaces () const
	Get number of undeleted halffaces in mesh.

size_t	n_logical_cells () const
	Get number of undeleted cells in mesh.

int	genus () const

void	add_n_vertices (size_t n)

void	reserve_vertices (size_t n)

void	reserve_edges (size_t n)

void	reserve_faces (size_t n)

void	reserve_cells (size_t n)

virtual VertexHandle	add_vertex ()
	Add abstract vertex.

virtual EdgeHandle	add_edge (VertexHandle _fromVertex, VertexHandle _toHandle, bool _allowDuplicates=false)
	Add edge.

virtual FaceHandle	add_face (std::vector< HalfEdgeHandle > _halfedges, bool _topologyCheck=false)
	Add face via incident edges.

virtual FaceHandle	add_face (const std::vector< VertexHandle > &_vertices)
	Add face via incident vertices.

virtual CellHandle	add_cell (std::vector< HalfFaceHandle > _halffaces, bool _topologyCheck=false)
	Add cell via incident halffaces.

void	set_edge (EdgeHandle _eh, VertexHandle _fromVertex, VertexHandle _toVertex)
	Set the vertices of an edge.

void	set_face (FaceHandle _fh, const std::vector< HalfEdgeHandle > &_hes)
	Set the half-edges of a face.

void	set_cell (CellHandle _ch, const std::vector< HalfFaceHandle > &_hfs)
	Set the half-faces of a cell.

void	reorder_incident_halffaces (EdgeHandle _eh)
	Recompute cyclic ordering of (half)faces incident to an edge (used by iterators)

const Edge &	edge (EdgeHandle _edgeHandle) const
	Get edge with handle _edgeHandle.

const Face &	face (FaceHandle _faceHandle) const
	Get face with handle _faceHandle.

const Cell &	cell (CellHandle _cellHandle) const
	Get cell with handle _cellHandle.

Edge &	edge (EdgeHandle _edgeHandle)
	Get edge with handle _edgeHandle.

Face &	face (FaceHandle _faceHandle)
	Get face with handle _faceHandle.

Cell &	cell (CellHandle _cellHandle)
	Get cell with handle _cellHandle.

Edge	halfedge (HalfEdgeHandle _halfEdgeHandle) const
	Get edge that corresponds to halfedge with handle _halfEdgeHandle.

Face	halfface (HalfFaceHandle _halfFaceHandle) const
	Get face that corresponds to halfface with handle _halfFaceHandle.

Edge	opposite_halfedge (HalfEdgeHandle _halfEdgeHandle) const
	Get opposite halfedge that corresponds to halfedge with handle _halfEdgeHandle.

Face	opposite_halfface (HalfFaceHandle _halfFaceHandle) const
	Get opposite halfface that corresponds to halfface with handle _halfFaceHandle.

HalfEdgeHandle	find_halfedge (VertexHandle _vh1, VertexHandle _vh2) const
	Get halfedge from vertex _vh1 to _vh2.

HalfEdgeHandle	halfedge (VertexHandle _vh1, VertexHandle _vh2) const

HalfEdgeHandle	find_halfedge_in_cell (VertexHandle _vh1, VertexHandle _vh2, CellHandle _ch) const
	Get halfedge from vertex _vh1 to _vh2 but restricted to halfedges of cell _ch.

HalfFaceHandle	find_halfface (const std::vector< VertexHandle > &_vs) const

HalfFaceHandle	halfface (const std::vector< VertexHandle > &_vs) const

HalfFaceHandle	find_halfface_in_cell (const std::vector< VertexHandle > &_vs, CellHandle _ch) const

HalfFaceHandle	find_halfface_extensive (const std::vector< VertexHandle > &_vs) const

HalfFaceHandle	halfface_extensive (const std::vector< VertexHandle > &_vs) const

HalfFaceHandle	find_halfface (const std::vector< HalfEdgeHandle > &_hes) const

HalfFaceHandle	halfface (const std::vector< HalfEdgeHandle > &_hes) const

HalfEdgeHandle	next_halfedge_in_halfface (HalfEdgeHandle _heh, HalfFaceHandle _hfh) const
	Get next halfedge within a halfface.

HalfEdgeHandle	prev_halfedge_in_halfface (HalfEdgeHandle _heh, HalfFaceHandle _hfh) const
	Get previous halfedge within a halfface.

VertexHandle	from_vertex_handle (HalfEdgeHandle _h) const
	Get the vertex the halfedge starts from.

VertexHandle	to_vertex_handle (HalfEdgeHandle _h) const
	Get the vertex the halfedge points to.

size_t	valence (VertexHandle _vh) const
	Get valence of vertex (number of incident edges)

size_t	valence (EdgeHandle _eh) const
	Get valence of edge (number of incident faces)

size_t	valence (FaceHandle _fh) const
	Get valence of face (number of incident edges)

size_t	valence (CellHandle _ch) const
	Get valence of cell (number of incident faces)

std::vector< VertexHandle >	get_halfface_vertices (HalfFaceHandle hfh) const
	Get vertices of a halfface.

std::vector< VertexHandle >	get_halfface_vertices (HalfFaceHandle hfh, VertexHandle vh) const
	Get vertices of a halfface orderd to start from vh.

std::vector< VertexHandle >	get_halfface_vertices (HalfFaceHandle hfh, HalfEdgeHandle heh) const
	Get vertices of a halfface orderd to start from from_vertex_handle(heh)

bool	is_incident (FaceHandle _fh, EdgeHandle _eh) const
	check whether face _fh and edge _eh are incident

virtual VertexIter	delete_vertex (VertexHandle _h)
	Delete vertex from mesh.

virtual EdgeIter	delete_edge (EdgeHandle _h)
	Delete edge from mesh.

virtual FaceIter	delete_face (FaceHandle _h)
	Delete face from mesh.

virtual CellIter	delete_cell (CellHandle _h)
	Delete cell from mesh.

virtual void	collect_garbage ()
	Delete all entities that are marked as deleted.

virtual bool	is_deleted (VertexHandle _h) const

virtual bool	is_deleted (EdgeHandle _h) const

virtual bool	is_deleted (HalfEdgeHandle _h) const

virtual bool	is_deleted (FaceHandle _h) const

virtual bool	is_deleted (HalfFaceHandle _h) const

virtual bool	is_deleted (CellHandle _h) const

virtual void	swap_cell_indices (CellHandle _h1, CellHandle _h2)
	Exchanges the indices of two cells while keeping the mesh otherwise unaffected.

virtual void	swap_face_indices (FaceHandle _h1, FaceHandle _h2)
	Exchanges the indices of two faces while keeping the mesh otherwise unaffected.

virtual void	swap_edge_indices (EdgeHandle _h1, EdgeHandle _h2)
	Exchanges the indices of two edges while keeping the mesh otherwise unaffected.

virtual void	swap_vertex_indices (VertexHandle _h1, VertexHandle _h2)
	Exchanges the indices of two vertices while keeping the mesh otherwise unaffected.

virtual void	clear (bool _clearProps=true)
	Clear whole mesh.

void	enable_bottom_up_incidences (bool _enable=true)

void	enable_vertex_bottom_up_incidences (bool _enable=true)

void	enable_edge_bottom_up_incidences (bool _enable=true)

void	enable_face_bottom_up_incidences (bool _enable=true)

bool	has_full_bottom_up_incidences () const

bool	has_vertex_bottom_up_incidences () const

bool	has_edge_bottom_up_incidences () const

bool	has_face_bottom_up_incidences () const

void	enable_deferred_deletion (bool _enable=true)

bool	deferred_deletion_enabled () const

void	enable_fast_deletion (bool _enable=true)

bool	fast_deletion_enabled () const

HalfFaceHandle	adjacent_halfface_in_cell (HalfFaceHandle _halfFaceHandle, HalfEdgeHandle _halfEdgeHandle) const
	Get halfface that is adjacent (w.r.t. a common halfedge) within the same cell. It correctly handles self-adjacent cells where the halfedge orientation matters. For legacy reasons the halfedge orientation can be arbitrary if there are no self-adjacencies in the cell.

CellHandle	incident_cell (HalfFaceHandle _halfFaceHandle) const
	Get cell that is incident to the given halfface.

bool	is_boundary (HalfFaceHandle _halfFaceHandle) const

bool	is_boundary (FaceHandle _faceHandle) const

bool	is_boundary (EdgeHandle _edgeHandle) const

bool	is_boundary (HalfEdgeHandle _halfedgeHandle) const

bool	is_boundary (VertexHandle _vertexHandle) const

bool	is_boundary (CellHandle _cellHandle) const

size_t	n_vertices_in_cell (CellHandle _ch) const

Edge	opposite_halfedge (const Edge &_edge) const

Face	opposite_halfface (const Face &_face) const

bool	needs_garbage_collection () const

template<typename Handle >
bool	is_valid (Handle _h) const
	test is_valid and perform index range check

Public Member Functions inherited from OpenVolumeMesh::ResourceManager
	ResourceManager (const ResourceManager &other)

ResourceManager &	operator= (const ResourceManager &other)

	ResourceManager (ResourceManager &&other)=delete

ResourceManager &	operator= (ResourceManager &&other)=delete

void	clear_all_props ()
	drop all persistent properties.

template<typename EntityTag >
void	clear_props ()
	drop persistent properties.

template<typename EntityTag >
size_t	n () const
	Get number of entities of given kind in mesh.

template<typename EntityTag >
size_t	n_props () const
	number of tracked properties

template<typename EntityTag >
size_t	n_persistent_props () const
	number of persistent properties

template<typename T , typename EntityTag >
PropertyPtr< T, EntityTag >	request_property (const std::string &_name=std::string(), const T _def=T())

template<typename T , typename EntityTag >
std::optional< PropertyPtr< T, EntityTag > >	create_property (std::string _name=std::string(), const T _def=T())

template<typename T , typename EntityTag >
std::optional< PropertyPtr< T, EntityTag > >	create_shared_property (std::string _name, const T _def=T())

template<typename T , typename EntityTag >
std::optional< PropertyPtr< T, EntityTag > >	create_persistent_property (std::string _name, const T _def=T())

template<typename T , typename EntityTag >
PropertyPtr< T, EntityTag >	create_private_property (std::string _name={}, const T _def=T()) const

template<typename T , typename EntityTag >
std::optional< PropertyPtr< T, EntityTag > >	get_property (const std::string &_name)

template<typename T , typename EntityTag >
std::optional< const PropertyPtr< T, EntityTag > >	get_property (const std::string &_name) const

template<typename T , typename EntityTag >
bool	property_exists (const std::string &_name) const

template<typename T , class EntityTag >
void	set_persistent (PropertyPtr< T, EntityTag > &_prop, bool _enable=true)

template<typename T , class EntityTag >
void	set_shared (PropertyPtr< T, EntityTag > &_prop, bool _enable=true)

template<typename EntityTag >
PropertyIterator< PersistentProperties::const_iterator >	persistent_props_begin () const

template<typename EntityTag >
PropertyIterator< PersistentProperties::const_iterator >	persistent_props_end () const

void	clear_vertex_props ()
	convenience functions:

void	clear_edge_props ()

void	clear_halfedge_props ()

void	clear_face_props ()

void	clear_halfface_props ()

void	clear_cell_props ()

void	clear_mesh_props ()

template<class T >
VertexPropertyT< T >	request_vertex_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
EdgePropertyT< T >	request_edge_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
HalfEdgePropertyT< T >	request_halfedge_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
FacePropertyT< T >	request_face_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
HalfFacePropertyT< T >	request_halfface_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
CellPropertyT< T >	request_cell_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
MeshPropertyT< T >	request_mesh_property (const std::string &_name=std::string(), const T _def=T())

size_t	n_vertex_props () const

auto	vertex_props_begin () const

auto	vertex_props_end () const

template<typename T >
std::optional< VertexPropertyPtr< T > >	create_shared_vertex_property (std::string _name, const T _def=T())

template<typename T >
std::optional< VertexPropertyPtr< T > >	create_persistent_vertex_property (std::string _name, const T _def=T())

template<typename T >
VertexPropertyPtr< T >	create_private_vertex_property (std::string _name={}, const T _def=T()) const

template<typename T >
std::optional< VertexPropertyPtr< T > >	get_vertex_property (const std::string &_name)

template<typename T >
std::optional< const VertexPropertyPtr< T > >	get_vertex_property (const std::string &_name) const

template<class T >
bool	vertex_property_exists (const std::string &_name) const

size_t	n_edge_props () const

auto	edge_props_begin () const

auto	edge_props_end () const

template<typename T >
std::optional< EdgePropertyPtr< T > >	create_shared_edge_property (std::string _name, const T _def=T())

template<typename T >
std::optional< EdgePropertyPtr< T > >	create_persistent_edge_property (std::string _name, const T _def=T())

template<typename T >
EdgePropertyPtr< T >	create_private_edge_property (std::string _name={}, const T _def=T()) const

template<typename T >
std::optional< EdgePropertyPtr< T > >	get_edge_property (const std::string &_name)

template<typename T >
std::optional< const EdgePropertyPtr< T > >	get_edge_property (const std::string &_name) const

template<class T >
bool	edge_property_exists (const std::string &_name) const

size_t	n_halfedge_props () const

auto	halfedge_props_begin () const

auto	halfedge_props_end () const

template<typename T >
std::optional< HalfEdgePropertyPtr< T > >	create_shared_halfedge_property (std::string _name, const T _def=T())

template<typename T >
std::optional< HalfEdgePropertyPtr< T > >	create_persistent_halfedge_property (std::string _name, const T _def=T())

template<typename T >
HalfEdgePropertyPtr< T >	create_private_halfedge_property (std::string _name={}, const T _def=T()) const

template<typename T >
std::optional< HalfEdgePropertyPtr< T > >	get_halfedge_property (const std::string &_name)

template<typename T >
std::optional< const HalfEdgePropertyPtr< T > >	get_halfedge_property (const std::string &_name) const

template<class T >
bool	halfedge_property_exists (const std::string &_name) const

size_t	n_face_props () const

auto	face_props_begin () const

auto	face_props_end () const

template<typename T >
std::optional< FacePropertyPtr< T > >	create_shared_face_property (std::string _name, const T _def=T())

template<typename T >
std::optional< FacePropertyPtr< T > >	create_persistent_face_property (std::string _name, const T _def=T())

template<typename T >
FacePropertyPtr< T >	create_private_face_property (std::string _name={}, const T _def=T()) const

template<typename T >
std::optional< FacePropertyPtr< T > >	get_face_property (const std::string &_name)

template<typename T >
std::optional< const FacePropertyPtr< T > >	get_face_property (const std::string &_name) const

template<class T >
bool	face_property_exists (const std::string &_name) const

size_t	n_halfface_props () const

auto	halfface_props_begin () const

auto	halfface_props_end () const

template<typename T >
std::optional< HalfFacePropertyPtr< T > >	create_shared_halfface_property (std::string _name, const T _def=T())

template<typename T >
std::optional< HalfFacePropertyPtr< T > >	create_persistent_halfface_property (std::string _name, const T _def=T())

template<typename T >
HalfFacePropertyPtr< T >	create_private_halfface_property (std::string _name={}, const T _def=T()) const

template<typename T >
std::optional< HalfFacePropertyPtr< T > >	get_halfface_property (const std::string &_name)

template<typename T >
std::optional< const HalfFacePropertyPtr< T > >	get_halfface_property (const std::string &_name) const

template<class T >
bool	halfface_property_exists (const std::string &_name) const

size_t	n_cell_props () const

auto	cell_props_begin () const

auto	cell_props_end () const

template<typename T >
std::optional< CellPropertyPtr< T > >	create_shared_cell_property (std::string _name, const T _def=T())

template<typename T >
std::optional< CellPropertyPtr< T > >	create_persistent_cell_property (std::string _name, const T _def=T())

template<typename T >
CellPropertyPtr< T >	create_private_cell_property (std::string _name={}, const T _def=T()) const

template<typename T >
std::optional< CellPropertyPtr< T > >	get_cell_property (const std::string &_name)

template<typename T >
std::optional< const CellPropertyPtr< T > >	get_cell_property (const std::string &_name) const

template<class T >
bool	cell_property_exists (const std::string &_name) const

Private Member Functions
GeometryKernelT< VecT >	get_prop ()

GeometryKernelT< VecT >	make_prop ()

Private Attributes
GeometryKernelT< VecT >	position_

Additional Inherited Members
Static Public Member Functions inherited from OpenVolumeMesh::TopologyKernel
static HalfEdgeHandle	halfedge_handle (EdgeHandle _h, const unsigned char _subIdx)
	Conversion function.

static HalfFaceHandle	halfface_handle (FaceHandle _h, const unsigned char _subIdx)
	Conversion function.

static EdgeHandle	edge_handle (HalfEdgeHandle _h)
	Handle conversion.

static FaceHandle	face_handle (HalfFaceHandle _h)

static HalfEdgeHandle	opposite_halfedge_handle (HalfEdgeHandle _h)

static HalfFaceHandle	opposite_halfface_handle (HalfFaceHandle _h)

Static Public Attributes inherited from OpenVolumeMesh::TopologyKernel
static const VertexHandle	InvalidVertexHandle = VertexHandle(-1)

static const EdgeHandle	InvalidEdgeHandle = EdgeHandle(-1)

static const FaceHandle	InvalidFaceHandle = FaceHandle(-1)

static const CellHandle	InvalidCellHandle = CellHandle(-1)

static const HalfEdgeHandle	InvalidHalfEdgeHandle = HalfEdgeHandle(-1)

static const HalfFaceHandle	InvalidHalfFaceHandle = HalfFaceHandle(-1)

Protected Member Functions inherited from OpenVolumeMesh::TopologyKernel
void	compute_vertex_bottom_up_incidences ()

void	compute_edge_bottom_up_incidences ()

void	compute_face_bottom_up_incidences ()

Protected Member Functions inherited from OpenVolumeMesh::ResourceManager
template<typename EntityTag >
detail::Tracker< PropertyStorageBase > &	storage_tracker () const

detail::Tracker< PropertyStorageBase > &	storage_tracker (EntityType type) const

void	resize_vprops (size_t _nv)
	Change size of stored vertex properties.

void	resize_eprops (size_t _ne)
	Change size of stored edge properties.

void	resize_fprops (size_t _nf)
	Change size of stored face properties.

void	resize_cprops (size_t _nc)
	Change size of stored cell properties.

void	reserve_vprops (size_t n)

void	reserve_eprops (size_t n)

void	reserve_fprops (size_t n)

void	reserve_cprops (size_t n)

void	vertex_deleted (const VertexHandle &_h)

void	edge_deleted (const EdgeHandle &_h)

void	face_deleted (const FaceHandle &_h)

void	cell_deleted (const CellHandle &_h)

template<typename Handle >
void	swap_property_elements (Handle _idx_a, Handle _idx_b)

template<typename Handle >
void	copy_property_elements (Handle _idx_a, Handle _idx_b)

Static Protected Member Functions inherited from OpenVolumeMesh::TopologyKernel
template<class Circulator >
static Circulator	make_end_circulator (const Circulator &_circ)

Protected Attributes inherited from OpenVolumeMesh::TopologyKernel
VertexVector< std::vector< HalfEdgeHandle > >	outgoing_hes_per_vertex_

HalfEdgeVector< std::vector< HalfFaceHandle > >	incident_hfs_per_he_

HalfFaceVector< CellHandle >	incident_cell_per_hf_

Protected Attributes inherited from OpenVolumeMesh::ResourceManager
PerEntity< detail::Tracker< PropertyStorageBase > >	storage_trackers_

Detailed Description

template<class VecT, class TopologyKernelT = TopologyKernel>
class OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >

Definition at line 50 of file GeometryKernel.hh.

Member Typedef Documentation

◆ KernelT

template<class VecT , class TopologyKernelT = TopologyKernel>

using OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::KernelT = TopologyKernelT

Definition at line 55 of file GeometryKernel.hh.

◆ Point

template<class VecT , class TopologyKernelT = TopologyKernel>

using OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::Point = VecT

Definition at line 54 of file GeometryKernel.hh.

◆ PointT

template<class VecT , class TopologyKernelT = TopologyKernel>

using OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::PointT = VecT

Definition at line 53 of file GeometryKernel.hh.

Constructor & Destructor Documentation

◆ GeometryKernel() [1/2]

template<class VecT , class TopologyKernelT = TopologyKernel>

OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::GeometryKernel ( )

inline

Definition at line 60 of file GeometryKernel.hh.

◆ GeometryKernel() [2/2]

template<class VecT , class TopologyKernelT = TopologyKernel>

OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::GeometryKernel ( GeometryKernel< VecT, TopologyKernelT > const & other )

inline

Definition at line 65 of file GeometryKernel.hh.

Member Function Documentation

◆ add_vertex()

template<class VecT , class TopologyKernelT = TopologyKernel>

VertexHandle OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::add_vertex ( const VecT & _p )

inline

Add a geometric point to the mesh.

Definition at line 111 of file GeometryKernel.hh.

◆ barycenter() [1/3]

template<class VecT , class TopologyKernelT = TopologyKernel>

PointT OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::barycenter ( CellHandle _ch ) const

inline

Definition at line 174 of file GeometryKernel.hh.

◆ barycenter() [2/3]

template<class VecT , class TopologyKernelT = TopologyKernel>

PointT OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::barycenter ( EdgeHandle _eh ) const

inline

Definition at line 157 of file GeometryKernel.hh.

◆ barycenter() [3/3]

template<class VecT , class TopologyKernelT = TopologyKernel>

PointT OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::barycenter ( FaceHandle _fh ) const

inline

Definition at line 162 of file GeometryKernel.hh.

◆ get_prop()

template<class VecT , class TopologyKernelT = TopologyKernel>

GeometryKernelT< VecT > OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::get_prop ( )

inlineprivate

Definition at line 211 of file GeometryKernel.hh.

◆ length() [1/2]

template<class VecT , class TopologyKernelT = TopologyKernel>

PointT::value_type OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::length ( EdgeHandle _eh ) const

inline

Definition at line 141 of file GeometryKernel.hh.

◆ length() [2/2]

template<class VecT , class TopologyKernelT = TopologyKernel>

PointT::value_type OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::length ( HalfEdgeHandle _heh ) const

inline

Definition at line 137 of file GeometryKernel.hh.

◆ make_prop()

template<class VecT , class TopologyKernelT = TopologyKernel>

GeometryKernelT< VecT > OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::make_prop ( )

inlineprivate

Definition at line 216 of file GeometryKernel.hh.

◆ normal()

template<class VecT , class TopologyKernelT = TopologyKernel>

PointT OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::normal ( HalfFaceHandle _hfh ) const

inline

Compute halfface normal assuming planarity (just uses first 2 edges) Note: NormalAttrib provides fast access to precomputed normals.

Definition at line 187 of file GeometryKernel.hh.

◆ operator=() [1/2]

template<class VecT , class TopologyKernelT = TopologyKernel>

GeometryKernel OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::operator= ( GeometryKernel< VecT, TopologyKernelT > const & other )

inline

Definition at line 73 of file GeometryKernel.hh.

◆ operator=() [2/2]

template<class VecT , class TopologyKernelT = TopologyKernel>

template<typename OtherTopoKernelT >

GeometryKernel OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::operator= ( GeometryKernel< VecT, OtherTopoKernelT > const & other )

inline

Mesh assignment between different topology types: Be careful, no check is performed to see if the topology of other is actually legal for this, e.g. when assigning a PolyhedralMesh to a TetrahedralMesh, make sure it really only contains tets, etc.

Definition at line 92 of file GeometryKernel.hh.

◆ set_vertex()

template<class VecT , class TopologyKernelT = TopologyKernel>

void OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::set_vertex	(	VertexHandle	_vh,
		const VecT &	_p
	)

inline

Set the coordinates of point _vh.

Definition at line 119 of file GeometryKernel.hh.

◆ swap_vertices()

template<class VecT , class TopologyKernelT = TopologyKernel>

void OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::swap_vertices ( std::vector< VecT > & _other )

inline

Definition at line 131 of file GeometryKernel.hh.

◆ vector() [1/2]

template<class VecT , class TopologyKernelT = TopologyKernel>

PointT OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::vector ( EdgeHandle _eh ) const

inline

Definition at line 151 of file GeometryKernel.hh.

◆ vector() [2/2]

template<class VecT , class TopologyKernelT = TopologyKernel>

PointT OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::vector ( HalfEdgeHandle _heh ) const

inline

Definition at line 145 of file GeometryKernel.hh.

◆ vertex()

template<class VecT , class TopologyKernelT = TopologyKernel>

const VecT & OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::vertex ( VertexHandle _vh ) const

inline

Get point _vh's coordinates.

Definition at line 127 of file GeometryKernel.hh.

◆ vertex_positions() [1/2]

template<class VecT , class TopologyKernelT = TopologyKernel>

GeometryKernelT< VecT > & OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::vertex_positions ( ) &

inline

Definition at line 208 of file GeometryKernel.hh.

◆ vertex_positions() [2/2]

template<class VecT , class TopologyKernelT = TopologyKernel>

GeometryKernelT< VecT > const & OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::vertex_positions ( ) const &

inline

Definition at line 207 of file GeometryKernel.hh.

Friends And Related Symbol Documentation

◆ GeometryKernel

template<class VecT , class TopologyKernelT = TopologyKernel>

template<typename OtherVec , typename OtherTopo >

friend class GeometryKernel

friend

Definition at line 58 of file GeometryKernel.hh.

Member Data Documentation

◆ position_

template<class VecT , class TopologyKernelT = TopologyKernel>

GeometryKernelT<VecT> OpenVolumeMesh::GeometryKernel< VecT, TopologyKernelT >::position_

private

Definition at line 223 of file GeometryKernel.hh.

The documentation for this class was generated from the following file:

Type-OpenVolumeMesh/libs/OpenVolumeMesh/src/OpenVolumeMesh/Core/GeometryKernel.hh

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ KernelT

◆ Point

◆ PointT

Constructor & Destructor Documentation

◆ GeometryKernel() [1/2]

◆ GeometryKernel() [2/2]

Member Function Documentation

◆ add_vertex()

◆ barycenter() [1/3]

◆ barycenter() [2/3]

◆ barycenter() [3/3]

◆ get_prop()

◆ length() [1/2]

◆ length() [2/2]

◆ make_prop()

◆ normal()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ set_vertex()

◆ swap_vertices()

◆ vector() [1/2]

◆ vector() [2/2]

◆ vertex()

◆ vertex_positions() [1/2]

◆ vertex_positions() [2/2]

Friends And Related Symbol Documentation

◆ GeometryKernel

Member Data Documentation

◆ position_
