A data structure based on PolyhedralMesh with specializations for tetrahedra. More...

#include <Type-OpenVolumeMesh/libs/OpenVolumeMesh/src/OpenVolumeMesh/Mesh/TetrahedralMeshTopologyKernel.hh>

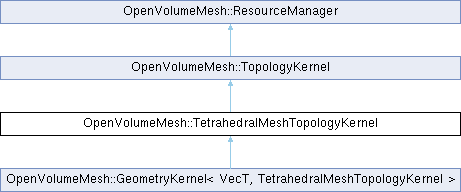

Inheritance diagram for OpenVolumeMesh::TetrahedralMeshTopologyKernel:

Public Types
typedef class TetVertexIter	TetVertexIter

Public Types inherited from OpenVolumeMesh::TopologyKernel
typedef OpenVolumeMeshEdge	Edge

typedef OpenVolumeMeshFace	Face

typedef OpenVolumeMeshCell	Cell

Public Types inherited from OpenVolumeMesh::ResourceManager
using	Properties = std::set< PropertyStorageBase * >

Public Member Functions
FaceHandle	add_face (std::vector< HalfEdgeHandle > _halfedges, bool _topologyCheck=false) override
	Add face via incident edges.

FaceHandle	add_face (const std::vector< VertexHandle > &_vertices) override
	Add face via incident vertices.

CellHandle	add_cell (std::vector< HalfFaceHandle > _halffaces, bool _topologyCheck=false) override
	Add cell via incident halffaces.

CellHandle	add_cell (const std::vector< VertexHandle > &_vertices, bool _topologyCheck=false)

CellHandle	add_cell (VertexHandle _vh0, VertexHandle _vh1, VertexHandle _vh2, VertexHandle _vh3, bool _topologyCheck=false)

HalfFaceHandle	add_halfface (const std::vector< HalfEdgeHandle > &_halfedges, bool _topologyCheck=false)

HalfFaceHandle	add_halfface (VertexHandle _vh0, VertexHandle _vh1, VertexHandle _vh2, bool _topologyCheck=false)

HalfEdgeHandle	add_halfedge (VertexHandle _fromVertex, VertexHandle _toVertex)

std::vector< VertexHandle >	get_cell_vertices (CellHandle ch) const

std::vector< VertexHandle >	get_cell_vertices (CellHandle ch, VertexHandle vh) const
	Get the 4 vertices of the tet ch in a specific order, starting with vh.

std::vector< VertexHandle >	get_cell_vertices (HalfFaceHandle hfh) const

std::vector< VertexHandle >	get_cell_vertices (HalfFaceHandle hfh, HalfEdgeHandle heh) const

VertexHandle	halfface_opposite_vertex (HalfFaceHandle hfh) const

HalfFaceHandle	vertex_opposite_halfface (CellHandle ch, VertexHandle vh) const
	Get the first halfface of the tet ch that does not contain the vertex vh.

VertexHandle	collapse_edge (HalfEdgeHandle _heh)

TetVertexIter	tv_iter (CellHandle _ref_h, int _max_laps=1) const

std::pair< TetVertexIter, TetVertexIter >	tet_vertices (CellHandle _ref_h, int _max_laps=1) const

Public Member Functions inherited from OpenVolumeMesh::TopologyKernel
	TopologyKernel (TopologyKernel const &other)=default

	TopologyKernel (TopologyKernel &&other)=delete

TopologyKernel &	operator= (TopologyKernel const &other)=default

TopologyKernel &	operator= (TopologyKernel &&other)=delete

VertexVertexIter	vv_iter (VertexHandle _h, int _max_laps=1) const

std::pair< VertexVertexIter, VertexVertexIter >	vertex_vertices (VertexHandle _h, int _max_laps=1) const

VertexOHalfEdgeIter	voh_iter (VertexHandle _h, int _max_laps=1) const

std::pair< VertexOHalfEdgeIter, VertexOHalfEdgeIter >	outgoing_halfedges (VertexHandle _h, int _max_laps=1) const

VertexIHalfEdgeIter	vih_iter (VertexHandle _h, int _max_laps=1) const

std::pair< VertexIHalfEdgeIter, VertexIHalfEdgeIter >	incoming_halfedges (VertexHandle _h, int _max_laps=1) const

VertexEdgeIter	ve_iter (VertexHandle _h, int _max_laps=1) const

std::pair< VertexEdgeIter, VertexEdgeIter >	vertex_edges (VertexHandle _h, int _max_laps=1) const

VertexHalfFaceIter	vhf_iter (VertexHandle _h, int _max_laps=1) const

std::pair< VertexHalfFaceIter, VertexHalfFaceIter >	vertex_halffaces (VertexHandle _h, int _max_laps=1) const

VertexFaceIter	vf_iter (VertexHandle _h, int _max_laps=1) const

std::pair< VertexFaceIter, VertexFaceIter >	vertex_faces (VertexHandle _h, int _max_laps=1) const

VertexCellIter	vc_iter (VertexHandle _h, int _max_laps=1) const

std::pair< VertexCellIter, VertexCellIter >	vertex_cells (VertexHandle _h, int _max_laps=1) const

HalfEdgeHalfFaceIter	hehf_iter (HalfEdgeHandle _h, int _max_laps=1) const

std::pair< HalfEdgeHalfFaceIter, HalfEdgeHalfFaceIter >	halfedge_halffaces (HalfEdgeHandle _h, int _max_laps=1) const

HalfEdgeFaceIter	hef_iter (HalfEdgeHandle _h, int _max_laps=1) const

std::pair< HalfEdgeFaceIter, HalfEdgeFaceIter >	halfedge_faces (HalfEdgeHandle _h, int _max_laps=1) const

HalfEdgeCellIter	hec_iter (HalfEdgeHandle _h, int _max_laps=1) const

std::pair< HalfEdgeCellIter, HalfEdgeCellIter >	halfedge_cells (HalfEdgeHandle _h, int _max_laps=1) const

EdgeHalfFaceIter	ehf_iter (EdgeHandle _h, int _max_laps=1) const

std::pair< EdgeHalfFaceIter, EdgeHalfFaceIter >	edge_halffaces (EdgeHandle _h, int _max_laps=1) const

EdgeFaceIter	ef_iter (EdgeHandle _h, int _max_laps=1) const

std::pair< EdgeFaceIter, EdgeFaceIter >	edge_faces (EdgeHandle _h, int _max_laps=1) const

EdgeCellIter	ec_iter (EdgeHandle _h, int _max_laps=1) const

std::pair< EdgeCellIter, EdgeCellIter >	edge_cells (EdgeHandle _h, int _max_laps=1) const

HalfFaceHalfEdgeIter	hfhe_iter (HalfFaceHandle _h, int _max_laps=1) const

std::pair< HalfFaceHalfEdgeIter, HalfFaceHalfEdgeIter >	halfface_halfedges (HalfFaceHandle _h, int _max_laps=1) const

HalfFaceEdgeIter	hfe_iter (HalfFaceHandle _h, int _max_laps=1) const

std::pair< HalfFaceEdgeIter, HalfFaceEdgeIter >	halfface_edges (HalfFaceHandle _h, int _max_laps=1) const

FaceVertexIter	fv_iter (FaceHandle _h, int _max_laps=1) const

std::pair< FaceVertexIter, FaceVertexIter >	face_vertices (FaceHandle _h, int _max_laps=1) const

FaceHalfEdgeIter	fhe_iter (FaceHandle _h, int _max_laps=1) const

std::pair< FaceHalfEdgeIter, FaceHalfEdgeIter >	face_halfedges (FaceHandle _h, int _max_laps=1) const

FaceEdgeIter	fe_iter (FaceHandle _h, int _max_laps=1) const

std::pair< FaceEdgeIter, FaceEdgeIter >	face_edges (FaceHandle _h, int _max_laps=1) const

CellVertexIter	cv_iter (CellHandle _h, int _max_laps=1) const

std::pair< CellVertexIter, CellVertexIter >	cell_vertices (CellHandle _h, int _max_laps=1) const

CellHalfEdgeIter	che_iter (CellHandle _h, int _max_laps=1) const

std::pair< CellHalfEdgeIter, CellHalfEdgeIter >	cell_halfedges (CellHandle _h, int _max_laps=1) const

CellEdgeIter	ce_iter (CellHandle _h, int _max_laps=1) const

std::pair< CellEdgeIter, CellEdgeIter >	cell_edges (CellHandle _h, int _max_laps=1) const

CellHalfFaceIter	chf_iter (CellHandle _h, int _max_laps=1) const

std::pair< CellHalfFaceIter, CellHalfFaceIter >	cell_halffaces (CellHandle _h, int _max_laps=1) const

CellFaceIter	cf_iter (CellHandle _h, int _max_laps=1) const

std::pair< CellFaceIter, CellFaceIter >	cell_faces (CellHandle _h, int _max_laps=1) const

CellCellIter	cc_iter (CellHandle _h, int _max_laps=1) const

std::pair< CellCellIter, CellCellIter >	cell_cells (CellHandle _h, int _max_laps=1) const

HalfFaceVertexIter	hfv_iter (HalfFaceHandle _h, int _max_laps=1) const

std::pair< HalfFaceVertexIter, HalfFaceVertexIter >	halfface_vertices (HalfFaceHandle _h, int _max_laps=1) const

BoundaryHalfFaceHalfFaceIter	bhfhf_iter (HalfFaceHandle _ref_h, int _max_laps=1) const

std::pair< BoundaryHalfFaceHalfFaceIter, BoundaryHalfFaceHalfFaceIter >	boundary_halfface_halffaces (HalfFaceHandle _h, int _max_laps=1) const

BoundaryVertexIter	bv_iter () const

BoundaryHalfEdgeIter	bhe_iter () const

BoundaryEdgeIter	be_iter () const

BoundaryHalfFaceIter	bhf_iter () const

BoundaryFaceIter	bf_iter () const

BoundaryCellIter	bc_iter () const

VertexIter	v_iter () const

VertexIter	vertices_begin () const

VertexIter	vertices_end () const

std::pair< VertexIter, VertexIter >	vertices () const

EdgeIter	e_iter () const

EdgeIter	edges_begin () const

EdgeIter	edges_end () const

std::pair< EdgeIter, EdgeIter >	edges () const

HalfEdgeIter	he_iter () const

HalfEdgeIter	halfedges_begin () const

HalfEdgeIter	halfedges_end () const

std::pair< HalfEdgeIter, HalfEdgeIter >	halfedges () const

FaceIter	f_iter () const

FaceIter	faces_begin () const

FaceIter	faces_end () const

std::pair< FaceIter, FaceIter >	faces () const

HalfFaceIter	hf_iter () const

HalfFaceIter	halffaces_begin () const

HalfFaceIter	halffaces_end () const

std::pair< HalfFaceIter, HalfFaceIter >	halffaces () const

CellIter	c_iter () const

CellIter	cells_begin () const

CellIter	cells_end () const

std::pair< CellIter, CellIter >	cells () const

std::array< VertexHandle, 2 >	halfedge_vertices (HalfEdgeHandle _h) const

std::array< VertexHandle, 2 >	edge_vertices (EdgeHandle _h) const

std::array< HalfEdgeHandle, 2 >	edge_halfedges (EdgeHandle _h) const

std::array< HalfFaceHandle, 2 >	face_halffaces (FaceHandle _h) const

std::array< CellHandle, 2 >	face_cells (FaceHandle _h) const

size_t	n_vertices () const override
	Get number of vertices in mesh.

size_t	n_edges () const override
	Get number of edges in mesh.

size_t	n_halfedges () const override
	Get number of halfedges in mesh.

size_t	n_faces () const override
	Get number of faces in mesh.

size_t	n_halffaces () const override
	Get number of halffaces in mesh.

size_t	n_cells () const override
	Get number of cells in mesh.

size_t	n_logical_vertices () const
	Get number of undeleted vertices in mesh.

size_t	n_logical_edges () const
	Get number of undeleted edges in mesh.

size_t	n_logical_halfedges () const
	Get number of undeleted halfedges in mesh.

size_t	n_logical_faces () const
	Get number of undeleted faces in mesh.

size_t	n_logical_halffaces () const
	Get number of undeleted halffaces in mesh.

size_t	n_logical_cells () const
	Get number of undeleted cells in mesh.

int	genus () const

void	add_n_vertices (size_t n)

void	reserve_vertices (size_t n)

void	reserve_edges (size_t n)

void	reserve_faces (size_t n)

void	reserve_cells (size_t n)

virtual VertexHandle	add_vertex ()
	Add abstract vertex.

virtual EdgeHandle	add_edge (VertexHandle _fromVertex, VertexHandle _toHandle, bool _allowDuplicates=false)
	Add edge.

void	set_edge (EdgeHandle _eh, VertexHandle _fromVertex, VertexHandle _toVertex)
	Set the vertices of an edge.

void	set_face (FaceHandle _fh, const std::vector< HalfEdgeHandle > &_hes)
	Set the half-edges of a face.

void	set_cell (CellHandle _ch, const std::vector< HalfFaceHandle > &_hfs)
	Set the half-faces of a cell.

void	reorder_incident_halffaces (EdgeHandle _eh)
	Recompute cyclic ordering of (half)faces incident to an edge (used by iterators)

const Edge &	edge (EdgeHandle _edgeHandle) const
	Get edge with handle _edgeHandle.

const Face &	face (FaceHandle _faceHandle) const
	Get face with handle _faceHandle.

const Cell &	cell (CellHandle _cellHandle) const
	Get cell with handle _cellHandle.

Edge &	edge (EdgeHandle _edgeHandle)
	Get edge with handle _edgeHandle.

Face &	face (FaceHandle _faceHandle)
	Get face with handle _faceHandle.

Cell &	cell (CellHandle _cellHandle)
	Get cell with handle _cellHandle.

Edge	halfedge (HalfEdgeHandle _halfEdgeHandle) const
	Get edge that corresponds to halfedge with handle _halfEdgeHandle.

Face	halfface (HalfFaceHandle _halfFaceHandle) const
	Get face that corresponds to halfface with handle _halfFaceHandle.

Edge	opposite_halfedge (HalfEdgeHandle _halfEdgeHandle) const
	Get opposite halfedge that corresponds to halfedge with handle _halfEdgeHandle.

Face	opposite_halfface (HalfFaceHandle _halfFaceHandle) const
	Get opposite halfface that corresponds to halfface with handle _halfFaceHandle.

HalfEdgeHandle	find_halfedge (VertexHandle _vh1, VertexHandle _vh2) const
	Get halfedge from vertex _vh1 to _vh2.

HalfEdgeHandle	halfedge (VertexHandle _vh1, VertexHandle _vh2) const

HalfEdgeHandle	find_halfedge_in_cell (VertexHandle _vh1, VertexHandle _vh2, CellHandle _ch) const
	Get halfedge from vertex _vh1 to _vh2 but restricted to halfedges of cell _ch.

HalfFaceHandle	find_halfface (const std::vector< VertexHandle > &_vs) const

HalfFaceHandle	halfface (const std::vector< VertexHandle > &_vs) const

HalfFaceHandle	find_halfface_in_cell (const std::vector< VertexHandle > &_vs, CellHandle _ch) const

HalfFaceHandle	find_halfface_extensive (const std::vector< VertexHandle > &_vs) const

HalfFaceHandle	halfface_extensive (const std::vector< VertexHandle > &_vs) const

HalfFaceHandle	find_halfface (const std::vector< HalfEdgeHandle > &_hes) const

HalfFaceHandle	halfface (const std::vector< HalfEdgeHandle > &_hes) const

HalfEdgeHandle	next_halfedge_in_halfface (HalfEdgeHandle _heh, HalfFaceHandle _hfh) const
	Get next halfedge within a halfface.

HalfEdgeHandle	prev_halfedge_in_halfface (HalfEdgeHandle _heh, HalfFaceHandle _hfh) const
	Get previous halfedge within a halfface.

VertexHandle	from_vertex_handle (HalfEdgeHandle _h) const
	Get the vertex the halfedge starts from.

VertexHandle	to_vertex_handle (HalfEdgeHandle _h) const
	Get the vertex the halfedge points to.

size_t	valence (VertexHandle _vh) const
	Get valence of vertex (number of incident edges)

size_t	valence (EdgeHandle _eh) const
	Get valence of edge (number of incident faces)

size_t	valence (FaceHandle _fh) const
	Get valence of face (number of incident edges)

size_t	valence (CellHandle _ch) const
	Get valence of cell (number of incident faces)

std::vector< VertexHandle >	get_halfface_vertices (HalfFaceHandle hfh) const
	Get vertices of a halfface.

std::vector< VertexHandle >	get_halfface_vertices (HalfFaceHandle hfh, VertexHandle vh) const
	Get vertices of a halfface orderd to start from vh.

std::vector< VertexHandle >	get_halfface_vertices (HalfFaceHandle hfh, HalfEdgeHandle heh) const
	Get vertices of a halfface orderd to start from from_vertex_handle(heh)

bool	is_incident (FaceHandle _fh, EdgeHandle _eh) const
	check whether face _fh and edge _eh are incident

virtual VertexIter	delete_vertex (VertexHandle _h)
	Delete vertex from mesh.

virtual EdgeIter	delete_edge (EdgeHandle _h)
	Delete edge from mesh.

virtual FaceIter	delete_face (FaceHandle _h)
	Delete face from mesh.

virtual CellIter	delete_cell (CellHandle _h)
	Delete cell from mesh.

virtual void	collect_garbage ()
	Delete all entities that are marked as deleted.

virtual bool	is_deleted (VertexHandle _h) const

virtual bool	is_deleted (EdgeHandle _h) const

virtual bool	is_deleted (HalfEdgeHandle _h) const

virtual bool	is_deleted (FaceHandle _h) const

virtual bool	is_deleted (HalfFaceHandle _h) const

virtual bool	is_deleted (CellHandle _h) const

virtual void	swap_cell_indices (CellHandle _h1, CellHandle _h2)
	Exchanges the indices of two cells while keeping the mesh otherwise unaffected.

virtual void	swap_face_indices (FaceHandle _h1, FaceHandle _h2)
	Exchanges the indices of two faces while keeping the mesh otherwise unaffected.

virtual void	swap_edge_indices (EdgeHandle _h1, EdgeHandle _h2)
	Exchanges the indices of two edges while keeping the mesh otherwise unaffected.

virtual void	swap_vertex_indices (VertexHandle _h1, VertexHandle _h2)
	Exchanges the indices of two vertices while keeping the mesh otherwise unaffected.

virtual void	clear (bool _clearProps=true)
	Clear whole mesh.

void	enable_bottom_up_incidences (bool _enable=true)

void	enable_vertex_bottom_up_incidences (bool _enable=true)

void	enable_edge_bottom_up_incidences (bool _enable=true)

void	enable_face_bottom_up_incidences (bool _enable=true)

bool	has_full_bottom_up_incidences () const

bool	has_vertex_bottom_up_incidences () const

bool	has_edge_bottom_up_incidences () const

bool	has_face_bottom_up_incidences () const

void	enable_deferred_deletion (bool _enable=true)

bool	deferred_deletion_enabled () const

void	enable_fast_deletion (bool _enable=true)

bool	fast_deletion_enabled () const

HalfFaceHandle	adjacent_halfface_in_cell (HalfFaceHandle _halfFaceHandle, HalfEdgeHandle _halfEdgeHandle) const
	Get halfface that is adjacent (w.r.t. a common halfedge) within the same cell. It correctly handles self-adjacent cells where the halfedge orientation matters. For legacy reasons the halfedge orientation can be arbitrary if there are no self-adjacencies in the cell.

CellHandle	incident_cell (HalfFaceHandle _halfFaceHandle) const
	Get cell that is incident to the given halfface.

bool	is_boundary (HalfFaceHandle _halfFaceHandle) const

bool	is_boundary (FaceHandle _faceHandle) const

bool	is_boundary (EdgeHandle _edgeHandle) const

bool	is_boundary (HalfEdgeHandle _halfedgeHandle) const

bool	is_boundary (VertexHandle _vertexHandle) const

bool	is_boundary (CellHandle _cellHandle) const

size_t	n_vertices_in_cell (CellHandle _ch) const

Edge	opposite_halfedge (const Edge &_edge) const

Face	opposite_halfface (const Face &_face) const

bool	needs_garbage_collection () const

template<typename Handle >
bool	is_valid (Handle _h) const
	test is_valid and perform index range check

Public Member Functions inherited from OpenVolumeMesh::ResourceManager
	ResourceManager (const ResourceManager &other)

ResourceManager &	operator= (const ResourceManager &other)

	ResourceManager (ResourceManager &&other)=delete

ResourceManager &	operator= (ResourceManager &&other)=delete

void	clear_all_props ()
	drop all persistent properties.

template<typename EntityTag >
void	clear_props ()
	drop persistent properties.

template<typename EntityTag >
size_t	n () const
	Get number of entities of given kind in mesh.

template<typename EntityTag >
size_t	n_props () const
	number of tracked properties

template<typename EntityTag >
size_t	n_persistent_props () const
	number of persistent properties

template<typename T , typename EntityTag >
PropertyPtr< T, EntityTag >	request_property (const std::string &_name=std::string(), const T &_def=T())

template<typename T , typename EntityTag >
std::optional< PropertyPtr< T, EntityTag > >	create_property (std::string _name=std::string(), const T &_def=T())

template<typename T , typename EntityTag >
std::optional< PropertyPtr< T, EntityTag > >	create_shared_property (std::string _name, const T &_def=T())

template<typename T , typename EntityTag >
std::optional< PropertyPtr< T, EntityTag > >	create_persistent_property (std::string _name, const T &_def=T())

template<typename T , typename EntityTag >
PropertyPtr< T, EntityTag >	create_private_property (std::string _name={}, const T &_def=T()) const

template<typename T , typename EntityTag >
std::optional< PropertyPtr< T, EntityTag > >	get_property (const std::string &_name)

template<typename T , typename EntityTag >
std::optional< const PropertyPtr< T, EntityTag > >	get_property (const std::string &_name) const

template<typename T , typename EntityTag >
bool	property_exists (const std::string &_name) const

template<typename T , class EntityTag >
void	set_persistent (PropertyPtr< T, EntityTag > &_prop, bool _enable=true)

template<typename T , class EntityTag >
void	set_shared (PropertyPtr< T, EntityTag > &_prop, bool _enable=true)

template<typename EntityTag >
PropertyIterator< PersistentProperties::const_iterator >	persistent_props_begin () const

template<typename EntityTag >
PropertyIterator< PersistentProperties::const_iterator >	persistent_props_end () const

void	clear_vertex_props ()
	convenience functions:

void	clear_edge_props ()

void	clear_halfedge_props ()

void	clear_face_props ()

void	clear_halfface_props ()

void	clear_cell_props ()

void	clear_mesh_props ()

template<class T >
VertexPropertyT< T >	request_vertex_property (const std::string &_name=std::string(), const T &_def=T())

template<class T >
EdgePropertyT< T >	request_edge_property (const std::string &_name=std::string(), const T &_def=T())

template<class T >
HalfEdgePropertyT< T >	request_halfedge_property (const std::string &_name=std::string(), const T &_def=T())

template<class T >
FacePropertyT< T >	request_face_property (const std::string &_name=std::string(), const T &_def=T())

template<class T >
HalfFacePropertyT< T >	request_halfface_property (const std::string &_name=std::string(), const T &_def=T())

template<class T >
CellPropertyT< T >	request_cell_property (const std::string &_name=std::string(), const T &_def=T())

template<class T >
MeshPropertyT< T >	request_mesh_property (const std::string &_name=std::string(), const T &_def=T())

size_t	n_vertex_props () const

auto	vertex_props_begin () const

auto	vertex_props_end () const

template<typename T >
std::optional< VertexPropertyPtr< T > >	create_shared_vertex_property (std::string _name, const T _def=T())

template<typename T >
std::optional< VertexPropertyPtr< T > >	create_persistent_vertex_property (std::string _name, const T _def=T())

template<typename T >
VertexPropertyPtr< T >	create_private_vertex_property (std::string _name={}, const T _def=T()) const

template<typename T >
std::optional< VertexPropertyPtr< T > >	get_vertex_property (const std::string &_name)

template<typename T >
std::optional< const VertexPropertyPtr< T > >	get_vertex_property (const std::string &_name) const

template<class T >
bool	vertex_property_exists (const std::string &_name) const

size_t	n_edge_props () const

auto	edge_props_begin () const

auto	edge_props_end () const

template<typename T >
std::optional< EdgePropertyPtr< T > >	create_shared_edge_property (std::string _name, const T _def=T())

template<typename T >
std::optional< EdgePropertyPtr< T > >	create_persistent_edge_property (std::string _name, const T _def=T())

template<typename T >
EdgePropertyPtr< T >	create_private_edge_property (std::string _name={}, const T _def=T()) const

template<typename T >
std::optional< EdgePropertyPtr< T > >	get_edge_property (const std::string &_name)

template<typename T >
std::optional< const EdgePropertyPtr< T > >	get_edge_property (const std::string &_name) const

template<class T >
bool	edge_property_exists (const std::string &_name) const

size_t	n_halfedge_props () const

auto	halfedge_props_begin () const

auto	halfedge_props_end () const

template<typename T >
std::optional< HalfEdgePropertyPtr< T > >	create_shared_halfedge_property (std::string _name, const T _def=T())

template<typename T >
std::optional< HalfEdgePropertyPtr< T > >	create_persistent_halfedge_property (std::string _name, const T _def=T())

template<typename T >
HalfEdgePropertyPtr< T >	create_private_halfedge_property (std::string _name={}, const T _def=T()) const

template<typename T >
std::optional< HalfEdgePropertyPtr< T > >	get_halfedge_property (const std::string &_name)

template<typename T >
std::optional< const HalfEdgePropertyPtr< T > >	get_halfedge_property (const std::string &_name) const

template<class T >
bool	halfedge_property_exists (const std::string &_name) const

size_t	n_face_props () const

auto	face_props_begin () const

auto	face_props_end () const

template<typename T >
std::optional< FacePropertyPtr< T > >	create_shared_face_property (std::string _name, const T _def=T())

template<typename T >
std::optional< FacePropertyPtr< T > >	create_persistent_face_property (std::string _name, const T _def=T())

template<typename T >
FacePropertyPtr< T >	create_private_face_property (std::string _name={}, const T _def=T()) const

template<typename T >
std::optional< FacePropertyPtr< T > >	get_face_property (const std::string &_name)

template<typename T >
std::optional< const FacePropertyPtr< T > >	get_face_property (const std::string &_name) const

template<class T >
bool	face_property_exists (const std::string &_name) const

size_t	n_halfface_props () const

auto	halfface_props_begin () const

auto	halfface_props_end () const

template<typename T >
std::optional< HalfFacePropertyPtr< T > >	create_shared_halfface_property (std::string _name, const T _def=T())

template<typename T >
std::optional< HalfFacePropertyPtr< T > >	create_persistent_halfface_property (std::string _name, const T _def=T())

template<typename T >
HalfFacePropertyPtr< T >	create_private_halfface_property (std::string _name={}, const T _def=T()) const

template<typename T >
std::optional< HalfFacePropertyPtr< T > >	get_halfface_property (const std::string &_name)

template<typename T >
std::optional< const HalfFacePropertyPtr< T > >	get_halfface_property (const std::string &_name) const

template<class T >
bool	halfface_property_exists (const std::string &_name) const

size_t	n_cell_props () const

auto	cell_props_begin () const

auto	cell_props_end () const

template<typename T >
std::optional< CellPropertyPtr< T > >	create_shared_cell_property (std::string _name, const T _def=T())

template<typename T >
std::optional< CellPropertyPtr< T > >	create_persistent_cell_property (std::string _name, const T _def=T())

template<typename T >
CellPropertyPtr< T >	create_private_cell_property (std::string _name={}, const T _def=T()) const

template<typename T >
std::optional< CellPropertyPtr< T > >	get_cell_property (const std::string &_name)

template<typename T >
std::optional< const CellPropertyPtr< T > >	get_cell_property (const std::string &_name) const

template<class T >
bool	cell_property_exists (const std::string &_name) const

Protected Member Functions
void	split_edge (HalfEdgeHandle _heh, VertexHandle _vh)

void	split_face (FaceHandle _fh, VertexHandle _vh)

Protected Member Functions inherited from OpenVolumeMesh::TopologyKernel
void	compute_vertex_bottom_up_incidences ()

void	compute_edge_bottom_up_incidences ()

void	compute_face_bottom_up_incidences ()

Protected Member Functions inherited from OpenVolumeMesh::ResourceManager
template<typename EntityTag >
detail::Tracker< PropertyStorageBase > &	storage_tracker () const

detail::Tracker< PropertyStorageBase > &	storage_tracker (EntityType type) const

void	resize_vprops (size_t _nv)
	Change size of stored vertex properties.

void	resize_eprops (size_t _ne)
	Change size of stored edge properties.

void	resize_fprops (size_t _nf)
	Change size of stored face properties.

void	resize_cprops (size_t _nc)
	Change size of stored cell properties.

void	reserve_vprops (size_t n)

void	reserve_eprops (size_t n)

void	reserve_fprops (size_t n)

void	reserve_cprops (size_t n)

void	vertex_deleted (const VertexHandle &_h)

void	edge_deleted (const EdgeHandle &_h)

void	face_deleted (const FaceHandle &_h)

void	cell_deleted (const CellHandle &_h)

template<typename Handle >
void	swap_property_elements (Handle _idx_a, Handle _idx_b)

template<typename Handle >
void	copy_property_elements (Handle _idx_a, Handle _idx_b)

Private Member Functions
template<typename PropIterator , typename Handle >
void	swapPropertyElements (PropIterator begin, PropIterator end, Handle source, Handle destination)

Friends
class	TetVertexIter

Additional Inherited Members
Static Public Member Functions inherited from OpenVolumeMesh::TopologyKernel
static HalfEdgeHandle	halfedge_handle (EdgeHandle _h, const unsigned char _subIdx)
	Conversion function.

static HalfFaceHandle	halfface_handle (FaceHandle _h, const unsigned char _subIdx)
	Conversion function.

static EdgeHandle	edge_handle (HalfEdgeHandle _h)
	Handle conversion.

static FaceHandle	face_handle (HalfFaceHandle _h)

static HalfEdgeHandle	opposite_halfedge_handle (HalfEdgeHandle _h)

static HalfFaceHandle	opposite_halfface_handle (HalfFaceHandle _h)

Static Public Attributes inherited from OpenVolumeMesh::TopologyKernel
static const VertexHandle	InvalidVertexHandle = VertexHandle(-1)

static const EdgeHandle	InvalidEdgeHandle = EdgeHandle(-1)

static const FaceHandle	InvalidFaceHandle = FaceHandle(-1)

static const CellHandle	InvalidCellHandle = CellHandle(-1)

static const HalfEdgeHandle	InvalidHalfEdgeHandle = HalfEdgeHandle(-1)

static const HalfFaceHandle	InvalidHalfFaceHandle = HalfFaceHandle(-1)

Static Protected Member Functions inherited from OpenVolumeMesh::TopologyKernel
template<class Circulator >
static Circulator	make_end_circulator (const Circulator &_circ)

Protected Attributes inherited from OpenVolumeMesh::TopologyKernel
VertexVector< std::vector< HalfEdgeHandle > >	outgoing_hes_per_vertex_

HalfEdgeVector< std::vector< HalfFaceHandle > >	incident_hfs_per_he_

HalfFaceVector< CellHandle >	incident_cell_per_hf_

Protected Attributes inherited from OpenVolumeMesh::ResourceManager
PerEntity< detail::Tracker< PropertyStorageBase > >	storage_trackers_

Detailed Description

A data structure based on PolyhedralMesh with specializations for tetrahedra.

Definition at line 55 of file TetrahedralMeshTopologyKernel.hh.

Member Typedef Documentation

◆ TetVertexIter

typedef class TetVertexIter OpenVolumeMesh::TetrahedralMeshTopologyKernel::TetVertexIter

Definition at line 115 of file TetrahedralMeshTopologyKernel.hh.

Member Function Documentation

◆ add_cell() [1/3]

CellHandle OpenVolumeMesh::TetrahedralMeshTopologyKernel::add_cell	(	const std::vector< VertexHandle > &	_vertices,
		bool	_topologyCheck = `false`
	)

Definition at line 573 of file TetrahedralMeshTopologyKernel.cc.

◆ add_cell() [2/3]

CellHandle OpenVolumeMesh::TetrahedralMeshTopologyKernel::add_cell	(	std::vector< HalfFaceHandle >	_halffaces,
		bool	_topologyCheck = `false`
	)

overridevirtual

Add cell via incident halffaces.

Add cell via incident halffaces

Returns: Handle of the new cell, InvalidCellHandle if _topologyCheck is true and _halffaces are not connected.

Warning: If _halffaces are not connected and _topologyCheck is false, the behavior is undefined.

Reimplemented from OpenVolumeMesh::TopologyKernel.

Definition at line 75 of file TetrahedralMeshTopologyKernel.cc.

◆ add_cell() [3/3]

CellHandle OpenVolumeMesh::TetrahedralMeshTopologyKernel::add_cell	(	VertexHandle	_vh0,
		VertexHandle	_vh1,
		VertexHandle	_vh2,
		VertexHandle	_vh3,
		bool	_topologyCheck = `false`
	)

Definition at line 694 of file TetrahedralMeshTopologyKernel.cc.

◆ add_face() [1/2]

FaceHandle OpenVolumeMesh::TetrahedralMeshTopologyKernel::add_face ( const std::vector< VertexHandle > & _vertices )

overridevirtual

Add face via incident vertices.

Add face via incident vertices Define the _vertices in counter-clockwise order (from the "outside")

Reimplemented from OpenVolumeMesh::TopologyKernel.

Definition at line 58 of file TetrahedralMeshTopologyKernel.cc.

◆ add_face() [2/2]

FaceHandle OpenVolumeMesh::TetrahedralMeshTopologyKernel::add_face	(	std::vector< HalfEdgeHandle >	_halfedges,
		bool	_topologyCheck = `false`
	)

overridevirtual

Add face via incident edges.

Add face via incident edges

Returns: Handle of the new face, InvalidFaceHandle if _halfedges are not connected and _topologyCheck is true.

Warning: If _halfedges are not connected or not in the right order and _topologyCheck is false, the behavior is undefined.

Reimplemented from OpenVolumeMesh::TopologyKernel.

Definition at line 41 of file TetrahedralMeshTopologyKernel.cc.

◆ add_halfedge()

HalfEdgeHandle OpenVolumeMesh::TetrahedralMeshTopologyKernel::add_halfedge	(	VertexHandle	_fromVertex,
		VertexHandle	_toVertex
	)

Definition at line 98 of file TetrahedralMeshTopologyKernel.cc.

◆ add_halfface() [1/2]

HalfFaceHandle OpenVolumeMesh::TetrahedralMeshTopologyKernel::add_halfface	(	const std::vector< HalfEdgeHandle > &	_halfedges,
		bool	_topologyCheck = `false`
	)

Definition at line 107 of file TetrahedralMeshTopologyKernel.cc.

◆ add_halfface() [2/2]

HalfFaceHandle OpenVolumeMesh::TetrahedralMeshTopologyKernel::add_halfface	(	VertexHandle	_vh0,
		VertexHandle	_vh1,
		VertexHandle	_vh2,
		bool	_topologyCheck = `false`
	)

Definition at line 116 of file TetrahedralMeshTopologyKernel.cc.

◆ collapse_edge()

VertexHandle OpenVolumeMesh::TetrahedralMeshTopologyKernel::collapse_edge ( HalfEdgeHandle _heh )

Definition at line 311 of file TetrahedralMeshTopologyKernel.cc.

◆ get_cell_vertices() [1/4]

std::vector< VertexHandle > OpenVolumeMesh::TetrahedralMeshTopologyKernel::get_cell_vertices ( CellHandle ch ) const

Get the 4 vertices of the tet ch in a specific order: 1.-3. vertices of ch's first halfface, ccw, starting with the first from_vertex of the halfface's first halfedge. 4. Then comes the 4th vertex of the tet.

Definition at line 486 of file TetrahedralMeshTopologyKernel.cc.

◆ get_cell_vertices() [2/4]

std::vector< VertexHandle > OpenVolumeMesh::TetrahedralMeshTopologyKernel::get_cell_vertices	(	CellHandle	ch,
		VertexHandle	vh
	)		const

Get the 4 vertices of the tet ch in a specific order, starting with vh.

Definition at line 491 of file TetrahedralMeshTopologyKernel.cc.

◆ get_cell_vertices() [3/4]

std::vector< VertexHandle > OpenVolumeMesh::TetrahedralMeshTopologyKernel::get_cell_vertices ( HalfFaceHandle hfh ) const

Get the 4 vertices of hfh's incident cell in a specific order: 1.-3. vertices of hfh, ccw, starting with the first from_vertex of the halfface's first halfedge. 4. Then comes the 4th vertex of the tet. Returns an empty vector, if the incident cell is invalid (hfh is boundary).

Definition at line 501 of file TetrahedralMeshTopologyKernel.cc.

◆ get_cell_vertices() [4/4]

std::vector< VertexHandle > OpenVolumeMesh::TetrahedralMeshTopologyKernel::get_cell_vertices	(	HalfFaceHandle	hfh,
		HalfEdgeHandle	heh
	)		const

Get the 4 vertices of hfh's incident cell in a specific order:

heh.to_vertex, 2. heh.to_vertex, 3. 3rd vertex of hfh, 4. 4th vertex of the tet. heh is expected to be incident to hfh

Definition at line 532 of file TetrahedralMeshTopologyKernel.cc.

◆ halfface_opposite_vertex()

VertexHandle OpenVolumeMesh::TetrahedralMeshTopologyKernel::halfface_opposite_vertex ( HalfFaceHandle hfh ) const

Get the vertex of the halfface's incident cell that is not contained in the halfface hfh. If the incident cell is invalid (hfh is boundary), returns the invalid vertex handle

Definition at line 551 of file TetrahedralMeshTopologyKernel.cc.

◆ split_edge()

void OpenVolumeMesh::TetrahedralMeshTopologyKernel::split_edge	(	HalfEdgeHandle	_heh,
		VertexHandle	_vh
	)

protected

Definition at line 406 of file TetrahedralMeshTopologyKernel.cc.

◆ split_face()

void OpenVolumeMesh::TetrahedralMeshTopologyKernel::split_face	(	FaceHandle	_fh,
		VertexHandle	_vh
	)

protected

Definition at line 449 of file TetrahedralMeshTopologyKernel.cc.

◆ swapPropertyElements()

template<typename PropIterator , typename Handle >

void OpenVolumeMesh::TetrahedralMeshTopologyKernel::swapPropertyElements	(	PropIterator	begin,
		PropIterator	end,
		Handle	source,
		Handle	destination
	)

inlineprivate

Definition at line 136 of file TetrahedralMeshTopologyKernel.hh.

◆ tet_vertices()

std::pair< TetVertexIter, TetVertexIter > OpenVolumeMesh::TetrahedralMeshTopologyKernel::tet_vertices	(	CellHandle	_ref_h,
		int	_max_laps = `1`
	)		const

inline

Definition at line 125 of file TetrahedralMeshTopologyKernel.hh.

◆ tv_iter()

TetVertexIter OpenVolumeMesh::TetrahedralMeshTopologyKernel::tv_iter	(	CellHandle	_ref_h,
		int	_max_laps = `1`
	)		const

inline

Returns an iterator to iterate over the four vertices of a tetrahedron in a specific order: 1.-3. vertices of the tet's first halfface, starting with the halfface's first halfedge's from_vertex, then 4. the remaining fourth vertex of the tet. Uses get_cell_vertices(ch).

Definition at line 121 of file TetrahedralMeshTopologyKernel.hh.

◆ vertex_opposite_halfface()

HalfFaceHandle OpenVolumeMesh::TetrahedralMeshTopologyKernel::vertex_opposite_halfface	(	CellHandle	ch,
		VertexHandle	vh
	)		const

Get the first halfface of the tet ch that does not contain the vertex vh.

Definition at line 556 of file TetrahedralMeshTopologyKernel.cc.

Friends And Related Symbol Documentation

◆ TetVertexIter

friend class TetVertexIter

friend

Definition at line 113 of file TetrahedralMeshTopologyKernel.hh.

The documentation for this class was generated from the following files:

Type-OpenVolumeMesh/libs/OpenVolumeMesh/src/OpenVolumeMesh/Mesh/TetrahedralMeshTopologyKernel.hh
Type-OpenVolumeMesh/libs/OpenVolumeMesh/src/OpenVolumeMesh/Mesh/TetrahedralMeshTopologyKernel.cc

Public Types

Public Member Functions

Protected Member Functions

Private Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ TetVertexIter

Member Function Documentation

◆ add_cell() [1/3]

◆ add_cell() [2/3]

◆ add_cell() [3/3]

◆ add_face() [1/2]

◆ add_face() [2/2]

◆ add_halfedge()

◆ add_halfface() [1/2]

◆ add_halfface() [2/2]

◆ collapse_edge()

◆ get_cell_vertices() [1/4]

◆ get_cell_vertices() [2/4]

◆ get_cell_vertices() [3/4]

◆ get_cell_vertices() [4/4]

◆ halfface_opposite_vertex()

◆ split_edge()

◆ split_face()

◆ swapPropertyElements()

◆ tet_vertices()

◆ tv_iter()

◆ vertex_opposite_halfface()

Friends And Related Symbol Documentation

◆ TetVertexIter
