This class vizualizes a property. More...

#include <Plugin-PropertyVis/PropertyVisualizer/PropertyVisualizer.hh>

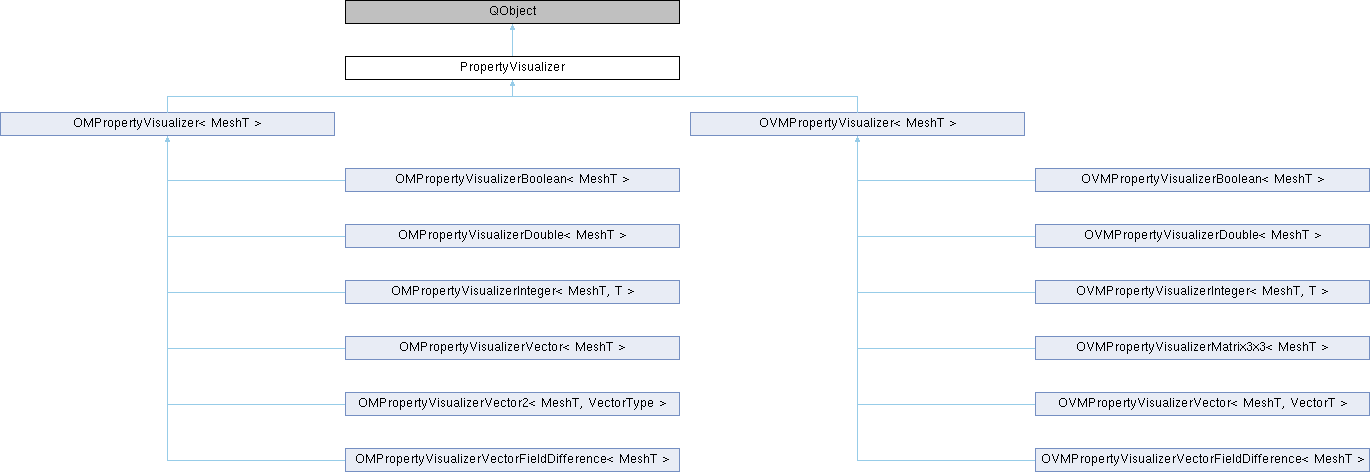

Inheritance diagram for PropertyVisualizer:

Signals
void	log (Logtype _type, QString _message)

void	log (QString _message)

Public Member Functions
	PropertyVisualizer (const PropertyInfo &_propertyInfo)
	Constructor.

virtual	~PropertyVisualizer ()
	Destructor.

virtual void	visualize (bool _setDrawMode, QWidget *_widget)
	Visualizes the property.

virtual void	removeProperty ()
	Removes the property.

virtual void	duplicateProperty ()
	Duplicates the property.

virtual void	clear ()
	Clears the property visualization.

virtual QString	getName ()
	Returns a beautiful name.

virtual QWidget *	getWidget ()
	Returns the visualizer's widget.

const PropertyInfo &	getPropertyInfo () const
	Returns the PropertyInfo.

virtual QString	getPropertyText (unsigned int i)=0
	Returns the value of a property in text form.

virtual void	setPropertyFromText (unsigned int index, QString text)=0
	Returns the value of a property in text form.

virtual int	getEntityCount ()=0
	Returns the number of entities.

virtual QString	getHeader ()=0
	Returns the header for saving.

Static Public Member Functions
static QString	toStr (bool b)

static QString	toStr (double d)

static QString	toStr (int i)

static QString	toStr (uint8_t i)

static QString	toStr (unsigned int i)

static QString	toStr (OpenMesh::Vec3d v)

static QString	toStr (OpenMesh::Vec2d v)

static QString	toStr (OpenMesh::Vec2f v)

static QString	toStr (const ACG::Matrix3x3d &v)

static bool	strToBool (QString str)

static double	strToDouble (QString str)

static int	strToInt (QString str)

static unsigned int	strToUInt (QString str)

static OpenMesh::Vec3d	strToVec3d (QString str)

static OpenMesh::Vec2d	strToVec2d (QString str)

static OpenMesh::Vec2f	strToVec2f (QString str)

template<typename Vec3T >
static Vec3T	strToVec3 (QString str)

Public Attributes
QWidget *	widget

Protected Member Functions
virtual std::unique_ptr< ACG::IColorCoder >	buildColorCoder ()

template<typename PropType , typename Iterable >
void	showHistogramT (ACG::QtWidgets::QtHistogramWidget *widget, Iterable data)

Protected Attributes
PropertyInfo	propertyInfo

Detailed Description

This class vizualizes a property.

For each property one object of this class is created. It is responsible for the visualization of that property. It provides a widget that can be used to set options for the visualization.

Definition at line 77 of file PropertyVisualizer.hh.

Constructor & Destructor Documentation

◆ PropertyVisualizer()

PropertyVisualizer::PropertyVisualizer ( const PropertyInfo & _propertyInfo )

inlineexplicit

Constructor.

Parameters

_propertyInfo Information about the property this visualizer should visualize.

Definition at line 91 of file PropertyVisualizer.hh.

◆ ~PropertyVisualizer()

virtual PropertyVisualizer::~PropertyVisualizer ( )

inlinevirtual

Destructor.

Definition at line 99 of file PropertyVisualizer.hh.

Member Function Documentation

◆ buildColorCoder()

std::unique_ptr< ACG::IColorCoder > PropertyVisualizer::buildColorCoder ( )

protectedvirtual

Definition at line 171 of file PropertyVisualizer.cc.

◆ clear()

void PropertyVisualizer::clear ( )

virtual

Clears the property visualization.

This method should be implemented by a subclass that specializes on clearing property visualizations for a specific object type. This method here only implements a warning which will tell the user that clearing the property visualitaion is not implemented yet for that object type.

Reimplemented in OMPropertyVisualizer< MeshT >, OVMPropertyVisualizer< MeshT >, OMPropertyVisualizerVector< MeshT >, OMPropertyVisualizerVector2< MeshT, VectorType >, OVMPropertyVisualizerMatrix3x3< MeshT >, and OVMPropertyVisualizerVector< MeshT, VectorT >.

Definition at line 90 of file PropertyVisualizer.cc.

◆ duplicateProperty()

void PropertyVisualizer::duplicateProperty ( )

virtual

Duplicates the property.

This method should be implemented by a subclass that specializes on duplicating properties for a specific object type. This method here only implements a warning which will tell the user that removing the property is not implemented yet for that object type.

Reimplemented in OMPropertyVisualizer< MeshT >, OVMPropertyVisualizer< MeshT >, OMPropertyVisualizerBoolean< MeshT >, OMPropertyVisualizerDouble< MeshT >, OMPropertyVisualizerInteger< MeshT, T >, OMPropertyVisualizerVector< MeshT >, OMPropertyVisualizerVector2< MeshT, VectorType >, OMPropertyVisualizerVectorFieldDifference< MeshT >, OVMPropertyVisualizerBoolean< MeshT >, OVMPropertyVisualizerDouble< MeshT >, OVMPropertyVisualizerInteger< MeshT, T >, OVMPropertyVisualizerMatrix3x3< MeshT >, OVMPropertyVisualizerVector< MeshT, VectorT >, and OVMPropertyVisualizerVectorFieldDifference< MeshT >.

Definition at line 78 of file PropertyVisualizer.cc.

◆ getEntityCount()

virtual int PropertyVisualizer::getEntityCount ( )

pure virtual

Returns the number of entities.

Implemented in OMPropertyVisualizer< MeshT >, and OVMPropertyVisualizer< MeshT >.

◆ getHeader()

virtual QString PropertyVisualizer::getHeader ( )

pure virtual

Returns the header for saving.

Implemented in OMPropertyVisualizer< MeshT >, and OVMPropertyVisualizer< MeshT >.

◆ getName()

virtual QString PropertyVisualizer::getName ( )

inlinevirtual

Returns a beautiful name.

The beautiful name consists of a symbol representing the entity type, the property's name and the property's type.

Reimplemented in OMPropertyVisualizerVectorFieldDifference< MeshT >, and OVMPropertyVisualizerVectorFieldDifference< MeshT >.

Definition at line 119 of file PropertyVisualizer.hh.

◆ getPropertyInfo()

const PropertyInfo & PropertyVisualizer::getPropertyInfo ( ) const

inline

Returns the PropertyInfo.

Definition at line 129 of file PropertyVisualizer.hh.

◆ getPropertyText()

virtual QString PropertyVisualizer::getPropertyText ( unsigned int i )

pure virtual

Returns the value of a property in text form.

Parameters

i	The id of the entity whose property we want to know.

Returns: The property value in text form.

Implemented in OMPropertyVisualizer< MeshT >, OMPropertyVisualizerBoolean< MeshT >, OMPropertyVisualizerDouble< MeshT >, OMPropertyVisualizerInteger< MeshT, T >, OMPropertyVisualizerVector< MeshT >, OMPropertyVisualizerVector2< MeshT, VectorType >, OMPropertyVisualizerVectorFieldDifference< MeshT >, OVMPropertyVisualizerBoolean< MeshT >, OVMPropertyVisualizerDouble< MeshT >, OVMPropertyVisualizerInteger< MeshT, T >, OVMPropertyVisualizerMatrix3x3< MeshT >, OVMPropertyVisualizerVector< MeshT, VectorT >, OVMPropertyVisualizerVectorFieldDifference< MeshT >, and OVMPropertyVisualizer< MeshT >.

◆ getWidget()

virtual QWidget * PropertyVisualizer::getWidget ( )

inlinevirtual

Returns the visualizer's widget.

Returns the visualizer's widget that can be used to set some options for the visualization.

Definition at line 126 of file PropertyVisualizer.hh.

◆ removeProperty()

void PropertyVisualizer::removeProperty ( )

virtual

Removes the property.

This method should be implemented by a subclass that specializes on removing properties for a specific object type. This method here only implements a warning which will tell the user that removing the property is not implemented yet for that object type.

Reimplemented in OMPropertyVisualizer< MeshT >, OVMPropertyVisualizer< MeshT >, OMPropertyVisualizerBoolean< MeshT >, OMPropertyVisualizerDouble< MeshT >, OMPropertyVisualizerInteger< MeshT, T >, OMPropertyVisualizerVector< MeshT >, OMPropertyVisualizerVector2< MeshT, VectorType >, and OMPropertyVisualizerVectorFieldDifference< MeshT >.

Definition at line 66 of file PropertyVisualizer.cc.

◆ setPropertyFromText()

virtual void PropertyVisualizer::setPropertyFromText	(	unsigned int	index,
		QString	text
	)

pure virtual

Returns the value of a property in text form.

Parameters

index	The id of the entity whose property should be set.
text	The value in text form.

This method sets the porperty of a given entity by transforming the text into the correct type. This is used when a property is loaded from a file.

Implemented in OMPropertyVisualizer< MeshT >, and OVMPropertyVisualizer< MeshT >.

◆ showHistogramT()

template<typename PropType , typename Iterable >

void PropertyVisualizer::showHistogramT	(	ACG::QtWidgets::QtHistogramWidget *	widget,
		Iterable	data
	)

static

Definition at line 162 of file PropertyVisualizer.cc.

◆ strToVec3()

template<typename Vec3T >

static QString PropertyVisualizer::toStr ( unsigned int i )

inlinestatic

Definition at line 160 of file PropertyVisualizer.hh.

◆ visualize()

void PropertyVisualizer::visualize	(	bool	_setDrawMode,
		QWidget *	_widget
	)

virtual

Visualizes the property.

This method should be implemented by a subclass that specializes on visualizing a specific property type for a specific object type. This method here only implements a warning which will tell the user that visualizing the property for that object type is not implemented yet.

Reimplemented in OMPropertyVisualizer< MeshT >, and OVMPropertyVisualizer< MeshT >.

Definition at line 54 of file PropertyVisualizer.cc.

Member Data Documentation

◆ propertyInfo

PropertyInfo PropertyVisualizer::propertyInfo

protected

Definition at line 189 of file PropertyVisualizer.hh.

◆ widget

QWidget* PropertyVisualizer::widget

Definition at line 192 of file PropertyVisualizer.hh.

The documentation for this class was generated from the following files:

Plugin-PropertyVis/PropertyVisualizer/PropertyVisualizer.hh
Plugin-PropertyVis/PropertyVisualizer/PropertyVisualizer.cc
