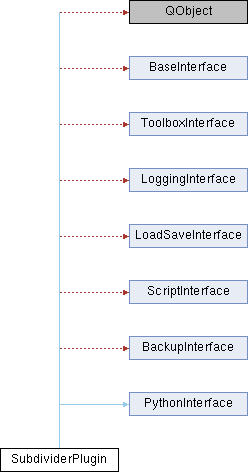

Inheritance diagram for SubdividerPlugin:

Public Slots
void	subdivide (int _objectId, QString _algorithm, int _steps, bool _update_points=true)
	Scripting slot for subdivision.

void	simpleSubdivide (int _objectId, QString _algorithm, int _steps, double _parameter, bool _update_points=true)
	Scripting slot for the simple subdivision algorithms.

QString	version ()

Signals
void	updateView ()

void	updatedObject (int _id, const UpdateType &_type)

void	addPickMode (const std::string &_mode)

void	log (Logtype _type, QString _message)

void	log (QString _message)

void	addEmptyObject (DataType _type, int &_id)

void	defineViewMode (QString _mode, QStringList _usedWidgets)

void	addToolbox (QString _name, QWidget _widget, QIcon _icon)

void	createBackup (int _id, QString _name, UpdateType _type=UPDATE_ALL)

void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)

Signals inherited from BaseInterface
virtual void	updateView ()
	Update current view in Main Application.

virtual void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)
	Set a description for a public slot.

virtual void	setRenderer (unsigned int _viewer, QString _rendererName)
	Set a renderer for the given viewer.

Signals inherited from ToolboxInterface
virtual void	addToolbox (QString _name, QWidget *_widget)
	Add a toolbox widget to the gui with the given name.

Signals inherited from LoggingInterface
virtual void	log (Logtype _type, QString _message)=0

virtual void	log (QString _message)=0

Signals inherited from LoadSaveInterface
virtual void	save (int _id, QString _filename)
	Save object to a file.

virtual void	load (QString _filename, DataType _type, int &_id)
	Load object from file with a specific DataType.

Signals inherited from ScriptInterface
virtual void	scriptInfo (QString _functionWithParameters)
	Emit this signal if a scriptable function is executed.

virtual void	getScriptingEngine (QScriptEngine *&_engine)

virtual void	executeFileScript (QString _filename)

virtual void	getAvailableFunctions (QStringList &_functions)

Signals inherited from BackupInterface
virtual void	createBackup (int _objectid, QString _name, UpdateType _type=UPDATE_ALL)
	Tell Backup Plugin to create a backup.

virtual void	aboutToRestore (int _objectid)
	Backup Plugin tells other Plugins that a restore will happen.

virtual void	generateBackup (int _id, QString _name, UpdateType _type)
	This signal is emitted by a BackupPlugin and tells a TypePlugin to generate a backup.

Signals inherited from PythonInterface
virtual void	executePythonScript (QString _script)

Public Member Functions
QString	name ()
	Return a name for the plugin.

QString	description ()
	Return a description of what the plugin is doing.

Private Slots
void	initializePlugin ()

void	pluginsInitialized ()

void	noguiSupported ()
	Make plugin available in no-GUI mode.

Private Slots inherited from BaseInterface
virtual void	exit ()

virtual QString	version ()
	Return a version string for your plugin.

Private Member Functions
void	slotSubdivideUniformButton ()

void	slotSimpleSubdivideButton ()

bool	test_trimesh_object (int _identifier, BaseObjectData *&_object)

Private Member Functions inherited from BaseInterface
virtual void	noguiSupported ()

virtual	~BaseInterface ()
	Destructor.

virtual void	blockScenegraphUpdates (bool _block)
	Tell the core to prevent scenegraph updates.

virtual void	updatedObject (int _objectId)
	An object has been changed or added by this plugin.

virtual void	updatedObject (int _identifier, const UpdateType &_type)
	An object has been changed or added by this plugin.

virtual void	nodeVisibilityChanged (int _identifier)
	A scenegraph node has been shown or hidden.

virtual void	getCurrentRenderer (unsigned int _viewer, QString &_rendererName)
	Get the current renderer for the given viewer.

Private Member Functions inherited from ToolboxInterface
virtual	~ToolboxInterface ()
	Destructor.

virtual void	addToolbox (QString _name, QWidget _widget, QIcon _icon)
	Add a toolbox widget to the gui with the given name and an icon.

virtual void	addToolbox (QString _name, QWidget _widget, QIcon _icon, QWidget *_headerAreaWidget)
	Add a toolbox widget to the gui with the given name, icon and header area widget.

Private Member Functions inherited from LoggingInterface
virtual	~LoggingInterface ()
	Destructor.

Private Member Functions inherited from LoadSaveInterface
virtual	~LoadSaveInterface ()
	Destructor.

virtual void	addEmptyObject (DataType _type, int &_id)

virtual void	copyObject (int _oldId, int &_newId)

virtual void	emptyObjectAdded (int _id)
	DEPRECATED HERE (Moved to Type Interface)! Emit this signal if an empty object has been created.

virtual void	deleteObject (int _id)
	Delete an object This signal can be called from any thread. .

virtual void	deleteAllObjects ()
	Delete all Objects.

virtual void	getAllFileFilters (QStringList &_filters)
	Get all file filters that are registered.

Private Member Functions inherited from ScriptInterface
virtual	~ScriptInterface ()
	Destructor.

virtual void	showScriptInEditor (QString _filename)

virtual void	executeScript (QString _script)

virtual void	getDescription (QString _function, QString &_description, QStringList &_parameters, QStringList &_descriptions)

Private Member Functions inherited from BackupInterface
virtual void	createBackup (IdList _objectids, QString _name, std::vector< UpdateType > _types)
	Tell Backup Plugin to create a group backup.

virtual void	undo (int _objectid)
	Tell Backup Plugin to undo the last action of an object.

virtual void	redo (int _objectid)
	Tell Backup Plugin to redo the last action on an object.

virtual void	undo ()
	Tell Backup Plugin to undo the last action.

virtual void	redo ()
	Tell Backup Plugin to redo the last action.

virtual	~BackupInterface ()
	Destructor.

virtual void	restored (int _objectid)
	Backup Plugin tells other Plugins that a restore has happened.

Private Member Functions inherited from PythonInterface
virtual void	openPythonScriptInEditor (QString _script)

virtual	~PythonInterface ()
	Destructor.

Private Attributes
subdividerToolbarWidget *	tool_
	Widget for Toolbox.

QIcon *	toolIcon_

Detailed Description

Definition at line 64 of file SubdividerPlugin.hh.

Constructor & Destructor Documentation

◆ SubdividerPlugin()

SubdividerPlugin::SubdividerPlugin ( )

Definition at line 57 of file SubdividerPlugin.cc.

◆ ~SubdividerPlugin()

SubdividerPlugin::~SubdividerPlugin ( )

Definition at line 64 of file SubdividerPlugin.cc.

Member Function Documentation

◆ description()

QString SubdividerPlugin::description ( )

inlinevirtual

Return a description of what the plugin is doing.

This function has to return a basic description of the plugin

Implements BaseInterface.

Definition at line 156 of file SubdividerPlugin.hh.

◆ initializePlugin

void SubdividerPlugin::initializePlugin ( )

privateslot

Definition at line 70 of file SubdividerPlugin.cc.

◆ name()

QString SubdividerPlugin::name ( )

inlinevirtual

Return a name for the plugin.

This Function has to return the name of the plugin.

Implements BaseInterface.

Definition at line 155 of file SubdividerPlugin.hh.

◆ noguiSupported

void SubdividerPlugin::noguiSupported ( )

inlineprivateslot

Make plugin available in no-GUI mode.

Definition at line 107 of file SubdividerPlugin.hh.

◆ pluginsInitialized

void SubdividerPlugin::pluginsInitialized ( )

privateslot

Definition at line 87 of file SubdividerPlugin.cc.

◆ simpleSubdivide

void SubdividerPlugin::simpleSubdivide	(	int	_objectId,
		QString	_algorithm,
		int	_steps,
		double	_parameter,
		bool	_update_points = `true`
	)

slot

Scripting slot for the simple subdivision algorithms.

Supported algorithm are:

Triangle meshes:

longest (Split all edges in descending order until all edges are shorter than given maximal edge length)

Parameters

_objectId	Object to work on
_algorithm	String describing the algorithm to use
_steps	Number of iterations
_parameter	Additional parameter depending on the algorithm (usually the maximal edge length in the final mesh)
_update_points	Update original point locations

Definition at line 169 of file SubdividerPlugin.cc.

◆ slotSimpleSubdivideButton()

void SubdividerPlugin::slotSimpleSubdivideButton ( )

private

Definition at line 147 of file SubdividerPlugin.cc.

◆ slotSubdivideUniformButton()

void SubdividerPlugin::slotSubdivideUniformButton ( )

private

Definition at line 108 of file SubdividerPlugin.cc.

◆ subdivide

void SubdividerPlugin::subdivide	(	int	_objectId,
		QString	_algorithm,
		int	_steps,
		bool	_update_points = `true`
	)

slot

Scripting slot for subdivision.

Supported algorithm are:

Polymeshes:

catmullClark

Triangle Meshes:

loop
sqrt3
interpolating_sqrt3
modifiedButterfly

Parameters

_objectId	Object to work on
_algorithm	String describing the algorithm to use
_steps	Number of iterations
_update_points	Update original point locations

Definition at line 202 of file SubdividerPlugin.cc.

◆ test_trimesh_object()

bool SubdividerPlugin::test_trimesh_object	(	int	_identifier,
		BaseObjectData *&	_object
	)

private

Definition at line 301 of file SubdividerPlugin.cc.

◆ version

QString SubdividerPlugin::version ( )

inlineslot

Definition at line 169 of file SubdividerPlugin.hh.

Member Data Documentation

◆ tool_

subdividerToolbarWidget* SubdividerPlugin::tool_

private

Widget for Toolbox.

Definition at line 160 of file SubdividerPlugin.hh.

◆ toolIcon_

QIcon* SubdividerPlugin::toolIcon_

private

Definition at line 161 of file SubdividerPlugin.hh.

The documentation for this class was generated from the following files:

Plugin-Subdivider/SubdividerPlugin.hh
Plugin-Subdivider/SubdividerPlugin.cc
