OpenMesh::SmartEdgeHandle Struct Reference

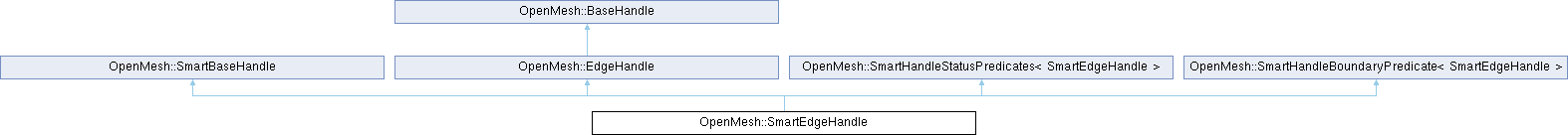

Inheritance diagram for OpenMesh::SmartEdgeHandle:

Public Member Functions
	SmartEdgeHandle (int _idx=-1, const PolyConnectivity *_mesh=nullptr)
SmartHalfedgeHandle	halfedge (unsigned int _i) const
	Returns one of the two halfedges of the edge.
SmartHalfedgeHandle	h (unsigned int _i) const
	Shorthand for halfedge()
SmartHalfedgeHandle	h0 () const
	Shorthand for halfedge(0)
SmartHalfedgeHandle	h1 () const
	Shorthand for halfedge(1)
SmartVertexHandle	vertex (unsigned int _i) const
	Returns one of the two incident vertices of the edge.
SmartVertexHandle	v (unsigned int _i) const
	Shorthand for vertex()
SmartVertexHandle	v0 () const
	Shorthand for vertex(0)
SmartVertexHandle	v1 () const
	Shorthand for vertex(1)
PolyConnectivity::ConstEdgeVertexRange	vertices () const
	Returns a range of vertices incident to the edge (PolyConnectivity::ev_range())
PolyConnectivity::ConstEdgeHalfedgeRange	halfedges () const
	Returns a range of halfedges of the edge (PolyConnectivity::eh_range())
PolyConnectivity::ConstEdgeHalfedgeRange	halfedges (HalfedgeHandle _heh) const
	Returns a range of halfedges of the edge (PolyConnectivity::eh_range())
PolyConnectivity::ConstEdgeFaceRange	faces () const
	Returns a range of faces incident to the edge (PolyConnectivity::ef_range())
Public Member Functions inherited from OpenMesh::SmartBaseHandle
	SmartBaseHandle (const PolyConnectivity *_mesh=nullptr)
const PolyConnectivity *	mesh () const
	Get the underlying mesh of this handle.
Public Member Functions inherited from OpenMesh::EdgeHandle
	EdgeHandle (int _idx=-1)
Public Member Functions inherited from OpenMesh::BaseHandle
	BaseHandle (int _idx=-1)
int	idx () const
	Get the underlying index of this handle.
bool	is_valid () const
	The handle is valid iff the index is not negative.
void	reset ()
	reset handle to be invalid
void	invalidate ()
	reset handle to be invalid
bool	operator== (const BaseHandle &_rhs) const
bool	operator!= (const BaseHandle &_rhs) const
bool	operator< (const BaseHandle &_rhs) const
void	__increment ()
void	__decrement ()
void	__increment (int amount)
void	__decrement (int amount)
Public Member Functions inherited from OpenMesh::SmartHandleStatusPredicates< SmartEdgeHandle >
bool	feature () const
	Returns true iff the handle is marked as feature.
bool	selected () const
	Returns true iff the handle is marked as selected.
bool	tagged () const
	Returns true iff the handle is marked as tagged.
bool	tagged2 () const
	Returns true iff the handle is marked as tagged2.
bool	locked () const
	Returns true iff the handle is marked as locked.
bool	hidden () const
	Returns true iff the handle is marked as hidden.
bool	deleted () const
	Returns true iff the handle is marked as deleted.
Public Member Functions inherited from OpenMesh::SmartHandleBoundaryPredicate< SmartEdgeHandle >
bool	is_boundary () const
	Returns true iff the handle is boundary.

Detailed Description

Definition at line 196 of file SmartHandles.hh.

Constructor & Destructor Documentation

SmartEdgeHandle()

OpenMesh::SmartEdgeHandle::SmartEdgeHandle ( int  _idx = -1, const PolyConnectivity *  _mesh = nullptr  )

inlineexplicit

Definition at line 198 of file SmartHandles.hh.

Member Function Documentation

faces()

PolyConnectivity::ConstEdgeFaceRange OpenMesh::SmartEdgeHandle::faces ( ) const

inline

Returns a range of faces incident to the edge (PolyConnectivity::ef_range())

Definition at line 1029 of file PolyConnectivity_inline_impl.hh.

h()

SmartHalfedgeHandle OpenMesh::SmartEdgeHandle::h ( unsigned int  _i = 0 ) const

inline

Shorthand for halfedge()

Definition at line 433 of file SmartHandles.hh.

h0()

SmartHalfedgeHandle OpenMesh::SmartEdgeHandle::h0 ( ) const

inline

Shorthand for halfedge(0)

Definition at line 438 of file SmartHandles.hh.

h1()

SmartHalfedgeHandle OpenMesh::SmartEdgeHandle::h1 ( ) const

inline

Shorthand for halfedge(1)

Definition at line 443 of file SmartHandles.hh.

halfedge()

SmartHalfedgeHandle OpenMesh::SmartEdgeHandle::halfedge ( unsigned int  _i = 0 ) const

inline

Returns one of the two halfedges of the edge.

Definition at line 427 of file SmartHandles.hh.

halfedges() [1/2]

PolyConnectivity::ConstEdgeHalfedgeRange OpenMesh::SmartEdgeHandle::halfedges ( ) const

inline

Returns a range of halfedges of the edge (PolyConnectivity::eh_range())

Definition at line 1025 of file PolyConnectivity_inline_impl.hh.

halfedges() [2/2]

PolyConnectivity::ConstEdgeHalfedgeRange OpenMesh::SmartEdgeHandle::halfedges ( HalfedgeHandle  _heh ) const

inline

Returns a range of halfedges of the edge (PolyConnectivity::eh_range())

Definition at line 1027 of file PolyConnectivity_inline_impl.hh.

v()

SmartVertexHandle OpenMesh::SmartEdgeHandle::v ( unsigned int  _i ) const

inline

Shorthand for vertex()

Definition at line 453 of file SmartHandles.hh.

v0()

SmartVertexHandle OpenMesh::SmartEdgeHandle::v0 ( ) const

inline

Shorthand for vertex(0)

Definition at line 458 of file SmartHandles.hh.

v1()

SmartVertexHandle OpenMesh::SmartEdgeHandle::v1 ( ) const

inline

Shorthand for vertex(1)

Definition at line 463 of file SmartHandles.hh.

vertex()

SmartVertexHandle OpenMesh::SmartEdgeHandle::vertex ( unsigned int  _i ) const

inline

Returns one of the two incident vertices of the edge.

Definition at line 448 of file SmartHandles.hh.

vertices()

PolyConnectivity::ConstEdgeVertexRange OpenMesh::SmartEdgeHandle::vertices ( ) const

inline

Returns a range of vertices incident to the edge (PolyConnectivity::ev_range())

Definition at line 1023 of file PolyConnectivity_inline_impl.hh.

---

The documentation for this struct was generated from the following files:

• OpenFlipper/libs_required/OpenMesh/src/OpenMesh/Core/Mesh/SmartHandles.hh
• OpenFlipper/libs_required/OpenMesh/src/OpenMesh/Core/Mesh/PolyConnectivity_inline_impl.hh
