OpenMesh::Decimater::BaseDecimaterT< MeshT > Singleton Reference

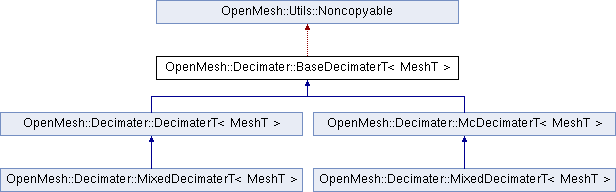

Inheritance diagram for OpenMesh::Decimater::BaseDecimaterT< MeshT >:
OpenMesh::Utils::Noncopyable OpenMesh::Decimater::DecimaterT< MeshT > OpenMesh::Decimater::McDecimaterT< MeshT > OpenMesh::Decimater::MixedDecimaterT< MeshT > OpenMesh::Decimater::MixedDecimaterT< MeshT >

Public Types

typedef BaseDecimaterT< MeshT > Self

typedef MeshT Mesh

typedef CollapseInfoT< MeshT > CollapseInfo

typedef ModBaseT< MeshT > Module

typedef std::vector< Module * > ModuleList

typedef ModuleList::iterator ModuleListIterator


Public Member Functions

 BaseDecimaterT (Mesh &_mesh)

bool initialize ()

bool is_initialized () const
 Returns whether decimater has been successfully initialized.

void info (std::ostream &_os)
 Print information about modules to _os.

void set_observer (Observer *_o)
 Add observer. More...

Observer * observer ()
 Get current observer of a decimater.

Mesh & mesh ()
 access mesh. used in modules.

template<typename _Module >
bool add (ModHandleT< _Module > &_mh)
 add module to decimater

template<typename _Module >
bool remove (ModHandleT< _Module > &_mh)
 remove module

template<typename Module >
Module & module (ModHandleT< Module > &_mh)
 get module referenced by handle _mh


Protected Member Functions

bool notify_observer (size_t _n_collapses)
 returns false, if abort requested by observer

void set_uninitialized ()
 Reset the initialized flag, and clear the bmodules_ and cmodule_.

void update_modules (CollapseInfo &_ci)

bool is_collapse_legal (const CollapseInfo &_ci)

float collapse_priority (const CollapseInfo &_ci)
 Calculate priority of an halfedge collapse (using the modules)

void preprocess_collapse (CollapseInfo &_ci)
 Pre-process a collapse.

void postprocess_collapse (CollapseInfo &_ci)
 Post-process a collapse.

void set_error_tolerance_factor (double _factor)

void reset ()


Private Attributes

Mesh & mesh_
 reference to mesh

ModuleList bmodules_
 list of binary modules

Module * cmodule_
 the current priority module

ModuleList all_modules_
 list of all allocated modules (including cmodule_ and all of bmodules_)

bool initialized_
 Flag if all modules were initialized.

Observer * observer_
 observer


Detailed Description

template<typename MeshT>
singleton OpenMesh::Decimater::BaseDecimaterT< MeshT >

Definition at line 90 of file BaseDecimaterT.hh.

Member Function Documentation

template<class Mesh >
bool OpenMesh::Decimater::BaseDecimaterT< Mesh >::initialize ( void  )

Initialize decimater and decimating modules.

Return values: true ok false No ore more than one non-binary module exist. In that case the decimater is uninitialized!

Definition at line 243 of file BaseDecimaterT.cc.

template<class Mesh >
bool OpenMesh::Decimater::BaseDecimaterT< Mesh >::is_collapse_legal ( const CollapseInfo &  _ci)
protected

Is an edge collapse legal? Performs topological test only. The method evaluates the status bit Locked, Deleted, and Feature.

Attention
The method temporarily sets the bit Tagged. After usage the bit will be disabled!

Definition at line 107 of file BaseDecimaterT.cc.

template<typename MeshT >
void OpenMesh::Decimater::BaseDecimaterT< MeshT >::reset ( )
inlineprotected

Reset the status of this class

You have to call initialize again!!

Definition at line 253 of file BaseDecimaterT.hh.

template<class Mesh >
void OpenMesh::Decimater::BaseDecimaterT< Mesh >::set_error_tolerance_factor ( double  _factor)
protected

This provides a function that allows the setting of a percentage of the original constraint of the modules

Note that some modules might re-initialize in their set_error_tolerance_factor function as necessary

Parameters
_factorhas to be in the closed interval between 0.0 and 1.0

Definition at line 198 of file BaseDecimaterT.cc.

template<typename MeshT >
void OpenMesh::Decimater::BaseDecimaterT< MeshT >::set_observer ( Observer *  _o)
inline

Add observer.

You can set an observer which is used as a callback to check the decimators progress and to abort it if necessary.

Parameters
_oObserver to be used

Definition at line 131 of file BaseDecimaterT.hh.

The documentation for this singleton was generated from the following files:
