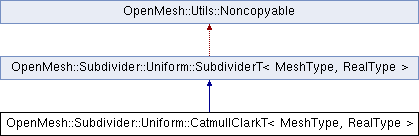

Inheritance diagram for OpenMesh::Subdivider::Uniform::CatmullClarkT< MeshType, RealType >:

Public Types
typedef MeshType::FaceHandle	FaceHandle

typedef MeshType::VertexHandle	VertexHandle

typedef MeshType::EdgeHandle	EdgeHandle

typedef MeshType::HalfedgeHandle	HalfedgeHandle

typedef MeshType::Point	Point

typedef MeshType::Normal	Normal

typedef MeshType::FaceIter	FaceIter

typedef MeshType::EdgeIter	EdgeIter

typedef MeshType::VertexIter	VertexIter

typedef MeshType::VertexEdgeIter	VertexEdgeIter

typedef MeshType::VertexFaceIter	VertexFaceIter

typedef MeshType::VOHIter	VOHIter

typedef SubdividerT< MeshType, RealType >	parent_t

Public Types inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >
typedef MeshType	mesh_t

typedef RealType	real_t

Public Member Functions
	CatmullClarkT ()
	Constructor.

	CatmullClarkT (MeshType &_m)
	Constructor.

const char *	name () const
	Return name of subdivision algorithm.

Public Member Functions inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >
virtual	~SubdividerT ()
	Descructor (calls detach())

	SubdividerT (void)

	SubdividerT (MeshType &_m)

bool	operator() (MeshType &_m, size_t _n, const bool _update_points=true)

bool	attach (MeshType &_m)

bool	operator() (size_t _n, const bool _update_points=true)

void	detach (void)

Protected Member Functions
virtual bool	prepare (MeshType &_m)
	Initialize properties and weights.

virtual bool	cleanup (MeshType &_m)
	Remove properties and weights.

virtual bool	subdivide (MeshType &_m, size_t _n, const bool _update_points=true)
	Execute n subdivision steps. More...

Overload theses methods

Private Member Functions
Topology helpers
void	split_edge (MeshType &_m, const EdgeHandle &_eh)

void	split_face (MeshType &_m, const FaceHandle &_fh)

void	compute_midpoint (MeshType &_m, const EdgeHandle &_eh, const bool _update_points)

void	update_vertex (MeshType &_m, const VertexHandle &_vh)

Private Attributes
OpenMesh::VPropHandleT< Point >	vp_pos_

OpenMesh::EPropHandleT< Point >	ep_pos_

OpenMesh::FPropHandleT< Point >	fp_pos_

OpenMesh::EPropHandleT< double >	creaseWeights_

Detailed Description

Based on code from Leon Kos, CAD lab, Mech.Eng., University of Ljubljana, Slovenia (http://www.lecad.fs.uni-lj.si/~leon)

Definition at line 92 of file CatmullClarkT.hh.

Member Function Documentation

template<typename MeshType , typename RealType >

bool OpenMesh::Subdivider::Uniform::CatmullClarkT< MeshType, RealType >::subdivide	(	MeshType &	_m,
		size_t	_n,
		const bool	_update_points = `true`
	)

protectedvirtual

Execute n subdivision steps.

Parameters

Definition at line 103 of file CatmullClarkT.cc.

The documentation for this class was generated from the following files:
