Laplacian Smoothing. More...

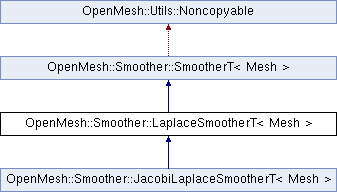

Inheritance diagram for OpenMesh::Smoother::LaplaceSmootherT< Mesh >:

Public Types
typedef SmootherT< Mesh > ::Component	Component

typedef SmootherT< Mesh > ::Continuity	Continuity

typedef SmootherT< Mesh >::Scalar	Scalar

typedef SmootherT< Mesh > ::VertexHandle	VertexHandle

typedef SmootherT< Mesh > ::EdgeHandle	EdgeHandle

Public Types inherited from OpenMesh::Smoother::SmootherT< Mesh >
enum	Component { Tangential, Normal, Tangential_and_Normal }

enum	Continuity { C0, C1, C2 }

typedef Mesh::Scalar	Scalar

typedef Mesh::Point	Point

typedef Mesh::Normal	NormalType

typedef Mesh::VertexHandle	VertexHandle

typedef Mesh::EdgeHandle	EdgeHandle

Public Member Functions
	LaplaceSmootherT (Mesh &_mesh)

void	initialize (Component _comp, Continuity _cont)

Public Member Functions inherited from OpenMesh::Smoother::SmootherT< Mesh >
	SmootherT (Mesh &_mesh)
	constructor & destructor More...

void	initialize (Component _comp, Continuity _cont)

virtual void	smooth (unsigned int _n)
	Do _n smoothing iterations.

void	set_relative_local_error (Scalar _err)
	Set local error relative to bounding box. More...

void	set_absolute_local_error (Scalar _err)
	Set local error as an absolute value. More...

void	disable_local_error_check ()
	Disable error control of the smoother. More...

void	skip_features (bool _state)
	enable or disable feature handling More...

Protected Member Functions
Scalar	weight (VertexHandle _vh) const

Scalar	weight (EdgeHandle _eh) const

Protected Member Functions inherited from OpenMesh::Smoother::SmootherT< Mesh >
virtual void	compute_new_positions_C0 ()=0

virtual void	compute_new_positions_C1 ()=0

const Point &	orig_position (VertexHandle _vh) const

const NormalType &	orig_normal (VertexHandle _vh) const

const Point &	new_position (VertexHandle _vh) const

void	set_new_position (VertexHandle _vh, const Point &_p)

bool	is_active (VertexHandle _vh) const

Component	component () const

Continuity	continuity () const

Private Types
enum	LaplaceWeighting { UniformWeighting, CotWeighting }

typedef SmootherT< Mesh >	Base

Private Member Functions
void	compute_weights (LaplaceWeighting _mode)

Private Attributes
OpenMesh::VPropHandleT< Scalar >	vertex_weights_

OpenMesh::EPropHandleT< Scalar >	edge_weights_

Additional Inherited Members
Protected Attributes inherited from OpenMesh::Smoother::SmootherT< Mesh >
Mesh &	mesh_

bool	skip_features_

Detailed Description

Laplacian Smoothing.

Definition at line 78 of file LaplaceSmootherT.hh.

The documentation for this class was generated from the following files:
