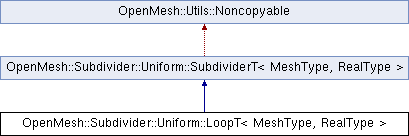

Inheritance diagram for OpenMesh::Subdivider::Uniform::LoopT< MeshType, RealType >:

Public Types
typedef RealType	real_t

typedef MeshType	mesh_t

typedef SubdividerT< mesh_t, real_t >	parent_t

typedef std::pair< real_t, real_t >	weight_t

typedef std::vector< std::pair < real_t, real_t > >	weights_t

Public Types inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >
typedef MeshType	mesh_t

typedef RealType	real_t

Public Member Functions
	LoopT (mesh_t &_m)

const char *	name () const
	Return name of subdivision algorithm.

void	init_weights (size_t _max_valence=50)
	Pre-compute weights.

Public Member Functions inherited from OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >
virtual	~SubdividerT ()
	Descructor (calls detach())

	SubdividerT (void)

	SubdividerT (MeshType &_m)

bool	operator() (MeshType &_m, size_t _n, const bool _update_points=true)

bool	attach (MeshType &_m)

bool	operator() (size_t _n, const bool _update_points=true)

void	detach (void)

Protected Member Functions
bool	prepare (mesh_t &_m)
	Prepare mesh, e.g. add properties.

bool	cleanup (mesh_t &_m)
	Cleanup mesh after usage, e.g. remove added properties.

bool	subdivide (mesh_t &_m, size_t _n, const bool _update_points=true)
	Subdivide mesh `_m` `_n` times. More...

Overload theses methods

Private Member Functions
void	split_face (mesh_t &_m, const typename mesh_t::FaceHandle &_fh)

void	corner_cutting (mesh_t &_m, const typename mesh_t::HalfedgeHandle &_he)

void	split_edge (mesh_t &_m, const typename mesh_t::EdgeHandle &_eh)

void	compute_midpoint (mesh_t &_m, const typename mesh_t::EdgeHandle &_eh)

void	smooth (mesh_t &_m, const typename mesh_t::VertexHandle &_vh)

Private Attributes
OpenMesh::VPropHandleT < typename mesh_t::Point >	vp_pos_

OpenMesh::EPropHandleT < typename mesh_t::Point >	ep_pos_

weights_t	weights_

const real_t	_1over8

const real_t	_3over8

Detailed Description

Uniform Loop subdivision algorithm.

Implementation as described in

C. T. Loop, "Smooth Subdivision Surfaces Based on Triangles", M.S. Thesis, Department of Mathematics, University of Utah, August 1987.

Definition at line 96 of file LoopT.hh.

Member Function Documentation

template<typename MeshType, typename RealType = float>

bool OpenMesh::Subdivider::Uniform::LoopT< MeshType, RealType >::subdivide	(	mesh_t &	_m,
		size_t	_n,
		const bool	_update_points = `true`
	)

inlineprotectedvirtual

Subdivide mesh _m _n times.

TODO:Implement fixed positions

Definition at line 154 of file LoopT.hh.

The documentation for this class was generated from the following file:
