OMPropertyVisualizerVectorFieldDifference< MeshT > Class Template Reference

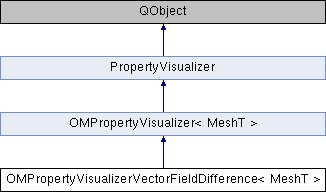

Inheritance diagram for OMPropertyVisualizerVectorFieldDifference< MeshT >:

Public Member Functions
	OMPropertyVisualizerVectorFieldDifference (MeshT *_mesh, PropertyInfo _propertyInfo1, PropertyInfo _propertyInfo2)
virtual QString	getName ()
	Returns a beautiful name. More...
Public Member Functions inherited from OMPropertyVisualizer< MeshT >
	OMPropertyVisualizer (MeshT *_mesh, PropertyInfo _propertyInfo)
virtual void	visualize (bool _setDrawMode, QWidget *_widget)
	Visualizes the property. More...
virtual void	duplicateProperty ()
	Duplicates the property. More...
virtual void	clear ()
	Clears the property. More...
unsigned int	getClosestPrimitiveId (unsigned int _face, ACG::Vec3d &_hitPoint)
	Returns the ID of the closest primitive. More...
Public Member Functions inherited from PropertyVisualizer
	PropertyVisualizer (PropertyInfo _propertyInfo)
	Constructor. More...
virtual	~PropertyVisualizer ()
	Destructor.
virtual QWidget *	getWidget ()
	Returns the visualizer's widget. More...
const PropertyInfo &	getPropertyInfo () const
	Returns the PropertyInfo.

Protected Member Functions
virtual void	visualizeFaceProp (bool _setDrawMode=true)
virtual void	visualizeEdgeProp (bool _setDrawMode=true)
virtual void	visualizeHalfedgeProp (bool _setDrawMode=true)
virtual void	visualizeVertexProp (bool _setDrawMode=true)
virtual void	removeProperty ()
	Removes the property. More...
virtual void	duplciateProperty ()
virtual QString	getPropertyText (unsigned int index)
	Returns the value of a property in text form. More...
Protected Member Functions inherited from OMPropertyVisualizer< MeshT >
template<typename PropType >
void	removeProperty_stage1 ()
template<typename PropType >
void	removeProperty_stage2 ()
template<typename PropType >
void	duplicateProperty_stage1 ()
template<typename PropHandle , typename Iterator >
void	duplicateProperty_stage2 (Iterator first, Iterator last)
virtual void	clearFaceProp ()
virtual void	clearEdgeProp ()
virtual void	clearHalfedgeProp ()
virtual void	clearVertexProp ()
virtual void	setFacePropertyFromText (unsigned int index, QString text)
virtual void	setEdgePropertyFromText (unsigned int index, QString text)
virtual void	setHalfedgePropertyFromText (unsigned int index, QString text)
virtual void	setVertexPropertyFromText (unsigned int index, QString text)
virtual void	setPropertyFromText (unsigned int index, QString text)
	Returns the value of a property in text form. More...
virtual int	getEntityCount ()
	Returns the number of entities.
virtual QString	getHeader ()
	Returns the header for saving.
unsigned int	getClosestFaceId (unsigned int _face, ACG::Vec3d &_hitPoint)
unsigned int	getClosestEdgeId (unsigned int _face, ACG::Vec3d &_hitPoint)
unsigned int	getClosestHalfedgeId (unsigned int _face, ACG::Vec3d &_hitPoint)
unsigned int	getClosestVertexId (unsigned int _face, ACG::Vec3d &_hitPoint)
template<typename InnerType >
QString	getPropertyText_ (unsigned int index)
template<typename Type >
void	showHistogram (ACG::QtWidgets::QtHistogramWidget *histogramWidget)
Protected Member Functions inherited from PropertyVisualizer
virtual std::unique_ptr < ACG::IColorCoder >	buildColorCoder ()
template<typename PropType , typename Iterable >
void	showHistogramT (ACG::QtWidgets::QtHistogramWidget *widget, Iterable data)

Private Attributes
PropertyInfo	propertyInfo2

Additional Inherited Members
Signals inherited from PropertyVisualizer
void	log (Logtype _type, QString _message)
void	log (QString _message)
Static Public Member Functions inherited from PropertyVisualizer
static QString	toStr (bool b)
static QString	toStr (double d)
static QString	toStr (int i)
static QString	toStr (uint8_t i)
static QString	toStr (unsigned int i)
static QString	toStr (OpenMesh::Vec3d v)
static QString	toStr (OpenMesh::Vec2d v)
static QString	toStr (OpenMesh::Vec2f v)
static bool	strToBool (QString str)
static double	strToDouble (QString str)
static int	strToInt (QString str)
static unsigned int	strToUInt (QString str)
static OpenMesh::Vec3d	strToVec3d (QString str)
static OpenMesh::Vec2d	strToVec2d (QString str)
static OpenMesh::Vec2f	strToVec2f (QString str)
Public Attributes inherited from PropertyVisualizer
QWidget *	widget
Protected Attributes inherited from OMPropertyVisualizer< MeshT >
MeshT *	mesh
Protected Attributes inherited from PropertyVisualizer
PropertyInfo	propertyInfo

Detailed Description

template<typename MeshT>
class OMPropertyVisualizerVectorFieldDifference< MeshT >

Definition at line 66 of file OMPropertyVisualizerVectorFieldDifference.hh.

Member Function Documentation

template<typename MeshT >

virtual QString OMPropertyVisualizerVectorFieldDifference< MeshT >::getName ( )

inlinevirtual

Returns a beautiful name.

The beautiful name consists of a symbol representing the entity type, the property's name and the property's type.

Reimplemented from PropertyVisualizer.

Definition at line 72 of file OMPropertyVisualizerVectorFieldDifference.hh.

template<typename MeshT >

QString OMPropertyVisualizerVectorFieldDifference< MeshT >::getPropertyText ( unsigned int  i )

protectedvirtual

Returns the value of a property in text form.

Parameters

i	The id of the entity whose property we want to know.

Returns

The property value in text form.

Reimplemented from OMPropertyVisualizer< MeshT >.

Definition at line 67 of file OMPropertyVisualizerVectorFieldDifferenceT.cc.

template<typename MeshT >

virtual void OMPropertyVisualizerVectorFieldDifference< MeshT >::removeProperty ( )

inlineprotectedvirtual

Removes the property.

This will remove the property from the mesh. After this method the PropertyVisualizer should be deleted.

Reimplemented from OMPropertyVisualizer< MeshT >.

Definition at line 82 of file OMPropertyVisualizerVectorFieldDifference.hh.

---

The documentation for this class was generated from the following files:

• Plugin-PropertyVis/OpenMesh/OMPropertyVisualizerVectorFieldDifference.hh
• Plugin-PropertyVis/OpenMesh/OMPropertyVisualizerVectorFieldDifferenceT.cc
