OpenMesh::Kernel_OSG::oPropertyT< GeoProperty > Class Template Reference

#include <OpenFlipper/libs_required/OpenMesh/src/OpenMesh/Tools/Kernel_OSG/PropertyT.hh>

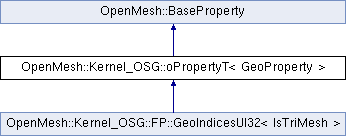

Inheritance diagram for OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >:
OpenMesh::BaseProperty OpenMesh::Kernel_OSG::FP::GeoIndicesUI32< IsTriMesh >

Public Types

typedef GeoProperty property_t

typedef property_t::PtrType property_ptr_t

typedef property_t::StoredFieldType field_t

typedef field_t::StoredType element_t

typedef field_t::StoredType value_type


Public Member Functions

 oPropertyT (property_ptr_t _geo_prop, const std::string &_name="<unknown>")

 oPropertyT (const std::string &_name="<unknown>")

oPropertyToperator= (const oPropertyT &_rhs)

virtual void reserve (size_t _n)
 Reserve memory for n elements.

virtual void resize (size_t _n)
 Resize storage to hold n elements.

virtual void push_back ()
 Extend the number of elements by one.

virtual void swap (size_t _i0, size_t _i1)
 Let two elements swap their storage place.

virtual oPropertyT< property_t > * clone () const
 Return a deep copy of self.

virtual void set_persistent (bool _yn)

virtual size_t n_elements () const
 Number of elements in property.

virtual size_t element_size () const
 Size of one element in bytes or UnknownSize if not known.

virtual size_t store (std::ostream &_ostr, bool _swap) const
 Store self as one binary block.

virtual size_t restore (std::istream &_istr, bool _swap)

void clear (void)
 Clear all elements and free memory.

property_ptr_t & osg_ptr ()

const property_ptr_t & osg_ptr () const

const element_t * data () const

element_t & operator[] (size_t idx)

const element_t & operator[] (size_t idx) const

- Public Member Functions inherited from OpenMesh::BaseProperty
 BaseProperty (const std::string &_name="<unknown>")
 Default constructor. More...

 BaseProperty (const BaseProperty &_rhs)
 Copy constructor.

virtual ~BaseProperty ()
 Destructor.

virtual void copy (size_t _io, size_t _i1)=0
 Copy one element to another.

const std::string & name () const
 Return the name of the property.

virtual void stats (std::ostream &_ostr) const

bool persistent (void) const
 Returns true if the persistent flag is enabled else false.

virtual size_t size_of () const
 Return size of property in bytes.

virtual size_t size_of (size_t _n_elem) const


Protected Attributes

property_ptr_t data_


Private Member Functions

void osg_init_check (void)

 oPropertyT (const oPropertyT &)


Additional Inherited Members

- Static Public Attributes inherited from OpenMesh::BaseProperty
static const size_t UnknownSize = size_t(-1)
 Indicates an error when a size is returned by a member.

- Protected Member Functions inherited from OpenMesh::BaseProperty
template<typename T >
void check_and_set_persistent (bool _yn)


Detailed Description

template<typename GeoProperty>
class OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >

Property adaptor for OpenSG GeoProperties

This class bridges the interfaces of OpenMesh properties and OpenSG GeoProperties. The PropertyKernelT uses these adaptors to add all necessary property functions to the kernel, while the AttribKernelT extends the kernel with the standard properites. Finally the ArrayKernelT completes the kernel build with a specialized version of the garbage collections since the GeoIndices require special handling.

Attention
Data will be shared with a geometry core when linking a mesh with a OpenSG geometry node using Kernel_OSG::bind.

Definition at line 87 of file PropertyT.hh.

Member Function Documentation

◆ restore()

template<typename GeoProperty>
virtual size_t OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::restore ( std::istream &  _istr,
bool  _swap
)
inlinevirtual

Restore self from a binary block. Uses reserve() to set the size of self before restoring.

Implements OpenMesh::BaseProperty.

Definition at line 175 of file PropertyT.hh.

◆ set_persistent()

template<typename GeoProperty>
virtual void OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >::set_persistent ( bool  _yn)
inlinevirtual

Enable or disable persistency. Self must be a named property to enable persistency.

Implements OpenMesh::BaseProperty.

Definition at line 161 of file PropertyT.hh.


The documentation for this class was generated from the following file:
