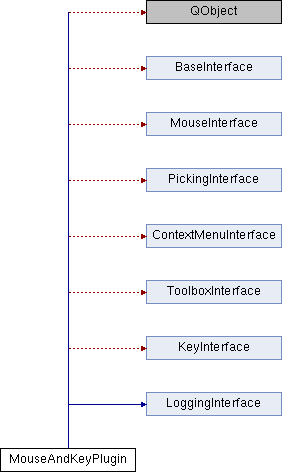

Inheritance diagram for MouseAndKeyPlugin:

Public Slots
QString	version ()

Signals
void	updateView ()

void	updatedObject (int _identifier, const UpdateType &_type)

void	log (Logtype _type, QString _message)

void	log (QString _message)

void	addContextMenuItem (QAction *_action, ContextMenuType _type)

void	addContextMenuItem (QAction *_action, DataType _objectType, ContextMenuType _type)

void	addPickMode (const std::string &_mode)

void	addHiddenPickMode (const std::string &_mode)

void	registerKey (int _key, Qt::KeyboardModifiers _modifiers, QString _description, bool _multiUse=false)

void	addToolbox (QString _name, QWidget *_widget)

Signals inherited from BaseInterface
virtual void	updateView ()
	Update current view in Main Application. More...

virtual void	setSlotDescription (QString _slotName, QString _slotDescription, QStringList _parameters, QStringList _descriptions)
	Set a description for a public slot. More...

virtual void	setRenderer (unsigned int _viewer, QString _rendererName)
	Set a renderer for the given viewer. More...

Signals inherited from PickingInterface
virtual void	addPickMode (const std::string &_mode)
	Add a new picking mode to the examiner. More...

Signals inherited from ContextMenuInterface
virtual void	addContextMenuItem (QAction *_action, ContextMenuType _type)
	Add an entry for a context Menu. More...

Signals inherited from ToolboxInterface
virtual void	addToolbox (QString _name, QWidget *_widget)
	Add a toolbox widget to the gui with the given name. More...

Signals inherited from KeyInterface
virtual void	registerKey (int _key, Qt::KeyboardModifiers _modifiers, QString _description, bool _multiUse=false)
	Register a key-combination for your plugin. More...

Signals inherited from LoggingInterface
virtual void	log (Logtype _type, QString _message)=0

virtual void	log (QString _message)=0

Public Member Functions
QString	name ()
	Return a name for the plugin. More...

QString	description ()
	Return a description of what the plugin is doing. More...

Private Slots
void	initializePlugin ()

void	pluginsInitialized ()

void	slotMouseEvent (QMouseEvent *_event)

void	slotKeyEvent (QKeyEvent *_event)

void	slotPickModeChanged (const std::string &_mode)

void	slotButtonClicked ()

void	contextMenuItemSelected (QAction *_action)

Private Slots inherited from BaseInterface
virtual void	exit ()

virtual QString	version ()
	Return a version string for your plugin. More...

Private Slots inherited from KeyInterface
virtual void	slotKeyEvent (QKeyEvent *_event)
	Key Event from Main App. More...

Private Member Functions
template<typename MeshT >
void	transformMesh (ACG::Matrix4x4d _mat, MeshT &_mesh)

Private Member Functions inherited from BaseInterface
virtual void	noguiSupported ()

virtual	~BaseInterface ()
	Destructor.

virtual void	blockScenegraphUpdates (bool _block)
	Tell the core to prevent scenegraph updates. More...

virtual void	updatedObject (int _objectId)
	An object has been changed or added by this plugin. More...

virtual void	updatedObject (int _identifier, const UpdateType &_type)
	An object has been changed or added by this plugin. More...

virtual void	nodeVisibilityChanged (int _identifier)
	A scenegraph node has been shown or hidden. More...

virtual void	getCurrentRenderer (unsigned int _viewer, QString &_rendererName)
	Get the current renderer for the given viewer. More...

Private Member Functions inherited from MouseInterface
virtual	~MouseInterface ()
	Destructor.

Private Member Functions inherited from PickingInterface
virtual void	addHiddenPickMode (const std::string &_mode)
	Add a new picking mode to the examiner which will be invisible. More...

virtual void	setPickModeCursor (const std::string &_mode, QCursor _cursor)
	Set the cursor of the given PickMode. More...

virtual void	setPickModeMouseTracking (const std::string &_mode, bool _mouseTracking)
	Set mouse tracking for the given PickMode. More...

virtual void	setPickModeToolbar (const std::string &_mode, QToolBar *_toolbar)
	Set the additional toolbar of the given PickMode. More...

virtual void	removePickModeToolbar (const std::string &_mode)
	Removes the additional toolbar of the given PickMode. More...

virtual	~PickingInterface ()
	Destructor.

Private Member Functions inherited from ContextMenuInterface
virtual	~ContextMenuInterface ()
	Destructor.

virtual void	addContextMenuItem (QAction *_action, DataType _objectType, ContextMenuType _type)
	Add an entry for a context Menu. More...

virtual void	hideContextMenu ()
	hide the main context menu

Private Member Functions inherited from ToolboxInterface
virtual	~ToolboxInterface ()
	Destructor.

virtual void	addToolbox (QString _name, QWidget _widget, QIcon _icon)
	Add a toolbox widget to the gui with the given name and an icon. More...

virtual void	addToolbox (QString _name, QWidget _widget, QIcon _icon, QWidget *_headerAreaWidget)
	Add a toolbox widget to the gui with the given name, icon and header area widget. More...

Private Member Functions inherited from KeyInterface
virtual void	slotKeyReleaseEvent (QKeyEvent *_event)
	Key Release Event from Main App. More...

virtual	~KeyInterface ()
	Destructor.

Private Member Functions inherited from LoggingInterface
virtual	~LoggingInterface ()
	Destructor.

Private Attributes
QMenu *	contextMenuEntry_

QWidget *	tool_

QPushButton *	pickButton_

int	activeObject_

ACG::Vec3d	axis_x_

ACG::Vec3d	axis_y_

Detailed Description

Definition at line 19 of file MouseAndKeyPlugin.hh.

Member Function Documentation

◆ description()

QString MouseAndKeyPlugin::description ( )

inlinevirtual

Return a description of what the plugin is doing.

This function has to return a basic description of the plugin

Implements BaseInterface.

Definition at line 74 of file MouseAndKeyPlugin.hh.

◆ name()

QString MouseAndKeyPlugin::name ( )

inlinevirtual

Return a name for the plugin.

This Function has to return the name of the plugin.

Implements BaseInterface.

Definition at line 73 of file MouseAndKeyPlugin.hh.

The documentation for this class was generated from the following files:

OpenFlipper/Documentation/DeveloperHelpSources/example/MouseAndKeyPlugin.hh
OpenFlipper/Documentation/DeveloperHelpSources/example/MouseAndKeyPlugin.cc
