OpenVolumeMesh::HexahedralMeshTopologyKernel Class Reference

A data structure basing on PolyhedralMesh with specializations for hexahedra. More...

#include <Type-OpenVolumeMesh/libs/OpenVolumeMesh/src/OpenVolumeMesh/Mesh/HexahedralMeshTopologyKernel.hh>

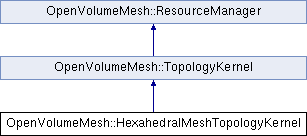

Inheritance diagram for OpenVolumeMesh::HexahedralMeshTopologyKernel:
OpenVolumeMesh::TopologyKernel OpenVolumeMesh::ResourceManager

Public Types

typedef class CellSheetCellIter CellSheetCellIter

typedef class HalfFaceSheetHalfFaceIter HalfFaceSheetHalfFaceIter

typedef class HexVertexIter HexVertexIter

- Public Types inherited from OpenVolumeMesh::TopologyKernel
typedef OpenVolumeMeshEdge Edge

typedef OpenVolumeMeshFace Face

typedef OpenVolumeMeshCell Cell

- Public Types inherited from OpenVolumeMesh::ResourceManager
typedef std::vector< BaseProperty * > Properties


Public Member Functions

FaceHandle add_face (const std::vector< HalfEdgeHandle > &_halfedges, bool _topologyCheck=false) override
 Add face via incident edges. More...

FaceHandle add_face (const std::vector< VertexHandle > &_vertices) override
 Add face via incident vertices. More...

CellHandle add_cell (const std::vector< HalfFaceHandle > &_halffaces, bool _topologyCheck=false) override
 Overridden function.

CellHandle add_cell (const std::vector< VertexHandle > &_vertices, bool _topologyCheck=false)
 Add cell via incident vertices. More...

CellSheetCellIter csc_iter (const CellHandle &_ref_h, const unsigned char _orthDir, int _max_laps=1) const

std::pair< CellSheetCellIter, CellSheetCellIter > cell_sheet_cells (const CellHandle &_ref_h, const unsigned char _orthDir, int _max_laps=1) const

HalfFaceSheetHalfFaceIter hfshf_iter (const HalfFaceHandle &_ref_h, int _max_laps=1) const

std::pair< HalfFaceSheetHalfFaceIter, HalfFaceSheetHalfFaceIter > halfface_sheet_halffaces (const HalfFaceHandle &_ref_h, int _max_laps=1) const

HexVertexIter hv_iter (const CellHandle &_ref_h, int _max_laps=1) const

std::pair< HexVertexIter, HexVertexIter > hex_vertices (const CellHandle &_ref_h, int _max_laps=1) const

HalfFaceHandle opposite_halfface_handle_in_cell (const HalfFaceHandle &_hfh, const CellHandle &_ch) const

HalfFaceHandle xfront_halfface (const CellHandle &_ch) const

HalfFaceHandle xback_halfface (const CellHandle &_ch) const

HalfFaceHandle yfront_halfface (const CellHandle &_ch) const

HalfFaceHandle yback_halfface (const CellHandle &_ch) const

HalfFaceHandle zfront_halfface (const CellHandle &_ch) const

HalfFaceHandle zback_halfface (const CellHandle &_ch) const

unsigned char orientation (const HalfFaceHandle &_hfh, const CellHandle &_ch) const

HalfFaceHandle get_oriented_halfface (const unsigned char _o, const CellHandle &_ch) const

HalfFaceHandle adjacent_halfface_on_sheet (const HalfFaceHandle &_hfh, const HalfEdgeHandle &_heh) const

HalfFaceHandle adjacent_halfface_on_surface (const HalfFaceHandle &_hfh, const HalfEdgeHandle &_heh) const

HalfFaceHandle neighboring_outside_halfface (const HalfFaceHandle &_hfh, const HalfEdgeHandle &_heh) const

- Public Member Functions inherited from OpenVolumeMesh::TopologyKernel
TopologyKernel & operator= (const TopologyKernel &)=default

void assign (const TopologyKernel *other)

VertexVertexIter vv_iter (const VertexHandle &_h, int _max_laps=1) const

std::pair< VertexVertexIter, VertexVertexIter > vertex_vertices (const VertexHandle &_h, int _max_laps=1) const

VertexOHalfEdgeIter voh_iter (const VertexHandle &_h, int _max_laps=1) const

std::pair< VertexOHalfEdgeIter, VertexOHalfEdgeIter > outgoing_halfedges (const VertexHandle &_h, int _max_laps=1) const

VertexIHalfEdgeIter vih_iter (const VertexHandle &_h, int _max_laps=1) const

std::pair< VertexIHalfEdgeIter, VertexIHalfEdgeIter > incoming_halfedges (const VertexHandle &_h, int _max_laps=1) const

VertexEdgeIter ve_iter (const VertexHandle &_h, int _max_laps=1) const

std::pair< VertexEdgeIter, VertexEdgeIter > vertex_edges (const VertexHandle &_h, int _max_laps=1) const

VertexHalfFaceIter vhf_iter (const VertexHandle &_h, int _max_laps=1) const

std::pair< VertexHalfFaceIter, VertexHalfFaceIter > vertex_halffaces (const VertexHandle &_h, int _max_laps=1) const

VertexFaceIter vf_iter (const VertexHandle &_h, int _max_laps=1) const

std::pair< VertexFaceIter, VertexFaceIter > vertex_faces (const VertexHandle &_h, int _max_laps=1) const

VertexCellIter vc_iter (const VertexHandle &_h, int _max_laps=1) const

std::pair< VertexCellIter, VertexCellIter > vertex_cells (const VertexHandle &_h, int _max_laps=1) const

HalfEdgeHalfFaceIter hehf_iter (const HalfEdgeHandle &_h, int _max_laps=1) const

std::pair< HalfEdgeHalfFaceIter, HalfEdgeHalfFaceIter > halfedge_halffaces (const HalfEdgeHandle &_h, int _max_laps=1) const

HalfEdgeFaceIter hef_iter (const HalfEdgeHandle &_h, int _max_laps=1) const

std::pair< HalfEdgeFaceIter, HalfEdgeFaceIter > halfedge_faces (const HalfEdgeHandle &_h, int _max_laps=1) const

HalfEdgeCellIter hec_iter (const HalfEdgeHandle &_h, int _max_laps=1) const

std::pair< HalfEdgeCellIter, HalfEdgeCellIter > halfedge_cells (const HalfEdgeHandle &_h, int _max_laps=1) const

EdgeHalfFaceIter ehf_iter (const EdgeHandle &_h, int _max_laps=1) const

std::pair< EdgeHalfFaceIter, EdgeHalfFaceIter > edge_halffaces (const EdgeHandle &_h, int _max_laps=1) const

EdgeFaceIter ef_iter (const EdgeHandle &_h, int _max_laps=1) const

std::pair< EdgeFaceIter, EdgeFaceIter > edge_faces (const EdgeHandle &_h, int _max_laps=1) const

EdgeCellIter ec_iter (const EdgeHandle &_h, int _max_laps=1) const

std::pair< EdgeCellIter, EdgeCellIter > edge_cells (const EdgeHandle &_h, int _max_laps=1) const

HalfFaceHalfEdgeIter hfhe_iter (const HalfFaceHandle &_h, int _max_laps=1) const

std::pair< HalfFaceHalfEdgeIter, HalfFaceHalfEdgeIter > halfface_halfedges (const HalfFaceHandle &_h, int _max_laps=1) const

HalfFaceEdgeIter hfe_iter (const HalfFaceHandle &_h, int _max_laps=1) const

std::pair< HalfFaceEdgeIter, HalfFaceEdgeIter > halfface_edges (const HalfFaceHandle &_h, int _max_laps=1) const

FaceVertexIter fv_iter (const FaceHandle &_h, int _max_laps=1) const

std::pair< FaceVertexIter, FaceVertexIter > face_vertices (const FaceHandle &_h, int _max_laps=1) const

FaceHalfEdgeIter fhe_iter (const FaceHandle &_h, int _max_laps=1) const

std::pair< FaceHalfEdgeIter, FaceHalfEdgeIter > face_halfedges (const FaceHandle &_h, int _max_laps=1) const

FaceEdgeIter fe_iter (const FaceHandle &_h, int _max_laps=1) const

std::pair< FaceEdgeIter, FaceEdgeIter > face_edges (const FaceHandle &_h, int _max_laps=1) const

CellVertexIter cv_iter (const CellHandle &_h, int _max_laps=1) const

std::pair< CellVertexIter, CellVertexIter > cell_vertices (const CellHandle &_h, int _max_laps=1) const

CellHalfEdgeIter che_iter (const CellHandle &_h, int _max_laps=1) const

std::pair< CellHalfEdgeIter, CellHalfEdgeIter > cell_halfedges (const CellHandle &_h, int _max_laps=1) const

CellEdgeIter ce_iter (const CellHandle &_h, int _max_laps=1) const

std::pair< CellEdgeIter, CellEdgeIter > cell_edges (const CellHandle &_h, int _max_laps=1) const

CellHalfFaceIter chf_iter (const CellHandle &_h, int _max_laps=1) const

std::pair< CellHalfFaceIter, CellHalfFaceIter > cell_halffaces (const CellHandle &_h, int _max_laps=1) const

CellFaceIter cf_iter (const CellHandle &_h, int _max_laps=1) const

std::pair< CellFaceIter, CellFaceIter > cell_faces (const CellHandle &_h, int _max_laps=1) const

CellCellIter cc_iter (const CellHandle &_h, int _max_laps=1) const

std::pair< CellCellIter, CellCellIter > cell_cells (const CellHandle &_h, int _max_laps=1) const

HalfFaceVertexIter hfv_iter (const HalfFaceHandle &_h, int _max_laps=1) const

std::pair< HalfFaceVertexIter, HalfFaceVertexIter > halfface_vertices (const HalfFaceHandle &_h, int _max_laps=1) const

BoundaryHalfFaceHalfFaceIter bhfhf_iter (const HalfFaceHandle &_ref_h, int _max_laps=1) const

std::pair< BoundaryHalfFaceHalfFaceIter, BoundaryHalfFaceHalfFaceIter > boundary_halfface_halffaces (const HalfFaceHandle &_h, int _max_laps=1) const

BoundaryVertexIter bv_iter () const

BoundaryHalfEdgeIter bhe_iter () const

BoundaryEdgeIter be_iter () const

BoundaryHalfFaceIter bhf_iter () const

BoundaryFaceIter bf_iter () const

BoundaryCellIter bc_iter () const

VertexIter v_iter () const

VertexIter vertices_begin () const

VertexIter vertices_end () const

std::pair< VertexIter, VertexIter > vertices () const

EdgeIter e_iter () const

EdgeIter edges_begin () const

EdgeIter edges_end () const

std::pair< EdgeIter, EdgeIter > edges () const

HalfEdgeIter he_iter () const

HalfEdgeIter halfedges_begin () const

HalfEdgeIter halfedges_end () const

std::pair< HalfEdgeIter, HalfEdgeIter > halfedges () const

FaceIter f_iter () const

FaceIter faces_begin () const

FaceIter faces_end () const

std::pair< FaceIter, FaceIter > faces () const

HalfFaceIter hf_iter () const

HalfFaceIter halffaces_begin () const

HalfFaceIter halffaces_end () const

std::pair< HalfFaceIter, HalfFaceIter > halffaces () const

CellIter c_iter () const

CellIter cells_begin () const

CellIter cells_end () const

std::pair< CellIter, CellIter > cells () const

std::vector< VertexHandle > halfedge_vertices (const HalfEdgeHandle &_h) const

std::vector< VertexHandle > edge_vertices (const EdgeHandle &_h) const

std::vector< HalfEdgeHandle > edge_halfedges (const EdgeHandle &_h) const

std::vector< HalfFaceHandle > face_halffaces (const FaceHandle &_h) const

std::vector< CellHandle > face_cells (const FaceHandle &_h) const

size_t n_vertices () const override
 Get number of vertices in mesh.

size_t n_edges () const override
 Get number of edges in mesh.

size_t n_halfedges () const override
 Get number of halfedges in mesh.

size_t n_faces () const override
 Get number of faces in mesh.

size_t n_halffaces () const override
 Get number of halffaces in mesh.

size_t n_cells () const override
 Get number of cells in mesh.

size_t n_logical_vertices () const
 Get number of undeleted vertices in mesh.

size_t n_logical_edges () const
 Get number of undeleted edges in mesh.

size_t n_logical_halfedges () const
 Get number of undeleted halfedges in mesh.

size_t n_logical_faces () const
 Get number of undeleted faces in mesh.

size_t n_logical_halffaces () const
 Get number of undeleted halffaces in mesh.

size_t n_logical_cells () const
 Get number of undeleted cells in mesh.

int genus () const

virtual VertexHandle add_vertex ()
 Add abstract vertex.

virtual EdgeHandle add_edge (const VertexHandle &_fromVertex, const VertexHandle &_toHandle, bool _allowDuplicates=false)
 Add edge.

void set_edge (const EdgeHandle &_eh, const VertexHandle &_fromVertex, const VertexHandle &_toVertex)
 Set the vertices of an edge.

void set_face (const FaceHandle &_fh, const std::vector< HalfEdgeHandle > &_hes)
 Set the half-edges of a face.

void set_cell (const CellHandle &_ch, const std::vector< HalfFaceHandle > &_hfs)
 Set the half-faces of a cell.

const Edge & edge (const EdgeHandle &_edgeHandle) const
 Get edge with handle _edgeHandle.

const Face & face (const FaceHandle &_faceHandle) const
 Get face with handle _faceHandle.

const Cell & cell (const CellHandle &_cellHandle) const
 Get cell with handle _cellHandle.

Edge & edge (const EdgeHandle &_edgeHandle)
 Get edge with handle _edgeHandle.

Face & face (const FaceHandle &_faceHandle)
 Get face with handle _faceHandle.

Cell & cell (const CellHandle &_cellHandle)
 Get cell with handle _cellHandle.

Edge halfedge (const HalfEdgeHandle &_halfEdgeHandle) const
 Get edge that corresponds to halfedge with handle _halfEdgeHandle. More...

Face halfface (const HalfFaceHandle &_halfFaceHandle) const
 Get face that corresponds to halfface with handle _halfFaceHandle.

Edge opposite_halfedge (const HalfEdgeHandle &_halfEdgeHandle) const
 Get opposite halfedge that corresponds to halfedge with handle _halfEdgeHandle.

Face opposite_halfface (const HalfFaceHandle &_halfFaceHandle) const
 Get opposite halfface that corresponds to halfface with handle _halfFaceHandle.

HalfEdgeHandle halfedge (const VertexHandle &_vh1, const VertexHandle &_vh2) const
 Get halfedge from vertex _vh1 to _vh2.

HalfFaceHandle halfface (const std::vector< VertexHandle > &_vs) const

HalfFaceHandle halfface_extensive (const std::vector< VertexHandle > &_vs) const

HalfFaceHandle halfface (const std::vector< HalfEdgeHandle > &_hes) const

HalfEdgeHandle next_halfedge_in_halfface (const HalfEdgeHandle &_heh, const HalfFaceHandle &_hfh) const
 Get next halfedge within a halfface.

HalfEdgeHandle prev_halfedge_in_halfface (const HalfEdgeHandle &_heh, const HalfFaceHandle &_hfh) const
 Get previous halfedge within a halfface.

VertexHandle from_vertex_handle (const HalfEdgeHandle &_h) const
 Get the vertex the halfedge starts from.

VertexHandle to_vertex_handle (const HalfEdgeHandle &_h) const
 Get the vertex the halfedge points to.

size_t valence (const VertexHandle &_vh) const
 Get valence of vertex (number of incident edges)

size_t valence (const EdgeHandle &_eh) const
 Get valence of edge (number of incident faces)

size_t valence (const FaceHandle &_fh) const
 Get valence of face (number of incident edges)

size_t valence (const CellHandle &_ch) const
 Get valence of cell (number of incident faces)

virtual VertexIter delete_vertex (const VertexHandle &_h)
 Delete vertex from mesh. More...

virtual EdgeIter delete_edge (const EdgeHandle &_h)
 Delete edge from mesh. More...

virtual FaceIter delete_face (const FaceHandle &_h)
 Delete face from mesh. More...

virtual CellIter delete_cell (const CellHandle &_h)
 Delete cell from mesh. More...

virtual void collect_garbage ()
 Delete all entities that are marked as deleted.

virtual bool is_deleted (const VertexHandle &_h) const

virtual bool is_deleted (const EdgeHandle &_h) const

virtual bool is_deleted (const HalfEdgeHandle &_h) const

virtual bool is_deleted (const FaceHandle &_h) const

virtual bool is_deleted (const HalfFaceHandle &_h) const

virtual bool is_deleted (const CellHandle &_h) const

virtual void swap_cell_indices (CellHandle _h1, CellHandle _h2)
 Exchanges the indices of two cells while keeping the mesh otherwise unaffected.

virtual void swap_face_indices (FaceHandle _h1, FaceHandle _h2)
 Exchanges the indices of two faces while keeping the mesh otherwise unaffected.

virtual void swap_edge_indices (EdgeHandle _h1, EdgeHandle _h2)
 Exchanges the indices of two edges while keeping the mesh otherwise unaffected.

virtual void swap_vertex_indices (VertexHandle _h1, VertexHandle _h2)
 Exchanges the indices of two vertices while keeping the mesh otherwise unaffected.

CellIter delete_cell_range (const CellIter &_first, const CellIter &_last)
 Delete range of cells. More...

virtual void clear (bool _clearProps=true)
 Clear whole mesh.

void enable_bottom_up_incidences (bool _enable=true)

void enable_vertex_bottom_up_incidences (bool _enable=true)

void enable_edge_bottom_up_incidences (bool _enable=true)

void enable_face_bottom_up_incidences (bool _enable=true)

bool has_full_bottom_up_incidences () const

bool has_vertex_bottom_up_incidences () const

bool has_edge_bottom_up_incidences () const

bool has_face_bottom_up_incidences () const

void enable_deferred_deletion (bool _enable=true)

bool deferred_deletion_enabled () const

void enable_fast_deletion (bool _enable=true)

bool fast_deletion_enabled () const

HalfFaceHandle adjacent_halfface_in_cell (const HalfFaceHandle &_halfFaceHandle, const HalfEdgeHandle &_halfEdgeHandle) const
 Get halfface that is adjacent (w.r.t. a common halfedge) within the same cell. More...

CellHandle incident_cell (const HalfFaceHandle &_halfFaceHandle) const
 Get cell that is incident to the given halfface.

bool is_boundary (const HalfFaceHandle &_halfFaceHandle) const

bool is_boundary (const FaceHandle &_faceHandle) const

bool is_boundary (const EdgeHandle &_edgeHandle) const

bool is_boundary (const HalfEdgeHandle &_halfedgeHandle) const

bool is_boundary (const VertexHandle &_vertexHandle) const

bool is_boundary (const CellHandle &_cellHandle) const

size_t n_vertices_in_cell (const CellHandle &_ch) const

Edge opposite_halfedge (const Edge &_edge) const

Face opposite_halfface (const Face &_face) const

bool needs_garbage_collection () const

- Public Member Functions inherited from OpenVolumeMesh::ResourceManager
 ResourceManager (const ResourceManager &other)

 ResourceManager (ResourceManager &&other)

ResourceManager & operator= (const ResourceManager &other)

ResourceManager & operator= (ResourceManager &&other)

void resize_vprops (size_t _nv)
 Change size of stored vertex properties.

void resize_eprops (size_t _ne)
 Change size of stored edge properties.

void resize_fprops (size_t _nf)
 Change size of stored face properties.

void resize_cprops (size_t _nc)
 Change size of stored cell properties.

void clear_vertex_props ()

void clear_edge_props ()

void clear_halfedge_props ()

void clear_face_props ()

void clear_halfface_props ()

void clear_cell_props ()

void clear_mesh_props ()

template<typename T , typename EntityTag >
PropertyTT< T, EntityTag > request_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
VertexPropertyT< T > request_vertex_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
EdgePropertyT< T > request_edge_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
HalfEdgePropertyT< T > request_halfedge_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
FacePropertyT< T > request_face_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
HalfFacePropertyT< T > request_halfface_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
CellPropertyT< T > request_cell_property (const std::string &_name=std::string(), const T _def=T())

template<class T >
MeshPropertyT< T > request_mesh_property (const std::string &_name=std::string(), const T _def=T())

size_t n_vertex_props () const

size_t n_edge_props () const

size_t n_halfedge_props () const

size_t n_face_props () const

size_t n_halfface_props () const

size_t n_cell_props () const

size_t n_mesh_props () const

template<typename T , class EntityTag >
void set_persistent (PropertyTT< T, EntityTag > &_prop, bool _flag=true)

Properties::const_iterator vertex_props_begin () const

Properties::const_iterator vertex_props_end () const

Properties::const_iterator edge_props_begin () const

Properties::const_iterator edge_props_end () const

Properties::const_iterator halfedge_props_begin () const

Properties::const_iterator halfedge_props_end () const

Properties::const_iterator face_props_begin () const

Properties::const_iterator face_props_end () const

Properties::const_iterator halfface_props_begin () const

Properties::const_iterator halfface_props_end () const

Properties::const_iterator cell_props_begin () const

Properties::const_iterator cell_props_end () const

Properties::const_iterator mesh_props_begin () const

Properties::const_iterator mesh_props_end () const

template<class PropT >
bool vertex_property_exists (const std::string &_name) const

template<class PropT >
bool edge_property_exists (const std::string &_name) const

template<class PropT >
bool halfedge_property_exists (const std::string &_name) const

template<class PropT >
bool face_property_exists (const std::string &_name) const

template<class PropT >
bool halfface_property_exists (const std::string &_name) const

template<class PropT >
bool cell_property_exists (const std::string &_name) const

template<class PropT >
bool mesh_property_exists (const std::string &_name) const


Static Public Member Functions

static unsigned char opposite_orientation (const unsigned char _d)

static unsigned char orthogonal_orientation (const unsigned char _o1, const unsigned char _o2)

- Static Public Member Functions inherited from OpenVolumeMesh::TopologyKernel
static HalfEdgeHandle halfedge_handle (const EdgeHandle &_h, const unsigned char _subIdx)
 Conversion function.

static HalfFaceHandle halfface_handle (const FaceHandle &_h, const unsigned char _subIdx)
 Conversion function.

static EdgeHandle edge_handle (const HalfEdgeHandle &_h)
 Handle conversion.

static FaceHandle face_handle (const HalfFaceHandle &_h)

static HalfEdgeHandle opposite_halfedge_handle (const HalfEdgeHandle &_h)

static HalfFaceHandle opposite_halfface_handle (const HalfFaceHandle &_h)


Static Public Attributes

static const unsigned char XF = 0

static const unsigned char XB = 1

static const unsigned char YF = 2

static const unsigned char YB = 3

static const unsigned char ZF = 4

static const unsigned char ZB = 5

static const unsigned char INVALID = 6

- Static Public Attributes inherited from OpenVolumeMesh::TopologyKernel
static const VertexHandle InvalidVertexHandle = VertexHandle(-1)

static const EdgeHandle InvalidEdgeHandle = EdgeHandle(-1)

static const FaceHandle InvalidFaceHandle = FaceHandle(-1)

static const CellHandle InvalidCellHandle = CellHandle(-1)

static const HalfEdgeHandle InvalidHalfEdgeHandle = HalfEdgeHandle(-1)

static const HalfFaceHandle InvalidHalfFaceHandle = HalfFaceHandle(-1)


Private Member Functions

bool check_halfface_ordering (const std::vector< HalfFaceHandle > &_hfs) const

const HalfFaceHandle & get_adjacent_halfface (const HalfFaceHandle &_hfh, const HalfEdgeHandle &_heh, const std::vector< HalfFaceHandle > &_halffaces) const


Friends

class CellSheetCellIter

class HalfFaceSheetHalfFaceIter

class HexVertexIter


Additional Inherited Members

- Protected Member Functions inherited from OpenVolumeMesh::TopologyKernel
virtual void delete_multiple_vertices (const std::vector< bool > &_tag)

virtual void delete_multiple_edges (const std::vector< bool > &_tag)

virtual void delete_multiple_faces (const std::vector< bool > &_tag)

virtual void delete_multiple_cells (const std::vector< bool > &_tag)

void compute_vertex_bottom_up_incidences ()

void compute_edge_bottom_up_incidences ()

void compute_face_bottom_up_incidences ()

void reorder_incident_halffaces (const EdgeHandle &_eh)

- Protected Member Functions inherited from OpenVolumeMesh::ResourceManager
void vertex_deleted (const VertexHandle &_h)

void edge_deleted (const EdgeHandle &_h)

void face_deleted (const FaceHandle &_h)

void cell_deleted (const CellHandle &_h)

void swap_cell_properties (CellHandle _h1, CellHandle _h2)

void swap_face_properties (FaceHandle _h1, FaceHandle _h2)

void swap_halfface_properties (HalfFaceHandle _h1, HalfFaceHandle _h2)

void swap_edge_properties (EdgeHandle _h1, EdgeHandle _h2)

void swap_halfedge_properties (HalfEdgeHandle _h1, HalfEdgeHandle _h2)

void swap_vertex_properties (VertexHandle _h1, VertexHandle _h2)

template<typename PropIterator , typename Handle >
void swap_property_elements (PropIterator _begin, PropIterator _end, Handle _h1, Handle _h2)

void delete_multiple_vertex_props (const std::vector< bool > &_tags)

void delete_multiple_edge_props (const std::vector< bool > &_tags)

void delete_multiple_face_props (const std::vector< bool > &_tags)

void delete_multiple_cell_props (const std::vector< bool > &_tags)

- Static Protected Member Functions inherited from OpenVolumeMesh::TopologyKernel
template<class Circulator >
static Circulator make_end_circulator (const Circulator &_circ)

- Protected Attributes inherited from OpenVolumeMesh::TopologyKernel
std::vector< std::vector< HalfEdgeHandle > > outgoing_hes_per_vertex_

std::vector< std::vector< HalfFaceHandle > > incident_hfs_per_he_

std::vector< CellHandle > incident_cell_per_hf_

std::vector< Edge > edges_

std::vector< Face > faces_

std::vector< Cell > cells_

std::vector< bool > vertex_deleted_

std::vector< bool > edge_deleted_

std::vector< bool > face_deleted_

std::vector< bool > cell_deleted_

size_t n_deleted_vertices_ = 0

size_t n_deleted_edges_ = 0

size_t n_deleted_faces_ = 0

size_t n_deleted_cells_ = 0


Detailed Description

A data structure basing on PolyhedralMesh with specializations for hexahedra.

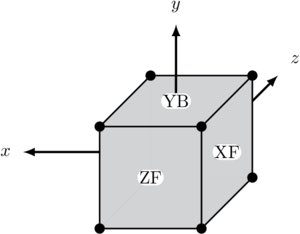

The hexahedron has an induced "virtual" coordinate system. This supposes the incident half-faces to be given in a specific order. See the following figure for an illustration of the induced coordinate system.


The abbreviations XF, XB, etc. are short for

  • XF: X-axis front face
  • XB: X-axis back face
  • YF: Y-axis front face
  • ...

The axes refer to the intrinsic "virtual" axes of the hexahedron. The incident half-faces have to be defined in the following order:

  • 1. XF
  • 2. XB
  • 3. YF
  • 4. YB
  • 5. ZF
  • 6. ZB

Definition at line 78 of file HexahedralMeshTopologyKernel.hh.

Member Function Documentation

◆ add_cell()

CellHandle OpenVolumeMesh::HexahedralMeshTopologyKernel::add_cell ( const std::vector< VertexHandle > &  _vertices,
bool  _topologyCheck = false
)

Add cell via incident vertices.

Test whether all required faces are already defined and, if not, create them. Give vertices in the following order:

 5-------6
/|      /|

/ | / | 3----—2 | | 4-—|–7 | / | / |/ |/ 0----—1

Parameters
_verticesA list of vertices in the correct order
_topologyCheckFlag if a topology check should be performed before adding the cell
Returns
The new hexahedron's cell handle

Definition at line 276 of file HexahedralMeshTopologyKernel.cc.

◆ add_face() [1/2]

FaceHandle OpenVolumeMesh::HexahedralMeshTopologyKernel::add_face ( const std::vector< HalfEdgeHandle > &  _halfedges,
bool  _topologyCheck = false
)
overridevirtual

Add face via incident edges.

Add face via incident edges

Returns
Handle of the new face, InvalidFaceHandle if _halfedges are not connected and _topologyCheck is true.
Warning
If _halfedges are not connected and _topologyCheck is false, the behavior is undefined.

Reimplemented from OpenVolumeMesh::TopologyKernel.

Definition at line 48 of file HexahedralMeshTopologyKernel.cc.

◆ add_face() [2/2]

FaceHandle OpenVolumeMesh::HexahedralMeshTopologyKernel::add_face ( const std::vector< VertexHandle > &  _vertices)
overridevirtual

Add face via incident vertices.

Add face via incident vertices Define the _vertices in counter-clockwise order (from the "outside")

Reimplemented from OpenVolumeMesh::TopologyKernel.

Definition at line 65 of file HexahedralMeshTopologyKernel.cc.

The documentation for this class was generated from the following files:
