OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType > Class Template Reference

Abstract base class for uniform subdivision algorithms. More...

#include <OpenMesh/Tools/Subdivider/Uniform/SubdividerT.hh>

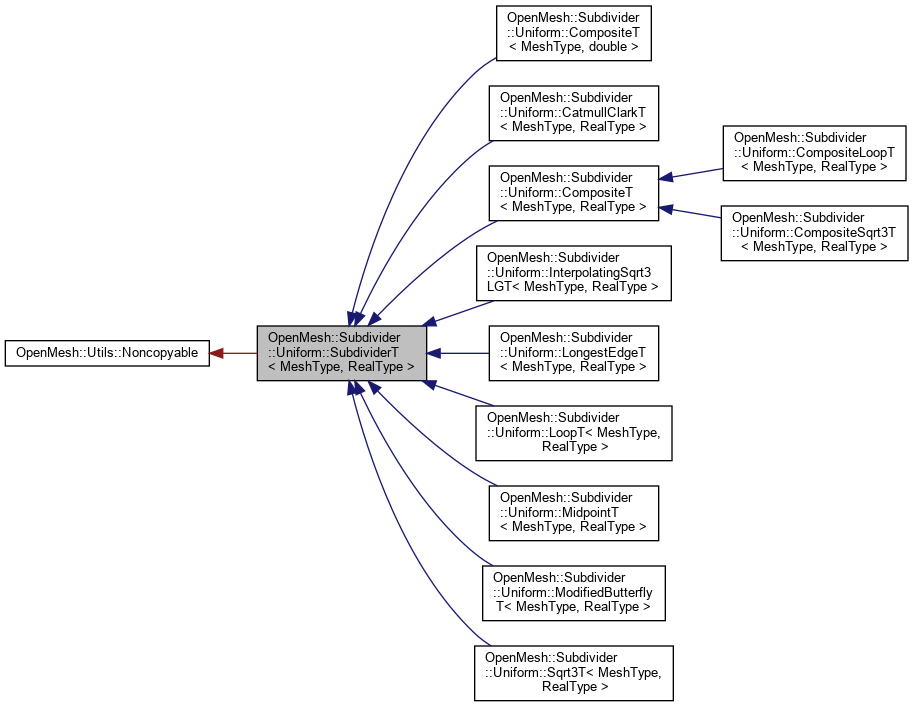

Inheritance diagram for OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >:

Collaboration diagram for OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >:

Public Types
typedef MeshType	mesh_t
typedef RealType	real_t

Public Member Functions
Constructors
	SubdividerT (void)
	Constructor to be used with interface 2. More...
	SubdividerT (MeshType &_m)
	Constructor to be used with interface 1 (calls attach()) More...
virtual	~SubdividerT ()
	Destructor (calls detach())
virtual const char *	name (void) const =0
	Return name of subdivision algorithm. More...
Interface 1
bool	operator() (MeshType &_m, size_t _n, const bool _update_points=true)
	Subdivide the mesh _m _n times. More...
Interface 2
bool	attach (MeshType &_m)
	Attach mesh _m to self. More...
bool	operator() (size_t _n, const bool _update_points=true)
	Subdivide the attached _n times. More...
void	detach (void)
	Detach an eventually attached mesh. More...

Overload theses methods
virtual bool	prepare (MeshType &_m)=0
	Prepare mesh, e.g. add properties. More...
virtual bool	subdivide (MeshType &_m, size_t _n, const bool _update_points=true)=0
	Subdivide mesh _m _n times. More...
virtual bool	cleanup (MeshType &_m)=0
	Cleanup mesh after usage, e.g. remove added properties. More...

Detailed Description

template<typename MeshType, typename RealType = double>
class OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >

Abstract base class for uniform subdivision algorithms.

A derived class must overload the following functions:

1. const char* name() const
2. void prepare(MeshType&)
3. void subdivide(MeshType&, size_t, bool)
4. void cleanup(MeshType&)

Constructor & Destructor Documentation

SubdividerT() [1/2]

template<typename MeshType , typename RealType = double>

OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::SubdividerT ( void  )

inline

Constructor to be used with interface 2.

See also

attach(), operator()(size_t), detach()

SubdividerT() [2/2]

template<typename MeshType , typename RealType = double>

OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::SubdividerT ( MeshType &  _m )

inlineexplicit

Constructor to be used with interface 1 (calls attach())

See also

operator()( MeshType&, size_t )

Member Function Documentation

attach()

template<typename MeshType , typename RealType = double>

bool OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::attach ( MeshType &  _m )

inline

Attach mesh _m to self.

See also

SubdividerT(), operator()(size_t), detach()

cleanup()

template<typename MeshType , typename RealType = double>

virtual bool OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::cleanup ( MeshType &  _m )

protectedpure virtual

Cleanup mesh after usage, e.g. remove added properties.

Implemented in OpenMesh::Subdivider::Uniform::LongestEdgeT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::MidpointT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::LoopT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::ModifiedButterflyT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::CatmullClarkT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::CompositeT< MeshType, double >, OpenMesh::Subdivider::Uniform::InterpolatingSqrt3LGT< MeshType, RealType >, and OpenMesh::Subdivider::Uniform::Sqrt3T< MeshType, RealType >.

detach()

template<typename MeshType , typename RealType = double>

void OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::detach ( void  )

inline

Detach an eventually attached mesh.

See also

SubdividerT(), attach(), operator()(size_t)

name()

template<typename MeshType , typename RealType = double>

virtual const char * OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::name ( void  ) const

pure virtual

Return name of subdivision algorithm.

Implemented in OpenMesh::Subdivider::Uniform::LongestEdgeT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::MidpointT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::CatmullClarkT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::CompositeLoopT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >, OpenMesh::Subdivider::Uniform::LoopT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::ModifiedButterflyT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::InterpolatingSqrt3LGT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::Sqrt3T< MeshType, RealType >, OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >, and OpenMesh::Subdivider::Uniform::CompositeT< MeshType, double >.

operator()() [1/2]

template<typename MeshType , typename RealType = double>

bool OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::operator() ( MeshType &  _m, size_t  _n, const bool  _update_points = true  )

inline

Subdivide the mesh _m _n times.

See also

SubdividerT(MeshType&)

operator()() [2/2]

template<typename MeshType , typename RealType = double>

bool OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::operator() ( size_t  _n, const bool  _update_points = true  )

inline

Subdivide the attached _n times.

See also

SubdividerT(), attach(), detach()

prepare()

template<typename MeshType , typename RealType = double>

virtual bool OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::prepare ( MeshType &  _m )

protectedpure virtual

Prepare mesh, e.g. add properties.

Implemented in OpenMesh::Subdivider::Uniform::LongestEdgeT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::MidpointT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::LoopT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::ModifiedButterflyT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::CatmullClarkT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::CompositeT< MeshType, double >, OpenMesh::Subdivider::Uniform::InterpolatingSqrt3LGT< MeshType, RealType >, and OpenMesh::Subdivider::Uniform::Sqrt3T< MeshType, RealType >.

subdivide()

template<typename MeshType , typename RealType = double>

virtual bool OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::subdivide ( MeshType &  _m, size_t  _n, const bool  _update_points = true  )

protectedpure virtual

Subdivide mesh _m _n times.

Implemented in OpenMesh::Subdivider::Uniform::MidpointT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::LoopT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::LongestEdgeT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::CatmullClarkT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::CompositeT< MeshType, double >, OpenMesh::Subdivider::Uniform::ModifiedButterflyT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::InterpolatingSqrt3LGT< MeshType, RealType >, and OpenMesh::Subdivider::Uniform::Sqrt3T< MeshType, RealType >.

---

The documentation for this class was generated from the following file:

• OpenMesh/Tools/Subdivider/Uniform/SubdividerT.hh
