OpenMesh
OpenMesh::Iterators::GenericIteratorT< Mesh, ValueHandle, MemberOwner, PrimitiveStatusMember, PrimitiveCountMember > Class Template Reference

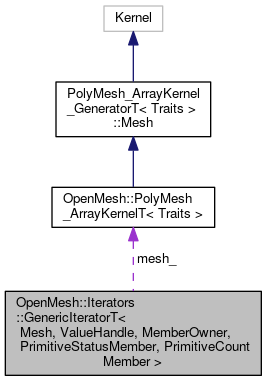

Collaboration diagram for OpenMesh::Iterators::GenericIteratorT< Mesh, ValueHandle, MemberOwner, PrimitiveStatusMember, PrimitiveCountMember >:

Public Types

typedef ValueHandle value_handle

typedef value_handle value_type

typedef std::bidirectional_iterator_tag iterator_category

typedef std::ptrdiff_t difference_type

typedef const value_type & reference

typedef const value_type * pointer

typedef const Meshmesh_ptr

typedef const Meshmesh_ref


Public Member Functions

 GenericIteratorT ()
 Default constructor.

 GenericIteratorT (mesh_ref _mesh, value_handle _hnd, bool _skip=false)
 Construct with mesh and a target handle.

reference operator* () const
 Standard dereferencing operator.

pointer operator-> () const
 Standard pointer operator.

value_handle handle () const
 Get the handle of the item the iterator refers to. More...

 operator value_handle () const
 Cast to the handle of the item the iterator refers to. More...

bool operator== (const GenericIteratorT &_rhs) const
 Are two iterators equal? Only valid if they refer to the same mesh!

bool operator!= (const GenericIteratorT &_rhs) const
 Not equal?

GenericIteratorToperator++ ()
 Standard pre-increment operator.

GenericIteratorT operator++ (int)
 Standard post-increment operator.

GenericIteratorToperator-- ()
 Standard pre-decrement operator.

GenericIteratorT operator-- (int)
 Standard post-decrement operator.

void enable_skipping ()
 Turn on skipping: automatically skip deleted/hidden elements.

void disable_skipping ()
 Turn on skipping: automatically skip deleted/hidden elements.


Protected Attributes

mesh_ptr mesh_

value_handle hnd_

unsigned int skip_bits_


Member Function Documentation

◆ handle()

template<class Mesh , class ValueHandle , class MemberOwner , bool(MemberOwner::*)() const PrimitiveStatusMember, size_t(MemberOwner::*)() const PrimitiveCountMember>
value_handle OpenMesh::Iterators::GenericIteratorT< Mesh, ValueHandle, MemberOwner, PrimitiveStatusMember, PrimitiveCountMember >::handle ( ) const
inline

Get the handle of the item the iterator refers to.

Deprecated:
This function clutters your code. Use dereferencing operators -> and * instead.

◆ operator value_handle()

template<class Mesh , class ValueHandle , class MemberOwner , bool(MemberOwner::*)() const PrimitiveStatusMember, size_t(MemberOwner::*)() const PrimitiveCountMember>
OpenMesh::Iterators::GenericIteratorT< Mesh, ValueHandle, MemberOwner, PrimitiveStatusMember, PrimitiveCountMember >::operator value_handle ( ) const
inline

Cast to the handle of the item the iterator refers to.

Deprecated:
Implicit casts of iterators are unsafe. Use dereferencing operators -> and * instead.

The documentation for this class was generated from the following file:
