OpenMesh::TriMesh_ArrayKernelT< Traits > Class Template Reference

Triangle mesh based on the ArrayKernel. More...

#include <OpenMesh/Core/Mesh/TriMesh_ArrayKernelT.hh>

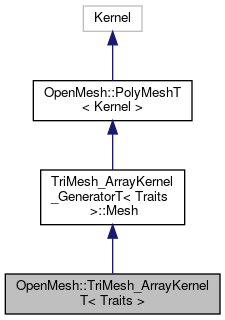

Inheritance diagram for OpenMesh::TriMesh_ArrayKernelT< Traits >:
Collaboration diagram for OpenMesh::TriMesh_ArrayKernelT< Traits >:

Public Member Functions

template<class OtherTraits >
 TriMesh_ArrayKernelT (const PolyMesh_ArrayKernelT< OtherTraits > &t)

- Public Member Functions inherited from OpenMesh::TriMeshT< Kernel >
 TriMeshT ()
 Default constructor.

 TriMeshT (PolyMesh rhs)

virtual ~TriMeshT ()
 Destructor.

HalfedgeHandle vertex_split (Point _v0_point, VertexHandle _v1, VertexHandle _vl, VertexHandle _vr)
 Vertex Split: inverse operation to collapse(). More...

HalfedgeHandle vertex_split (VertexHandle _v0, VertexHandle _v1, VertexHandle _vl, VertexHandle _vr)
 Vertex Split: inverse operation to collapse(). More...

SmartVertexHandle split (EdgeHandle _eh, const Point &_p)
 Edge split (= 2-to-4 split) More...

SmartVertexHandle split_copy (EdgeHandle _eh, const Point &_p)
 Edge split (= 2-to-4 split) More...

void split (EdgeHandle _eh, VertexHandle _vh)
 Edge split (= 2-to-4 split) More...

void split_copy (EdgeHandle _eh, VertexHandle _vh)
 Edge split (= 2-to-4 split) More...

SmartVertexHandle split (FaceHandle _fh, const Point &_p)
 Face split (= 1-to-3 split, calls corresponding PolyMeshT function). More...

SmartVertexHandle split_copy (FaceHandle _fh, const Point &_p)
 Face split (= 1-to-3 split, calls corresponding PolyMeshT function). More...

void split (FaceHandle _fh)
 Face split (= 1-to-4) split, splits edges at midpoints and adds 4 new faces in the interior). More...

void split (FaceHandle _fh, VertexHandle _vh)
 Face split (= 1-to-3 split, calls corresponding PolyMeshT function). More...

void split_copy (FaceHandle _fh, VertexHandle _vh)
 Face split (= 1-to-3 split, calls corresponding PolyMeshT function). More...

Scalar calc_face_area (FaceHandle _fh) const
 Calculates the area of a face. More...

Normal calc_face_normal (FaceHandle _fh) const
 Calculate normal vector for face _fh (specialized for TriMesh). More...

- Public Member Functions inherited from OpenMesh::PolyMeshT< Kernel >
template<typename T >
 PolyMeshT (const T &t)

SmartVertexHandle new_vertex ()
 Uses default copy and assignment operator. More...

SmartVertexHandle new_vertex (const Point &_p)
 Adds a new vertex initialized to a custom position. More...

SmartVertexHandle new_vertex_dirty (const Point &_p)
 Same as new_vertex(const Point&) but never shrinks, only enlarges the vertex property vectors. More...

SmartVertexHandle add_vertex (const Point &_p)
 Alias for new_vertex(const Point&).

SmartVertexHandle add_vertex_dirty (const Point &_p)
 Alias for new_vertex_dirty().

void calc_edge_vector (EdgeHandle _eh, Normal &_edge_vec) const
 Calculates the edge vector as the vector defined by the halfedge with id #0 (see below)

Normal calc_edge_vector (EdgeHandle _eh) const
 Calculates the edge vector as the vector defined by the halfedge with id #0 (see below)

void calc_edge_vector (HalfedgeHandle _heh, Normal &_edge_vec) const
 Calculates the edge vector as the difference of the the points defined by to_vertex_handle() and from_vertex_handle()

Normal calc_edge_vector (HalfedgeHandle _heh) const
 Calculates the edge vector as the difference of the the points defined by to_vertex_handle() and from_vertex_handle()

Scalar calc_edge_length (EdgeHandle _eh) const

Scalar calc_edge_length (HalfedgeHandle _heh) const
 Calculates the length of the edge _heh.

Scalar calc_edge_sqr_length (EdgeHandle _eh) const

Scalar calc_edge_sqr_length (HalfedgeHandle _heh) const

Point calc_edge_midpoint (HalfedgeHandle _heh) const
 Calculates the midpoint of the halfedge _heh, defined by the positions of the two incident vertices.

Point calc_edge_midpoint (EdgeHandle _eh) const
 Calculates the midpoint of the edge _eh, defined by the positions of the two incident vertices.

Normal calc_normal (EdgeHandle _eh) const
 calculated and returns the average of the two vertex normals

void calc_sector_vectors (HalfedgeHandle _in_heh, Normal &_vec0, Normal &_vec1) const
 defines a consistent representation of a sector geometry: the halfedge _in_heh defines the sector orientation the vertex pointed by _in_heh defines the sector center _vec0 and _vec1 are resp. More...

Scalar calc_sector_angle (HalfedgeHandle _in_heh) const
 calculates the sector angle. More...

void calc_sector_normal (HalfedgeHandle _in_heh, Normal &_sector_normal) const
 calculates the normal (non-normalized) of the face sector defined by the angle <(_in_heh,next_halfedge(_in_heh))

Scalar calc_sector_area (HalfedgeHandle _in_heh) const
 calculates the area of the face sector defined by the angle <(_in_heh,next_halfedge(_in_heh)) NOTE: special cases (e.g. More...

Scalar calc_dihedral_angle_fast (HalfedgeHandle _heh) const
 calculates the dihedral angle on the halfedge _heh More...

Scalar calc_dihedral_angle_fast (EdgeHandle _eh) const
 calculates the dihedral angle on the edge _eh More...

Scalar calc_dihedral_angle (HalfedgeHandle _heh) const

Scalar calc_dihedral_angle (EdgeHandle _eh) const

unsigned int find_feature_edges (Scalar _angle_tresh=OpenMesh::deg_to_rad(44.0))
 tags an edge as a feature if its dihedral angle is larger than _angle_tresh returns the number of the found feature edges, requires edge_status property

void split (FaceHandle _fh, const Point &_p)
 Face split (= 1-to-n split)

void split (FaceHandle _fh, VertexHandle _vh)

void split (EdgeHandle _eh, const Point &_p)

void split (EdgeHandle _eh, VertexHandle _vh)

void update_normals ()
 Compute normals for all primitives. More...

void update_normal (FaceHandle _fh)
 Update normal for face _fh.

void update_face_normals ()
 Update normal vectors for all faces. More...

Normal calc_face_normal (const Point &_p0, const Point &_p1, const Point &_p2) const
 Calculate normal vector for face (_p0, _p1, _p2). More...

Normal calc_normal (FaceHandle _fh) const
 same as calc_face_normal

void calc_face_centroid (FaceHandle _fh, Point &_pt) const
 calculates the average of the vertices defining _fh

Point calc_face_centroid (FaceHandle _fh) const
 Computes and returns the average of the vertices defining _fh.

Point calc_centroid (FaceHandle _fh) const
 Computes and returns the average of the vertices defining _fh (same as calc_face_centroid)

Point calc_centroid (EdgeHandle _eh) const
 Computes and returns the average of the vertices defining _eh (same as calc_edge_midpoint)

Point calc_centroid (HalfedgeHandle _heh) const
 Computes and returns the average of the vertices defining _heh (same as calc_edge_midpoint for edge of halfedge)

Point calc_centroid (VertexHandle _vh) const
 Returns the point of _vh.

Point calc_centroid (MeshHandle _mh) const
 Computes and returns the average of the vertices defining the mesh.

void update_normal (HalfedgeHandle _heh, const double _feature_angle=0.8)
 Update normal for halfedge _heh.

void update_halfedge_normals (const double _feature_angle=0.8)
 Update normal vectors for all halfedges. More...

virtual Normal calc_halfedge_normal (HalfedgeHandle _heh, const double _feature_angle=0.8) const
 Calculate halfedge normal for one specific halfedge. More...

Normal calc_normal (HalfedgeHandle, const double _feature_angle=0.8) const
 same as calc_halfedge_normal

bool is_estimated_feature_edge (HalfedgeHandle _heh, const double _feature_angle) const
 identifies feature edges w.r.t. More...

void update_normal (VertexHandle _vh)
 Update normal for vertex _vh.

void update_vertex_normals ()
 Update normal vectors for all vertices. More...

Normal calc_vertex_normal (VertexHandle _vh) const
 Calculate vertex normal for one specific vertex. More...

void calc_vertex_normal_fast (VertexHandle _vh, Normal &_n) const
 Different methods for calculation of the normal at _vh: More...

void calc_vertex_normal_correct (VertexHandle _vh, Normal &_n) const
 Compute normals for all primitives. More...

void calc_vertex_normal_loop (VertexHandle _vh, Normal &_n) const
 Compute normals for all primitives. More...

Normal calc_normal (VertexHandle _vh) const
 same as calc_vertex_normal_correct


Additional Inherited Members

- Public Types inherited from OpenMesh::TriMeshT< Kernel >
typedef TriMeshT< Kernel > This

typedef PolyMeshT< Kernel > PolyMesh

typedef PolyMesh::Scalar Scalar

typedef PolyMesh::Point Point

typedef PolyMesh::Normal Normal

typedef PolyMesh::Color Color

typedef PolyMesh::TexCoord1D TexCoord1D

typedef PolyMesh::TexCoord2D TexCoord2D

typedef PolyMesh::TexCoord3D TexCoord3D

typedef PolyMesh::Vertex Vertex

typedef PolyMesh::Halfedge Halfedge

typedef PolyMesh::Edge Edge

typedef PolyMesh::Face Face

typedef PolyMesh::VertexHandle VertexHandle

typedef PolyMesh::HalfedgeHandle HalfedgeHandle

typedef PolyMesh::EdgeHandle EdgeHandle

typedef PolyMesh::FaceHandle FaceHandle

typedef PolyMesh::VertexIter VertexIter

typedef PolyMesh::ConstVertexIter ConstVertexIter

typedef PolyMesh::EdgeIter EdgeIter

typedef PolyMesh::ConstEdgeIter ConstEdgeIter

typedef PolyMesh::FaceIter FaceIter

typedef PolyMesh::ConstFaceIter ConstFaceIter

typedef PolyMesh::VertexVertexIter VertexVertexIter

typedef PolyMesh::VertexOHalfedgeIter VertexOHalfedgeIter

typedef PolyMesh::VertexIHalfedgeIter VertexIHalfedgeIter

typedef PolyMesh::VertexEdgeIter VertexEdgeIter

typedef PolyMesh::VertexFaceIter VertexFaceIter

typedef PolyMesh::FaceVertexIter FaceVertexIter

typedef PolyMesh::FaceHalfedgeIter FaceHalfedgeIter

typedef PolyMesh::FaceEdgeIter FaceEdgeIter

typedef PolyMesh::FaceFaceIter FaceFaceIter

typedef PolyMesh::ConstVertexVertexIter ConstVertexVertexIter

typedef PolyMesh::ConstVertexOHalfedgeIter ConstVertexOHalfedgeIter

typedef PolyMesh::ConstVertexIHalfedgeIter ConstVertexIHalfedgeIter

typedef PolyMesh::ConstVertexEdgeIter ConstVertexEdgeIter

typedef PolyMesh::ConstVertexFaceIter ConstVertexFaceIter

typedef PolyMesh::ConstFaceVertexIter ConstFaceVertexIter

typedef PolyMesh::ConstFaceHalfedgeIter ConstFaceHalfedgeIter

typedef PolyMesh::ConstFaceEdgeIter ConstFaceEdgeIter

typedef PolyMesh::ConstFaceFaceIter ConstFaceFaceIter

enum  { IsPolyMesh = 0 }
 Determine whether this is a PolyMeshT or TriMeshT (This function does not check the per face vertex count! It only checks if the datatype is PolyMeshT or TriMeshT)

enum  { IsTriMesh = 1 }
 Determine whether this is a PolyMeshT or TriMeshT (This function does not check the per face vertex count! It only checks if the datatype is PolyMeshT or TriMeshT)

using ConnectivityTag = TriConnectivityTag
 Determine whether this is a PolyMeshT or TriMeshT (This function does not check the per face vertex count! It only checks if the datatype is PolyMeshT or TriMeshT)

- Public Types inherited from OpenMesh::PolyMeshT< Kernel >
typedef PolyMeshT< Kernel > This
 Self type. Used to specify iterators/circulators.

typedef Kernel::VertexHandle VertexHandle
 Handle for referencing the corresponding item.

typedef Kernel::HalfedgeHandle HalfedgeHandle

typedef Kernel::EdgeHandle EdgeHandle

typedef Kernel::FaceHandle FaceHandle

typedef Kernel::VertexIter VertexIter

typedef Kernel::HalfedgeIter HalfedgeIter

typedef Kernel::EdgeIter EdgeIter

typedef Kernel::FaceIter FaceIter

typedef Kernel::ConstVertexIter ConstVertexIter

typedef Kernel::ConstHalfedgeIter ConstHalfedgeIter

typedef Kernel::ConstEdgeIter ConstEdgeIter

typedef Kernel::ConstFaceIter ConstFaceIter

typedef Kernel::Scalar Scalar
 Scalar type.

typedef Kernel::Point Point
 Coordinate type.

typedef Kernel::Normal Normal
 Normal type.

typedef Kernel::Color Color
 Color type.

typedef Kernel::TexCoord1D TexCoord1D
 TexCoord1D type.

typedef Kernel::TexCoord2D TexCoord2D
 TexCoord2D type.

typedef Kernel::TexCoord3D TexCoord3D
 TexCoord3D type.

typedef Kernel::Vertex Vertex
 Vertex type.

typedef Kernel::Halfedge Halfedge
 Halfedge type.

typedef Kernel::Edge Edge
 Edge type.

typedef Kernel::Face Face
 Face type.

typedef Kernel::VertexVertexIter VertexVertexIter
 Circulator.

typedef Kernel::VertexOHalfedgeIter VertexOHalfedgeIter
 Circulator.

typedef Kernel::VertexIHalfedgeIter VertexIHalfedgeIter
 Circulator.

typedef Kernel::VertexEdgeIter VertexEdgeIter
 Circulator.

typedef Kernel::VertexFaceIter VertexFaceIter
 Circulator.

typedef Kernel::FaceVertexIter FaceVertexIter
 Circulator.

typedef Kernel::FaceHalfedgeIter FaceHalfedgeIter
 Circulator.

typedef Kernel::FaceEdgeIter FaceEdgeIter
 Circulator.

typedef Kernel::FaceFaceIter FaceFaceIter
 Circulator.

typedef Kernel::ConstVertexVertexIter ConstVertexVertexIter
 Circulator.

typedef Kernel::ConstVertexOHalfedgeIter ConstVertexOHalfedgeIter
 Circulator.

typedef Kernel::ConstVertexIHalfedgeIter ConstVertexIHalfedgeIter
 Circulator.

typedef Kernel::ConstVertexEdgeIter ConstVertexEdgeIter
 Circulator.

typedef Kernel::ConstVertexFaceIter ConstVertexFaceIter
 Circulator.

typedef Kernel::ConstFaceVertexIter ConstFaceVertexIter
 Circulator.

typedef Kernel::ConstFaceHalfedgeIter ConstFaceHalfedgeIter
 Circulator.

typedef Kernel::ConstFaceEdgeIter ConstFaceEdgeIter
 Circulator.

typedef Kernel::ConstFaceFaceIter ConstFaceFaceIter
 Circulator.

enum  { IsPolyMesh = 1 }
 Determine whether this is a PolyMeshT or TriMeshT (This function does not check the per face vertex count! It only checks if the datatype is PolyMeshT or TriMeshT)

enum  { IsTriMesh = 0 }
 Determine whether this is a PolyMeshT or TriMeshT (This function does not check the per face vertex count! It only checks if the datatype is PolyMeshT or TriMeshT)

using ConnectivityTag = PolyConnectivityTag
 Determine whether this is a PolyMeshT or TriMeshT (This function does not check the per face vertex count! It only checks if the datatype is PolyMeshT or TriMeshT)

- Static Public Member Functions inherited from OpenMesh::TriMeshT< Kernel >
static constexpr bool is_polymesh ()
 Determine whether this is a PolyMeshT or TriMeshT (This function does not check the per face vertex count! It only checks if the datatype is PolyMeshT or TriMeshT)

static constexpr bool is_trimesh ()
 Determine whether this is a PolyMeshT or TriMeshT (This function does not check the per face vertex count! It only checks if the datatype is PolyMeshT or TriMeshT)

- Static Public Member Functions inherited from OpenMesh::PolyMeshT< Kernel >
static constexpr bool is_polymesh ()
 Determine whether this is a PolyMeshT or TriMeshT (This function does not check the per face vertex count! It only checks if the datatype is PolyMeshT or TriMeshT)

static constexpr bool is_trimesh ()
 Determine whether this is a PolyMeshT or TriMeshT (This function does not check the per face vertex count! It only checks if the datatype is PolyMeshT or TriMeshT)


Detailed Description

template<class Traits = DefaultTraits>
class OpenMesh::TriMesh_ArrayKernelT< Traits >

Triangle mesh based on the ArrayKernel.

See also
OpenMesh::TriMeshT
OpenMesh::ArrayKernelT

The documentation for this class was generated from the following files:

Project OpenMesh, ©  Computer Graphics Group, RWTH Aachen. Documentation generated using doxygen .
