OpenMesh::Decimater::CollapseInfoT< Mesh > Struct Template Reference

Stores information about a halfedge collapse. More...

#include <OpenMesh/Tools/Decimater/CollapseInfoT.hh>

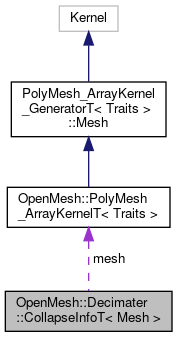

Collaboration diagram for OpenMesh::Decimater::CollapseInfoT< Mesh >:

Public Member Functions

 CollapseInfoT (Mesh &_mesh, typename Mesh::HalfedgeHandle _heh)
 Initializing constructor. More...


Public Attributes

Mesh & mesh

Mesh::HalfedgeHandle v0v1
 Halfedge to be collapsed.

Mesh::HalfedgeHandle v1v0
 Reverse halfedge.

Mesh::VertexHandle v0
 Vertex to be removed.

Mesh::VertexHandle v1
 Remaining vertex.

Mesh::Point p0
 Position of removed vertex.

Mesh::Point p1
 Positions of remaining vertex.

Mesh::FaceHandle fl
 Left face.

Mesh::FaceHandle fr
 Right face.

Mesh::VertexHandle vl
 Left vertex.

Mesh::VertexHandle vr
 Right vertex.

Mesh::HalfedgeHandle vlv1
 Outer remaining halfedge of diamond spanned by v0, v1, vl, and vr.

Mesh::HalfedgeHandle v0vl
 Outer remaining halfedge of diamond spanned by v0, v1, vl, and vr.

Mesh::HalfedgeHandle vrv0
 Outer remaining halfedge of diamond spanned by v0, v1, vl, and vr.

Mesh::HalfedgeHandle v1vr
 Outer remaining halfedge of diamond spanned by v0, v1, vl, and vr.


Detailed Description

template<class Mesh>
struct OpenMesh::Decimater::CollapseInfoT< Mesh >

Stores information about a halfedge collapse.

The class stores information about a halfedge collapse. The most important information is v0v1, v1v0, v0, v1, vl, vr, which you can lookup in the following image:

See also
ModProgMeshT::Info

Constructor & Destructor Documentation

◆ CollapseInfoT()

template<class Mesh >
OpenMesh::Decimater::CollapseInfoT< Mesh >::CollapseInfoT ( Mesh &  _mesh,
typename Mesh::HalfedgeHandle  _heh
)
inline

Initializing constructor.

Local configuration of halfedge collapse to be stored in CollapseInfoT:

Given a mesh and a halfedge handle of the halfedge to be collapsed all important information of a halfedge collapse will be stored.

Parameters
_meshMesh source
_hehHalfedge to collapse. The direction of the halfedge defines the direction of the collapse, i.e. the from-vertex will be removed and the to-vertex remains.

vl

  • / \ / \ / fl \ v0 ---—> v1 \ fr / \ / \ /
  • vr
Parameters
_meshReference to mesh
_hehThe halfedge (v0 -> v1) defining the collapse

The documentation for this struct was generated from the following file:
