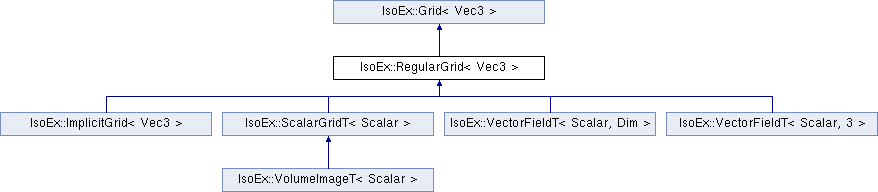

Inheritance diagram for IsoEx::RegularGrid< Vec3 >:

Classes
struct	Intersection

Public Types
typedef ACG::Matrix4x4T < typename Vec3::value_type >	Matrix

typedef Vec3::value_type	real

typedef Grid< Vec3 >::CubeIdx	CubeIdx
	CubeIdx can be used to refer to cubes.

typedef Grid< Vec3 >::PointIdx	PointIdx
	The grid points can be referred to by PointIdx.

Public Types inherited from IsoEx::Grid< Vec3 >
typedef Vec3	Vec3

typedef Vec3::value_type	real

typedef unsigned int	CubeIdx
	CubeIdx can be used to refer to cubes.

typedef unsigned int	PointIdx
	The grid points can be referred to by PointIdx.

Public Member Functions
	RegularGrid (const Vec3 &_origin=Vec3(0, 0, 0), const Vec3 &_x_axis=Vec3(1, 0, 0), const Vec3 &_y_axis=Vec3(0, 1, 0), const Vec3 &_z_axis=Vec3(0, 0, 1), unsigned int _x_res=1, unsigned int _y_res=1, unsigned int _z_res=1)

void	initialize (const Vec3 &_origin, const Vec3 &_x_axis, const Vec3 &_y_axis, const Vec3 &_z_axis, unsigned int _x_res, unsigned int _y_res, unsigned int _z_res)
	function to initialize the grid

unsigned int	n_cubes () const
	Return number of cubes.

unsigned int	n_points () const
	Return number of points.

PointIdx	point_idx (CubeIdx _idx, unsigned char _corner) const
	Return the PointIdx of the _corners'th corner of the cube _idx.

Vec3	point (PointIdx _idx) const
	Return the 3D point refered to by _idx.

Vec3	point (int x, int y, int z) const
	Return the 3D point refered to by x,y,z.

PointIdx	nearest_point (const Vec3 &_p)
	Return the nearest grid point.

const Vec3 &	origin () const

const Vec3 &	x_axis () const

const Vec3 &	y_axis () const

const Vec3 &	z_axis () const

const Vec3 &	dx () const

const Vec3 &	dy () const

const Vec3 &	dz () const

unsigned int	x_resolution () const

unsigned int	y_resolution () const

unsigned int	z_resolution () const

Vec3	to_local (const Vec3 &_pw)
	transforms a point to local cube coordinates

Vec3	to_world (const Vec3 &_pl)
	transforms a point for local cube coordinates to world coordinates

bool	ray_intersect_local (const Vec3 &_o, const Vec3 &_d, Vec3 &_entry, Vec3 &_exit)
	function to intersect a Ray with the cube ( local coordinates )

real	volume ()
	returns the volume of the grid

virtual real	outer_surface ()
	returns the outer surface of the grid

Public Member Functions inherited from IsoEx::Grid< Vec3 >
	Grid ()
	Default constructor.

virtual	~Grid ()
	Destructor.

CubeIterator	begin () const
	Returns begin iterator for the grid's cubes.

CubeIterator	end () const
	Returns end iterator for the grid's cubes.

virtual PointIdx	point_idx (CubeIdx _idx, unsigned char _corner) const =0
	Return the PointIdx of the _corners'th corner of the cube _idx.

virtual Vec3	point (PointIdx _idx) const =0
	Return the 3D point refered to by _idx.

virtual bool	is_inside (PointIdx _pidx) const =0
	See IsoEx::Implicit::is_inside()

virtual real	scalar_distance (PointIdx _pidx) const =0
	See IsoEx::Implicit::scalar_distance()

virtual bool	directed_distance (const Vec3 &_p0, const Vec3 &_p1, Vec3 &_point, Vec3 &_normal, real &_distance) const =0
	See IsoEx::Implicit::directed_distance()

Protected Attributes
Matrix	to_local_

Matrix	to_world_

Vec3	origin_

Vec3	x_axis_

Vec3	y_axis_

Vec3	z_axis_

Vec3	dx_

Vec3	dy_

Vec3	dz_

unsigned int	x_res_

unsigned int	y_res_

unsigned int	z_res_

unsigned int	n_cubes_

unsigned int	n_points_

CubeIdx	offsets_ [8]

Detailed Description

template<class Vec3>
class IsoEx::RegularGrid< Vec3 >

This class implements a regular 3D grid.

Constructor & Destructor Documentation

template<class Vec3>

IsoEx::RegularGrid< Vec3 >::RegularGrid	(	const Vec3 &	_origin = `Vec3( 0, 0, 0 )`,
		const Vec3 &	_x_axis = `Vec3( 1, 0, 0 )`,
		const Vec3 &	_y_axis = `Vec3( 0, 1, 0 )`,
		const Vec3 &	_z_axis = `Vec3( 0, 0, 1 )`,
		unsigned int	_x_res = `1`,
		unsigned int	_y_res = `1`,
		unsigned int	_z_res = `1`
	)

inline

Constructor: given the implicit to be sampled, the grids extend in 3-space (origin and 3 axes) as well as the resolution (number of steps) of the axes. The grid will contain _x_res*_y_res*_z_res points and (_x_res-1)*(_y_res-1)*(_z_res-1) cubes.

Note: The resolution of each axis has to be less than 1024. This is to make sure that a cube or point can be represented by one integer.

The documentation for this class was generated from the following files:

Grids/RegularGridT.hh
Grids/RegularGridT.cc
