ACG::SceneGraph::LineNode Class Reference

#include <ACG/Scenegraph/LineNode.hh>

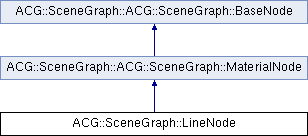

Inheritance diagram for ACG::SceneGraph::LineNode:
ACG::SceneGraph::ACG::SceneGraph::MaterialNode ACG::SceneGraph::ACG::SceneGraph::BaseNode

Public Types

enum  LineMode { LineSegmentsMode, PolygonMode }
 Line mode: draw line segments (every 2 points) or ONE polyline.

typedef ACG::Vec3uc Color

typedef ACG::Vec4f Color4f

typedef std::vector< Vec3dPointVector

typedef PointVector::iterator PointIter

typedef PointVector::const_iterator ConstPointIter

typedef std::vector< ACG::Vec3ucColorVector

typedef ColorVector::iterator ColorIter

typedef ColorVector::const_iterator ConstColorIter

typedef std::vector< Color4fColor4fVector

typedef Color4fVector::iterator Color4fIter

typedef
Color4fVector::const_iterator
ConstColor4fIter

typedef Vec3d value_type

typedef Vec3dreference

typedef const Vec3dconst_reference

- Public Types inherited from ACG::SceneGraph::ACG::SceneGraph::MaterialNode
enum  ApplyProperties {
  None =0, All =0xffff, BaseColor =1, Material =2,
  PointSize =4, LineWidth =8, RoundPoints =16, LineSmooth =32,
  AlphaTest =64, Blending =128, BackFaceCulling =256, ColorMaterial =512,
  MultiSampling =1024
}
 Apply which properties? Others will be ignored. Values may be OR'ed. More...

- Public Types inherited from ACG::SceneGraph::ACG::SceneGraph::BaseNode
enum  StatusMode { Active = 0x1, HideNode = 0x2, HideChildren = 0x4, HideSubtree = 0x8 }
 Status modi. More...

enum  TraverseMode { NodeFirst = 0x1, ChildrenFirst = 0x2, SecondPass = 0x4 }
 Node traverse types. More...

typedef std::list< BaseNode * >
::const_iterator
ConstChildIter
 allows to iterate over children

typedef std::list< BaseNode * >
::iterator
ChildIter
 allows to iterate over children

typedef std::list< BaseNode * >
::const_reverse_iterator
ConstChildRIter
 allows to reverse iterate over children

typedef std::list< BaseNode * >
::reverse_iterator
ChildRIter
 allows to reverse iterate over children

enum  PASSES {
  NOPASS = 0, ALLPASSES = 1 << 0, PASS_1 = 1 << 1, PASS_2 = 1 << 2,
  PASS_3 = 1 << 3, PASS_4 = 1 << 4, PASS_5 = 1 << 5, PASS_6 = 1 << 6,
  PASS_7 = 1 << 7, PASS_8 = 1 << 8
}
 This enum should be used to enable rendering of a node in different.

typedef unsigned int MultipassBitMask
 Multipass pass bit mask type.


Public Member Functions

 LineNode (LineMode _mode, BaseNode *_parent=0, std::string _name="<LineNode>")
 default constructor

 ~LineNode ()
 destructor

void set_line_mode (LineMode _mode)
 set line mode (see LineNode::LineMode)

 ACG_CLASSNAME (LineNode)
 static name of this class

DrawModes::DrawMode availableDrawModes () const
 return available draw modes

void boundingBox (Vec3d &_bbMin, Vec3d &_bbMax)
 update bounding box

void enter (GLState &_state, const DrawModes::DrawMode &_drawMode)
 set depth function (needed for lasso selection so that the line can be draw in pseudo-2D)

void draw (GLState &_state, const DrawModes::DrawMode &_drawMode)
 draw lines and normals

void leave (GLState &_state, const DrawModes::DrawMode &_drawMode)
 reset depth function to what it was before enter()

void pick (GLState &_state, PickTarget _target)
 Draw the line using the GL picking name stack.

void reserve_lines (unsigned int _n)
 reserve mem for _n lines

void reserve_points (unsigned int _n)
 reserve mem for _n points

void clear ()
 clear points/lines and colors

void clear_points ()
 clear points/lines

void clear_colors ()
 clear colors

void set_color (const Vec4f &_c)
 Override material node's set color function in order to locally add color.

void add_point (const Vec3d &_v)
 add point (for LineMode == PolygonMode)

void add_line (const Vec3d &_v0, const Vec3d &_v1)
 add line (for LineMode == LineSegmentsMode)

void add_color (const ACG::Vec3uc &_c)
 add color (only for LineMode == LineSegmentsMode)

void add_color (const Color4f _c)
 add color 4f (only for LineMode == LineSegmentsMode)

void set_picking_line_width (float _width)
 set line width used by the picking renderer

float picking_line_width () const
 get line width used by the picking renderer. Defaults to line_width().

size_t n_points () const
 number of points

const PointVector & points () const
 return reference to point vector More...

ColorVector & colors ()
 get and set color container More...

bool & alwaysOnTop ()
 get and set always on top

void updateVBO ()

void push_back (const Vec3d &_v)
 STL conformance.

void getRenderObjects (IRenderer *_renderer, GLState &_state, const DrawModes::DrawMode &_drawMode, const ACG::SceneGraph::Material *_mat)
 Add the objects to the given renderer. More...

- Public Member Functions inherited from ACG::SceneGraph::ACG::SceneGraph::MaterialNode
 MaterialNode (BaseNode *_parent=0, const std::string &_name="<MaterialNode>", unsigned int _applyProperties=(All &~BackFaceCulling))
 Default constructor. Applies all properties.

virtual ~MaterialNode ()
 Destructor.

void read (std::istream &_is)
 read MaterialFile

float alpha_value ()
 get current alpha value for alpha_test

bool blending ()

GLenum blending_param1 ()

GLenum blending_param2 ()

void enable_blending (GLenum _p1=GL_SRC_ALPHA, GLenum _p2=GL_ONE_MINUS_SRC_ALPHA)
 enable blending with Parameters (_p1, _p2)

void disable_blending ()
 disable blending

bool backface_culling ()

void enable_backface_culling ()
 enable backface culling (not active by default, see applyProperties)

void disable_backface_culling ()
 disable backface culling (not active by default, see applyProperties)

unsigned int applyProperties () const
 get properties that will be applied (OR'ed ApplyProperties)

void applyProperties (unsigned int _applyProperties)
 set properties that will be applied (OR'ed ApplyProperties)

ACG::SceneGraph::Materialmaterial ()
 Get material object reference.

void set_material (const ACG::SceneGraph::Material &_m)
 Set material object.

 ACG_CLASSNAME (MaterialNode)
 set current GL-color and GL-material

void enter (GLState &_state, const DrawModes::DrawMode &_drawmode)
 set current GL-color and GL-material

void leave (GLState &_state, const DrawModes::DrawMode &_drawmode)
 restores original GL-color and GL-material

void enterPick (GLState &_state, PickTarget _target, const DrawModes::DrawMode &_drawMode)
 Do nothing in picking.

void leavePick (GLState &_state, PickTarget _target, const DrawModes::DrawMode &_drawMode)
 Do nothing in picking.

void set_color (const Vec4f &_c)
 set color (base, ambient, diffuse, specular) based on _c

void set_random_color ()
 Generates a random color and sets it.

void set_base_color (const Vec4f &_c)
 set the base color

const Vec4fbase_color () const
 get the base color

void set_ambient_color (const Vec4f &_a)
 set the ambient color.

const Vec4fambient_color () const
 get the ambient color.

void set_diffuse_color (const Vec4f &_d)
 set the diffuse color.

const Vec4fdiffuse_color () const
 get the diffuse color.

void set_specular_color (const Vec4f &_s)
 set the specular color

const Vec4fspecular_color () const
 get the specular color

void set_overlay_color (const Vec4f &_s)
 set the overlay color

const Vec4foverlay_color () const
 get the overlay color

void colorMaterial (const bool _cm)
 Set colorMaterial.

void enable_color_material ()
 Enable Color Material.

void disable_color_material ()
 Disable Color Material.

bool colorMaterial ()
 get colorMaterial state

void set_shininess (float _s)
 set shininess

float shininess () const
 get shininess

void set_reflectance (double _m)
 set reflectance

double reflectance () const
 get reflectance

void set_point_size (float _sz)
 set point size (default: 1.0)

float point_size () const
 get point size

void set_line_width (float _sz)
 set line width (default: 1.0)

float line_width () const
 get line width

void set_round_points (bool _b)
 set round points enabled

bool round_points () const
 get round points enabled

void set_line_smooth (bool _b)
 set: smooth lines enabled

bool line_smooth () const
 get: rsmooth lines enabled

void enable_alpha_test (float _clip)
 enable alpha test (draw pixels if alpha >= _clip)

void disable_alpha_test ()
 disable alpha test

bool alpha_test ()
 Return state of Alpha test.

void enable_multisampling ()
 Enable Multisampling.

void disable_multisampling ()
 enable alpha test (draw pixels if alpha >= _clip)

bool multiSampling ()
 Get state of multisampling.

void set_multisampling (bool _state)
 Set state of multisampling.

- Public Member Functions inherited from ACG::SceneGraph::ACG::SceneGraph::BaseNode
 BaseNode (BaseNode *_parent=0, std::string _name="<unknown>")
 Default constructor.

 BaseNode (BaseNode *_parent, BaseNode *_child, std::string _name="<unknown>")
 Put this node between _parent and _child.

virtual ~BaseNode ()
 Destructor.

void delete_subtree ()
 Delete the whole subtree of this node. More...

virtual const std::string & className () const =0
 Return class name (implemented by the ACG_CLASSNAME macro)

virtual void draw (GLState &, const DrawModes::DrawMode &)
 Draw this node using the draw modes _drawMode. More...

virtual void getRenderObjects (IRenderer *_renderer, GLState &_state, const DrawModes::DrawMode &_drawMode, const Material *_mat)
 Deferred draw call with shader based renderer. More...

virtual void pick (GLState &, PickTarget)

void enablePicking (bool _enable)

bool pickingEnabled ()

virtual void mouseEvent (GLState &, QMouseEvent *)
 Handle mouse event (some interaction, e.g. modeling)

void setDirty (bool _dirty=true)
 mark node for redrawn

bool isDirty () const
 Check if node should be redrawn.

ChildIter childrenBegin ()
 Returns: begin-iterator of children.

ConstChildIter childrenBegin () const
 Same but cont.

ChildIter childrenEnd ()
 Returns: end-iterator of children.

ConstChildIter childrenEnd () const
 Same but const.

ChildRIter childrenRBegin ()
 Returns: reverse begin-iterator of children.

ConstChildRIter childrenRBegin () const
 Same but const.

ChildRIter childrenREnd ()
 Returns: reverse end-iterator of children.

ConstChildRIter childrenREnd () const
 Same but const.

void push_back (BaseNode *_node)
 Insert _node at the end of the list of children.

void remove (ChildIter _pos)

size_t nChildren () const
 number of children

ChildIter find (BaseNode *_node)

BaseNodefind (const std::string &_name)

BaseNodeparent ()
 Get the nodes parent node.

const BaseNodeparent () const
 Get the nodes parent node.

void set_parent (BaseNode *_parent)
 Set the parent of this node. More...

StatusMode status () const
 Get node's status.

void set_status (StatusMode _s)
 Set the status of this node.

void hide ()
 Hide Node: set status to HideNode.

void show ()
 Show node: set status to Active.

bool visible ()
 Is node visible (status == Active)?

bool hidden ()
 Is node not visible (status != Active)?

std::string name () const
 Returns: name of node (needs not be unique)

void name (const std::string &_name)
 rename a node

unsigned int id () const

DrawModes::DrawMode drawMode () const
 Return the own draw modes of this node.

void drawMode (DrawModes::DrawMode _drawMode)

unsigned int traverseMode () const
 Return how the node should be traversed.

void setTraverseMode (unsigned int _mode)
 Set traverse mode for node.

MultipassBitMask multipassStatus () const
 Get the current multipass settings for the nodes status functions. More...

void setMultipassStatus (const MultipassBitMask _passStatus)
 Set multipass settings for the nodes status functions. More...

void multipassStatusSetActive (const unsigned int _i, bool _active)
 Set multipass status to traverse in a specific pass. More...

bool multipassStatusActive (const unsigned int _i) const
 Get multipass status to traverse in a specific pass. More...

MultipassBitMask multipassNode () const
 Get the current multipass settings for the node. More...

void setMultipassNode (const MultipassBitMask _passNode)
 Set multipass settings for the node. More...

void multipassNodeSetActive (const unsigned int _i, bool _active)
 Set Node status to traverse in a specific pass. More...

bool multipassNodeActive (const unsigned int _i) const
 Get Node status to traverse in a specific pass. More...

void setRenderObjectShaders (const std::string &_vertexShaderFile, const std::string &_geometryShaderFile, const std::string &_fragmentShaderFile, bool _relativePaths=true, DrawModes::DrawModePrimitive _primitiveType=DrawModes::PRIMITIVE_POLYGON)
 Set custom shaders. More...

void setRenderObjectShaders (const std::string &_vertexShaderFile, const std::string &_tessControlShaderFile, const std::string &_tessEvalShaderFile, const std::string &_geometryShaderFile, const std::string &_fragmentShaderFile, bool _relativePaths=true, DrawModes::DrawModePrimitive _primitiveType=DrawModes::PRIMITIVE_POLYGON)
 Set custom shaders. More...

void setRenderObjectUniformPool (const GLSL::UniformPool *_pool)
 Set uniforms for shader based rendering. More...

const GLSL::UniformPoolgetRenderObjectUniformPool ()
 Get uniforms for shader based rendering. More...

void setRenderObjectTexture (int _samplerSlot, GLuint _texId, GLenum _texType=GL_TEXTURE_2D)
 Set textures for shader based rendering. More...

void setRenderObjectModifier (RenderObjectModifier *_modifier)
 Set modifier for render objects. More...

RenderObjectModifiergetRenderObjectModifier ()
 Get render-object modifier. More...

void applyRenderObjectSettings (DrawModes::DrawModePrimitive _primitive, RenderObject *_obj) const
 Set shaders, textures and uniforms as provided by user to a render-object. More...


Protected Member Functions

void pick_vertices (GLState &_state)

void pick_edges (GLState &_state, unsigned int _offset)

void createVBO ()
 creates the vbo only if update was requested


Protected Attributes

float picking_line_width_

PointVector points_

ColorVector colors_

Color4fVector colors4f_

LineMode line_mode_

bool draw_always_on_top

GLint prev_depth_

unsigned int vbo_

bool updateVBO_

ACG::VertexDeclaration vertexDecl_

std::string lineNodeName_


Detailed Description

LineNode renders a set of line segments or polylines.

LineNode renders a set of line segments or one connected polyline, depending on the LineMode, that can be set using the set_line_mode(LineMode) method.

Definition at line 90 of file LineNode.hh.

Member Function Documentation

ColorVector& ACG::SceneGraph::LineNode::colors ( )
inline

get and set color container

If you change something here, you need to call updateVBO() in order to tell the system, that your data arrays changed

Definition at line 199 of file LineNode.hh.

void ACG::SceneGraph::LineNode::getRenderObjects ( IRenderer _renderer,
GLState _state,
const DrawModes::DrawMode _drawMode,
const ACG::SceneGraph::Material _mat
)

Add the objects to the given renderer.

Parameters
_rendererThe renderer which will be used. Add your geometry into this class
_stateThe current GL State when this object is called
_drawModeThe active draw mode
_matCurrent material

Definition at line 581 of file LineNode.cc.

const PointVector& ACG::SceneGraph::LineNode::points ( ) const
inline

return reference to point vector

If you change something here, you need to call updateVBO() in order to tell the system, that your data arrays changed

Definition at line 192 of file LineNode.hh.

Member Data Documentation

float ACG::SceneGraph::LineNode::picking_line_width_
protected

Line width used by the picking renderer. If this is not set (i.e. NAN), line_width() is used instead.

Definition at line 231 of file LineNode.hh.


The documentation for this class was generated from the following files:
