OpenVolumeMesh::TetVertexIter Class Reference

Iterate over all vertices of a hexahedron in a specific order. More...

#include <libs_required/OpenVolumeMesh/src/OpenVolumeMesh/Mesh/TetrahedralMeshIterators.hh>

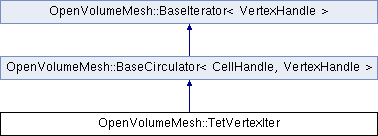

Inheritance diagram for OpenVolumeMesh::TetVertexIter:
OpenVolumeMesh::BaseCirculator< CellHandle, VertexHandle > OpenVolumeMesh::BaseIterator< VertexHandle >

Public Member Functions

 TetVertexIter (const CellHandle &_ref_h, const TetrahedralMeshTopologyKernel *_mesh, int _max_laps=1)
TetVertexIter operator++ (int)
TetVertexIter operator-- (int)
TetVertexIter operator+ (int _n)
TetVertexIter operator- (int _n)
TetVertexIteroperator+= (int _n)
TetVertexIteroperator-= (int _n)
TetVertexIteroperator++ ()
TetVertexIteroperator-- ()
- Public Member Functions inherited from OpenVolumeMesh::BaseCirculator< CellHandle, VertexHandle >
 BaseCirculator (const TopologyKernel *_mesh, const CellHandle &_ih, const VertexHandle &_oh, int _max_laps=1)
 BaseCirculator (const TopologyKernel *_mesh, const CellHandle &_ih, int _max_laps=1)
bool operator== (const BaseCirculator &_c) const
bool operator!= (const BaseCirculator &_c) const
bool operator< (const BaseCirculator &_c) const
BaseCirculatoroperator= (const BaseCirculator &_c)
const CellHandleref_handle () const
void lap (int _lap)
int lap () const
void max_laps (int _max_laps)
int max_laps () const
- Public Member Functions inherited from OpenVolumeMesh::BaseIterator< VertexHandle >
 BaseIterator (const TopologyKernel *_mesh, const VertexHandle &_ch)
 BaseIterator (const TopologyKernel *_mesh)
bool operator== (const BaseIterator &_c) const
bool operator!= (const BaseIterator &_c) const
pointer operator-> () const
reference operator* () const
bool operator< (const BaseIterator &_c) const
BaseIteratoroperator= (const BaseIterator &_c)
 operator bool () const
void valid (bool _valid)
bool valid () const
void cur_handle (const VertexHandle &_h)
reference cur_handle () const
const TopologyKernelmesh () const

Private Types

typedef BaseCirculator
< CellHandle, VertexHandle

Private Attributes

std::vector< VertexHandlevertices_
size_t cur_index_

Additional Inherited Members

- Public Types inherited from OpenVolumeMesh::BaseCirculator< CellHandle, VertexHandle >
typedef BaseIterator
< VertexHandle
- Public Types inherited from OpenVolumeMesh::BaseIterator< VertexHandle >
typedef int difference_type
typedef const VertexHandle value_type
typedef const VertexHandlepointer
typedef const VertexHandlereference
- Protected Attributes inherited from OpenVolumeMesh::BaseCirculator< CellHandle, VertexHandle >
int lap_
int max_laps_
CellHandle ref_handle_

Detailed Description

Iterate over all vertices of a hexahedron in a specific order.

Vertices are addressed in the following order: vertices of one halfface in ccw order, then the remaining vertex

Definition at line 59 of file TetrahedralMeshIterators.hh.

The documentation for this class was generated from the following files:
