AnimationT< PointT > Class Template Reference

Stores a single animation. More...

#include <Type-Skeleton/ObjectTypes/Skeleton/Animation/AnimationT.hh>

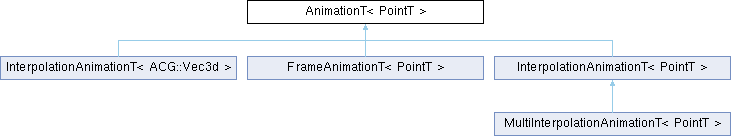

Inheritance diagram for AnimationT< PointT >:

Public Types
typedef PointT	Point
typedef Point::value_type	Scalar
typedef PoseT< PointT >	Pose

Public Member Functions
	AnimationT (std::string _name="")
virtual AnimationT *	copy ()=0
Frame access
There is one pose per frame.
virtual Pose *	pose (unsigned int _iFrame)=0
virtual unsigned int	frameCount ()=0

Friends
template<typename >
class	SkeletonT

Synchronization
Use these methods to keep the poses in sync with the number (and indices) of the joints.
std::string	name_
int	fps_
virtual void	insertJointAt (unsigned int _index)=0
virtual void	removeJointAt (unsigned int _index)=0
virtual void	updateFromGlobal (unsigned int _index)=0
virtual void	clearPoseCache ()
std::string	name ()
void	setName (std::string _name)
int	fps ()
void	setFps (int _fps)

Detailed Description

template<class PointT>
class AnimationT< PointT >

Stores a single animation.

This class is used by a skeleton to store a single animation. An animation is an array of different Poses. Both the reference pose and the skeleton hierarchy are not used by the animation class itself, but are passed to the poses.

Definition at line 58 of file AnimationT.hh.

Member Typedef Documentation

Point

template<class PointT >

typedef PointT AnimationT< PointT >::Point

Definition at line 64 of file AnimationT.hh.

Pose

template<class PointT >

typedef PoseT<PointT> AnimationT< PointT >::Pose

Definition at line 66 of file AnimationT.hh.

Scalar

template<class PointT >

typedef Point::value_type AnimationT< PointT >::Scalar

Definition at line 65 of file AnimationT.hh.

Constructor & Destructor Documentation

AnimationT()

template<class PointT >

AnimationT< PointT >::AnimationT ( std::string  _name = "" )

inlineexplicit

Definition at line 69 of file AnimationT.hh.

~AnimationT()

template<class PointT >

virtual AnimationT< PointT >::~AnimationT ( )

inlinevirtual

Definition at line 71 of file AnimationT.hh.

Member Function Documentation

clearPoseCache()

template<class PointT >

virtual void AnimationT< PointT >::clearPoseCache ( )

inlinevirtual

Definition at line 93 of file AnimationT.hh.

copy()

template<class PointT >

virtual AnimationT * AnimationT< PointT >::copy ( )

pure virtual

Implemented in FrameAnimationT< PointT >.

fps()

template<class PointT >

int AnimationT< PointT >::fps ( )

inline

Definition at line 103 of file AnimationT.hh.

frameCount()

template<class PointT >

virtual unsigned int AnimationT< PointT >::frameCount ( )

pure virtual

Implemented in FrameAnimationT< PointT >, InterpolationAnimationT< PointT >, InterpolationAnimationT< ACG::Vec3d >, and MultiInterpolationAnimationT< PointT >.

insertJointAt()

template<class PointT >

virtual void AnimationT< PointT >::insertJointAt ( unsigned int  _index )

pure virtual

Implemented in FrameAnimationT< PointT >, InterpolationAnimationT< PointT >, InterpolationAnimationT< ACG::Vec3d >, and MultiInterpolationAnimationT< PointT >.

name()

template<class PointT >

std::string AnimationT< PointT >::name ( )

inline

Definition at line 95 of file AnimationT.hh.

pose()

template<class PointT >

virtual Pose * AnimationT< PointT >::pose ( unsigned int  _iFrame )

pure virtual

Implemented in FrameAnimationT< PointT >, InterpolationAnimationT< PointT >, InterpolationAnimationT< ACG::Vec3d >, and MultiInterpolationAnimationT< PointT >.

removeJointAt()

template<class PointT >

virtual void AnimationT< PointT >::removeJointAt ( unsigned int  _index )

pure virtual

Implemented in FrameAnimationT< PointT >, InterpolationAnimationT< PointT >, InterpolationAnimationT< ACG::Vec3d >, and MultiInterpolationAnimationT< PointT >.

setFps()

template<class PointT >

void AnimationT< PointT >::setFps ( int  _fps )

inline

Definition at line 107 of file AnimationT.hh.

setName()

template<class PointT >

void AnimationT< PointT >::setName ( std::string  _name )

inline

Definition at line 99 of file AnimationT.hh.

updateFromGlobal()

template<class PointT >

virtual void AnimationT< PointT >::updateFromGlobal ( unsigned int  _index )

pure virtual

Implemented in FrameAnimationT< PointT >, InterpolationAnimationT< PointT >, InterpolationAnimationT< ACG::Vec3d >, and MultiInterpolationAnimationT< PointT >.

Friends And Related Symbol Documentation

SkeletonT

template<class PointT >

template<typename >

friend class SkeletonT

friend

Definition at line 61 of file AnimationT.hh.

Member Data Documentation

fps_

template<class PointT >

int AnimationT< PointT >::fps_

protected

Definition at line 113 of file AnimationT.hh.

name_

template<class PointT >

std::string AnimationT< PointT >::name_

protected

Definition at line 112 of file AnimationT.hh.

---

The documentation for this class was generated from the following file:

• Type-Skeleton/ObjectTypes/Skeleton/Animation/AnimationT.hh
