OpenMesh::Decimater::McDecimaterT< MeshT > Class Template Reference

#include <libs_required/OpenMesh/src/OpenMesh/Tools/Decimater/McDecimaterT.hh>

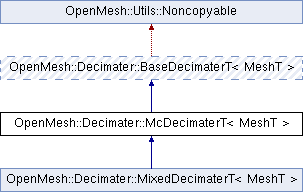

Inheritance diagram for OpenMesh::Decimater::McDecimaterT< MeshT >:
OpenMesh::Decimater::BaseDecimaterT< MeshT > OpenMesh::Utils::Noncopyable OpenMesh::Decimater::MixedDecimaterT< MeshT >

Public Types

typedef McDecimaterT< MeshT > Self

typedef MeshT Mesh

typedef CollapseInfoT< MeshT > CollapseInfo

typedef ModBaseT< MeshT > Module

typedef std::vector< Module * > ModuleList

typedef ModuleList::iterator ModuleListIterator

- Public Types inherited from OpenMesh::Decimater::BaseDecimaterT< MeshT >
typedef BaseDecimaterT< MeshT > Self

typedef MeshT Mesh

typedef CollapseInfoT< MeshT > CollapseInfo

typedef ModBaseT< MeshT > Module

typedef std::vector< Module * > ModuleList

typedef ModuleList::iterator ModuleListIterator


Public Member Functions

 McDecimaterT (Mesh &_mesh)
 Constructor.

 ~McDecimaterT ()
 Destructor.

size_t decimate (size_t _n_collapses)

size_t decimate_to (size_t _n_vertices)
 Decimate to target complexity, returns number of collapses.

size_t decimate_to_faces (size_t _n_vertices=0, size_t _n_faces=0)

size_t decimate_constraints_only (float _factor)

size_t samples ()

void set_samples (const size_t _value)

- Public Member Functions inherited from OpenMesh::Decimater::BaseDecimaterT< MeshT >
 BaseDecimaterT (Mesh &_mesh)

bool initialize ()

bool is_initialized () const
 Returns whether decimater has been successfully initialized.

void info (std::ostream &_os)
 Print information about modules to _os.

void set_observer (Observer *_o)
 Add observer. More...

Observerobserver ()
 Get current observer of a decimater.

Mesh & mesh ()
 access mesh. used in modules.

template<typename _Module >
bool add (ModHandleT< _Module > &_mh)
 add module to decimater

template<typename _Module >
bool remove (ModHandleT< _Module > &_mh)
 remove module

template<typename Module >
Modulemodule (ModHandleT< Module > &_mh)
 get module referenced by handle _mh


Private Attributes

Mesh & mesh_

size_t randomSamples_


Additional Inherited Members

- Protected Member Functions inherited from OpenMesh::Decimater::BaseDecimaterT< MeshT >
bool notify_observer (size_t _n_collapses)
 returns false, if abort requested by observer

void set_uninitialized ()
 Reset the initialized flag, and clear the bmodules_ and cmodule_.

void update_modules (CollapseInfo &_ci)

bool is_collapse_legal (const CollapseInfo &_ci)

float collapse_priority (const CollapseInfo &_ci)
 Calculate priority of an halfedge collapse (using the modules)

void preprocess_collapse (CollapseInfo &_ci)
 Pre-process a collapse.

void postprocess_collapse (CollapseInfo &_ci)
 Post-process a collapse.

void set_error_tolerance_factor (double _factor)

void reset ()


Detailed Description

template<typename MeshT>
class OpenMesh::Decimater::McDecimaterT< MeshT >

Multiple choice decimater framework

See also
BaseModT, Mesh Decimation Framework

Definition at line 82 of file McDecimaterT.hh.

Member Function Documentation

template<class Mesh >
size_t OpenMesh::Decimater::McDecimaterT< Mesh >::decimate ( size_t  _n_collapses)

Decimate (perform _n_collapses collapses). Return number of performed collapses. If _n_collapses is not given reduce as much as possible

Definition at line 108 of file McDecimaterT.cc.

template<class Mesh >
size_t OpenMesh::Decimater::McDecimaterT< Mesh >::decimate_constraints_only ( float  _factor)

Decimate only with constraints, while _factor gives the percentage of the constraints that should be used

Definition at line 375 of file McDecimaterT.cc.

template<class Mesh >
size_t OpenMesh::Decimater::McDecimaterT< Mesh >::decimate_to_faces ( size_t  _n_vertices = 0,
size_t  _n_faces = 0
)

Decimate to target complexity (vertices and faces). Stops when the number of vertices or the number of faces is reached. Returns number of performed collapses.

Definition at line 232 of file McDecimaterT.cc.


The documentation for this class was generated from the following files:
