ACG::SceneGraph::ArrowNode Class Reference

#include <ACG/Scenegraph/ArrowNode.hh>

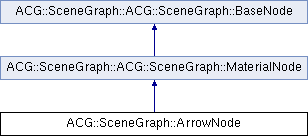

Inheritance diagram for ACG::SceneGraph::ArrowNode:
ACG::SceneGraph::ACG::SceneGraph::MaterialNode ACG::SceneGraph::ACG::SceneGraph::BaseNode

Classes

struct  Arrow


Public Member Functions

 ArrowNode (BaseNode *_parent=0, std::string _name="<ArrowNode>")
 default constructor

 ~ArrowNode ()
 destructor

 ACG_CLASSNAME (ArrowNode)
 static name of this class

DrawModes::DrawMode availableDrawModes () const
 return available draw modes

void boundingBox (Vec3d &_bbMin, Vec3d &_bbMax)
 update bounding box

void reserve (int _n)
 reserve mem for _n arrows

int addArrow (const Vec3f &_start, const Vec3f &_dir, const Vec3f &_normal=Vec3f(0.0f, 1.0f, 0.0f), const Vec3f &_scale=Vec3f(1.0f, 1.0f, 1.0f), const Vec4uc &_color=Vec4uc(82, 82, 82, 255))
 Add an arrow to the node. More...

int addArrow (const Vec3f &_start, const Vec3f &_dir, const Vec3f &_normal, const Vec3f &_scale, const Vec4f &_color)
 Add an arrow to the node. More...

int addArrow (const Vec3d &_start, const Vec3d &_dir, const Vec3d &_normal=Vec3d(0.0, 1.0, 0.0), const Vec3d &_scale=Vec3d(1.0, 1.0, 1.0), const Vec4uc &_color=Vec4uc(82, 82, 82, 255))
 Add an arrow to the node. More...

int addArrow (const Vec3d &_start, const Vec3d &_dir, const Vec3d &_normal, const Vec3d &_scale, const Vec4f &_color)
 Add an arrow to the node. More...

Vec3f arrowStart (int _arrowID) const
 Return the start position of an arrow. More...

void arrowStart (int _arrowID, const Vec3f &_start)
 Set start point of an already added arrow. More...

Vec3f arrowDir (int _arrowID) const
 Return the direction of an arrow. More...

void arrowDir (int _arrowID, const Vec3f &_dir)
 Set direction of an already added arrow. More...

Vec3f arrowNormal (int _arrowID) const
 Return the normal of an arrow. More...

void arrowNormal (int _arrowID, const Vec3f &_normal)
 Set normal of an already added arrow. More...

Vec3f arrowScale (int _arrowID) const
 Return the scale of an arrow. More...

void arrowScale (int _arrowID, const Vec3f &_scale)
 Set the scale of an already added arrow. More...

Vec4uc arrowColor (int _arrowID) const
 Return the color of an arrow. More...

void arrowColor (int _arrowID, const Vec4uc &_color)
 Set the color of an already added arrow. More...

void clear ()
 clear arrows

int n_arrows () const
 number of arrows

void draw (GLState &_state, const DrawModes::DrawMode &_drawMode)
 draw arrows

void getRenderObjects (IRenderer *_renderer, GLState &_state, const DrawModes::DrawMode &_drawMode, const ACG::SceneGraph::Material *_mat)
 Add the objects to the given renderer. More...

- Public Member Functions inherited from ACG::SceneGraph::ACG::SceneGraph::MaterialNode
 MaterialNode (BaseNode *_parent=0, const std::string &_name="<MaterialNode>", unsigned int _applyProperties=(All &~BackFaceCulling))
 Default constructor. Applies all properties.

virtual ~MaterialNode ()
 Destructor.

void read (std::istream &_is)
 read MaterialFile

float alpha_value ()
 get current alpha value for alpha_test

bool blending ()

GLenum blending_param1 ()

GLenum blending_param2 ()

void enable_blending (GLenum _p1=GL_SRC_ALPHA, GLenum _p2=GL_ONE_MINUS_SRC_ALPHA)
 enable blending with Parameters (_p1, _p2)

void disable_blending ()
 disable blending

bool backface_culling ()

void enable_backface_culling ()
 enable backface culling (not active by default, see applyProperties)

void disable_backface_culling ()
 disable backface culling (not active by default, see applyProperties)

unsigned int applyProperties () const
 get properties that will be applied (OR'ed ApplyProperties)

void applyProperties (unsigned int _applyProperties)
 set properties that will be applied (OR'ed ApplyProperties)

ACG::SceneGraph::Materialmaterial ()
 Get material object reference.

void set_material (const ACG::SceneGraph::Material &_m)
 Set material object.

 ACG_CLASSNAME (MaterialNode)
 set current GL-color and GL-material

void enter (GLState &_state, const DrawModes::DrawMode &_drawmode)
 set current GL-color and GL-material

void leave (GLState &_state, const DrawModes::DrawMode &_drawmode)
 restores original GL-color and GL-material

void enterPick (GLState &_state, PickTarget _target, const DrawModes::DrawMode &_drawMode)
 Do nothing in picking.

void leavePick (GLState &_state, PickTarget _target, const DrawModes::DrawMode &_drawMode)
 Do nothing in picking.

void set_color (const Vec4f &_c)
 set color (base, ambient, diffuse, specular) based on _c

void set_random_color ()
 Generates a random color and sets it.

void set_base_color (const Vec4f &_c)
 set the base color

const Vec4fbase_color () const
 get the base color

void set_ambient_color (const Vec4f &_a)
 set the ambient color.

const Vec4fambient_color () const
 get the ambient color.

void set_diffuse_color (const Vec4f &_d)
 set the diffuse color.

const Vec4fdiffuse_color () const
 get the diffuse color.

void set_specular_color (const Vec4f &_s)
 set the specular color

const Vec4fspecular_color () const
 get the specular color

void set_overlay_color (const Vec4f &_s)
 set the overlay color

const Vec4foverlay_color () const
 get the overlay color

void colorMaterial (const bool _cm)
 Set colorMaterial.

void enable_color_material ()
 Enable Color Material.

void disable_color_material ()
 Disable Color Material.

bool colorMaterial ()
 get colorMaterial state

void set_shininess (float _s)
 set shininess

float shininess () const
 get shininess

void set_reflectance (double _m)
 set reflectance

double reflectance () const
 get reflectance

void set_point_size (float _sz)
 set point size (default: 1.0)

float point_size () const
 get point size

void set_line_width (float _sz)
 set line width (default: 1.0)

float line_width () const
 get line width

void set_round_points (bool _b)
 set round points enabled

bool round_points () const
 get round points enabled

void set_line_smooth (bool _b)
 set: smooth lines enabled

bool line_smooth () const
 get: rsmooth lines enabled

void enable_alpha_test (float _clip)
 enable alpha test (draw pixels if alpha >= _clip)

void disable_alpha_test ()
 disable alpha test

bool alpha_test ()
 Return state of Alpha test.

void enable_multisampling ()
 Enable Multisampling.

void disable_multisampling ()
 enable alpha test (draw pixels if alpha >= _clip)

bool multiSampling ()
 Get state of multisampling.

void set_multisampling (bool _state)
 Set state of multisampling.

- Public Member Functions inherited from ACG::SceneGraph::ACG::SceneGraph::BaseNode
 BaseNode (BaseNode *_parent=0, std::string _name="<unknown>")
 Default constructor.

 BaseNode (BaseNode *_parent, BaseNode *_child, std::string _name="<unknown>")
 Put this node between _parent and _child.

virtual ~BaseNode ()
 Destructor.

void delete_subtree ()
 Delete the whole subtree of this node. More...

virtual const std::string & className () const =0
 Return class name (implemented by the ACG_CLASSNAME macro)

virtual void enter (IRenderer *, GLState &_state, const DrawModes::DrawMode &_drawMode)

virtual void draw (GLState &, const DrawModes::DrawMode &)
 Draw this node using the draw modes _drawMode. More...

virtual void getRenderObjects (IRenderer *_renderer, GLState &_state, const DrawModes::DrawMode &_drawMode, const Material *_mat)
 Deferred draw call with shader based renderer. More...

virtual void leave (IRenderer *, GLState &_state, const DrawModes::DrawMode &_drawMode)

virtual void pick (GLState &, PickTarget)

void enablePicking (bool _enable)

bool pickingEnabled ()

virtual void mouseEvent (GLState &, QMouseEvent *)
 Handle mouse event (some interaction, e.g. modeling)

void setDirty (bool _dirty=true)
 mark node for redrawn

bool isDirty () const
 Check if node should be redrawn.

ChildIter childrenBegin ()
 Returns: begin-iterator of children.

ConstChildIter childrenBegin () const
 Same but cont.

ChildIter childrenEnd ()
 Returns: end-iterator of children.

ConstChildIter childrenEnd () const
 Same but const.

ChildRIter childrenRBegin ()
 Returns: reverse begin-iterator of children.

ConstChildRIter childrenRBegin () const
 Same but const.

ChildRIter childrenREnd ()
 Returns: reverse end-iterator of children.

ConstChildRIter childrenREnd () const
 Same but const.

void push_back (BaseNode *_node)
 Insert _node at the end of the list of children.

void remove (ChildIter _pos)

size_t nChildren () const
 number of children

ChildIter find (BaseNode *_node)

BaseNodefind (const std::string &_name)

BaseNodeparent ()
 Get the nodes parent node.

const BaseNodeparent () const
 Get the nodes parent node.

void set_parent (BaseNode *_parent)
 Set the parent of this node. More...

StatusMode status () const
 Get node's status.

void set_status (StatusMode _s)
 Set the status of this node.

void hide ()
 Hide Node: set status to HideNode.

void show ()
 Show node: set status to Active.

bool visible ()
 Is node visible (status == Active)?

bool hidden ()
 Is node not visible (status != Active)?

std::string name () const
 Returns: name of node (needs not be unique)

void name (const std::string &_name)
 rename a node

unsigned int id () const

DrawModes::DrawMode drawMode () const
 Return the own draw modes of this node.

void drawMode (DrawModes::DrawMode _drawMode)

unsigned int traverseMode () const
 Return how the node should be traversed.

void setTraverseMode (unsigned int _mode)
 Set traverse mode for node.

MultipassBitMask multipassStatus () const
 Get the current multipass settings for the nodes status functions. More...

void setMultipassStatus (const MultipassBitMask _passStatus)
 Set multipass settings for the nodes status functions. More...

void multipassStatusSetActive (const unsigned int _i, bool _active)
 Set multipass status to traverse in a specific pass. More...

bool multipassStatusActive (const unsigned int _i) const
 Get multipass status to traverse in a specific pass. More...

MultipassBitMask multipassNode () const
 Get the current multipass settings for the node. More...

void setMultipassNode (const MultipassBitMask _passNode)
 Set multipass settings for the node. More...

void multipassNodeSetActive (const unsigned int _i, bool _active)
 Set Node status to traverse in a specific pass. More...

bool multipassNodeActive (const unsigned int _i) const
 Get Node status to traverse in a specific pass. More...

void setRenderObjectShaders (const std::string &_vertexShaderFile, const std::string &_geometryShaderFile, const std::string &_fragmentShaderFile, bool _relativePaths=true, DrawModes::DrawModePrimitive _primitiveType=DrawModes::PRIMITIVE_POLYGON)
 Set custom shaders. More...

void setRenderObjectShaders (const std::string &_vertexShaderFile, const std::string &_tessControlShaderFile, const std::string &_tessEvalShaderFile, const std::string &_geometryShaderFile, const std::string &_fragmentShaderFile, bool _relativePaths=true, DrawModes::DrawModePrimitive _primitiveType=DrawModes::PRIMITIVE_POLYGON)
 Set custom shaders. More...

void setRenderObjectUniformPool (const GLSL::UniformPool *_pool)
 Set uniforms for shader based rendering. More...

const GLSL::UniformPoolgetRenderObjectUniformPool ()
 Get uniforms for shader based rendering. More...

void setRenderObjectTexture (int _samplerSlot, GLuint _texId, GLenum _texType=GL_TEXTURE_2D)
 Set textures for shader based rendering. More...

void setRenderObjectModifier (RenderObjectModifier *_modifier)
 Set modifier for render objects. More...

RenderObjectModifiergetRenderObjectModifier ()
 Get render-object modifier. More...

void applyRenderObjectSettings (DrawModes::DrawModePrimitive _primitive, RenderObject *_obj) const
 Set shaders, textures and uniforms as provided by user to a render-object. More...


Private Member Functions

void createArrowMesh ()

GLMatrixf computeWorldMatrix (int _arrow) const

GLMatrixf readWorldMatrix (int _arrow) const

void updateInstanceData ()

void updateInstanceBuffer ()

int instanceDataOffset (int _arrow) const

int instanceDataSize () const


Private Attributes

std::vector< Arrowarrows_

int numVertices_

int numIndices_

GeometryBuffer vertexBuffer_

IndexBuffer indexBuffer_

VertexDeclaration vertexDecl_

Vec3f localArrowMin_

Vec3f localArrowMax_

std::vector< float > instanceData_

GeometryBuffer instanceBuffer_

VertexDeclaration vertexDeclInstanced_

bool invalidateInstanceData_

bool invalidateInstanceBuffer_

int supportsInstancing_


Additional Inherited Members

- Public Types inherited from ACG::SceneGraph::ACG::SceneGraph::MaterialNode
enum  ApplyProperties {
  None =0, All =0xffff, BaseColor =1, Material =2,
  PointSize =4, LineWidth =8, RoundPoints =16, LineSmooth =32,
  AlphaTest =64, Blending =128, BackFaceCulling =256, ColorMaterial =512,
  MultiSampling =1024
}
 Apply which properties? Others will be ignored. Values may be OR'ed. More...

- Public Types inherited from ACG::SceneGraph::ACG::SceneGraph::BaseNode
enum  StatusMode { Active = 0x1, HideNode = 0x2, HideChildren = 0x4, HideSubtree = 0x8 }
 Status modi. More...

enum  TraverseMode { NodeFirst = 0x1, ChildrenFirst = 0x2, SecondPass = 0x4 }
 Node traverse types. More...

typedef std::vector< BaseNode * >::const_iterator ConstChildIter
 allows to iterate over children

typedef std::vector< BaseNode * >::iterator ChildIter
 allows to iterate over children

typedef std::vector< BaseNode * >::const_reverse_iterator ConstChildRIter
 allows to reverse iterate over children

typedef std::vector< BaseNode * >::reverse_iterator ChildRIter
 allows to reverse iterate over children

enum  PASSES {
  NOPASS = 0, ALLPASSES = 1 << 0, PASS_1 = 1 << 1, PASS_2 = 1 << 2,
  PASS_3 = 1 << 3, PASS_4 = 1 << 4, PASS_5 = 1 << 5, PASS_6 = 1 << 6,
  PASS_7 = 1 << 7, PASS_8 = 1 << 8
}
 This enum should be used to enable rendering of a node in different.

typedef unsigned int MultipassBitMask
 Multipass pass bit mask type.


Detailed Description

ArrowNode renders a set of arrows.

Definition at line 84 of file ArrowNode.hh.

Member Function Documentation

int ACG::SceneGraph::ArrowNode::addArrow ( const Vec3f _start,
const Vec3f _dir,
const Vec3f _normal = Vec3f(0.0f, 1.0f, 0.0f),
const Vec3f _scale = Vec3f(1.0f, 1.0f, 1.0f),
const Vec4uc _color = Vec4uc(82, 82, 82, 255)
)

Add an arrow to the node.

Parameters
_startStart position of the arrow
_dirDirection of the arrow
_normalNormal vector on the top surface of the arrow. Gets orthonormalized to _dir internally. If 0 or collinear to _dir, a random normal is chosen.
_scaleUniform scaling factor of the arrow. This is also the length of the arrow.
_colorArrow color
Returns
ID of the arrow

Definition at line 380 of file ArrowNode.cc.

int ACG::SceneGraph::ArrowNode::addArrow ( const Vec3f _start,
const Vec3f _dir,
const Vec3f _normal,
const Vec3f _scale,
const Vec4f _color
)

Add an arrow to the node.

Parameters
_startStart position of the arrow
_dirDirection of the arrow
_normalNormal vector on the top surface of the arrow. Gets orthonormalized to _dir internally. If 0 or collinear to _dir, a random normal is chosen.
_scaleUniform scaling factor of the arrow. This is also the length of the arrow.
_colorArrow color
Returns
id of the arrow

Definition at line 401 of file ArrowNode.cc.

int ACG::SceneGraph::ArrowNode::addArrow ( const Vec3d _start,
const Vec3d _dir,
const Vec3d _normal = Vec3d(0.0, 1.0, 0.0),
const Vec3d _scale = Vec3d(1.0, 1.0, 1.0),
const Vec4uc _color = Vec4uc(82, 82, 82, 255)
)

Add an arrow to the node.

Parameters
_startStart position of the arrow
_dirDirection of the arrow
_normalNormal vector on the top surface of the arrow. Gets orthonormalized to _dir internally. If 0 or collinear to _dir, a random normal is chosen.
_scaleUniform scaling factor of the arrow. This is also the length of the arrow.
_colorArrow color
Returns
id of the arrow

Definition at line 434 of file ArrowNode.cc.

int ACG::SceneGraph::ArrowNode::addArrow ( const Vec3d _start,
const Vec3d _dir,
const Vec3d _normal,
const Vec3d _scale,
const Vec4f _color
)

Add an arrow to the node.

Parameters
_startStart position of the arrow
_dirDirection of the arrow
_normalNormal vector on the top surface of the arrow. Gets orthonormalized to _dir internally. If 0 or collinear to _dir, a random normal is chosen.
_scaleUniform scaling factor of the arrow. This is also the length of the arrow.
_colorArrow color
Returns
id of the arrow

Definition at line 441 of file ArrowNode.cc.

Vec4uc ACG::SceneGraph::ArrowNode::arrowColor ( int  _arrowID) const

Return the color of an arrow.

Parameters
_arrowIDID of the arrow that was returned by addArrow()
Returns
Arrow color

Definition at line 586 of file ArrowNode.cc.

void ACG::SceneGraph::ArrowNode::arrowColor ( int  _arrowID,
const Vec4uc _color
)

Set the color of an already added arrow.

Parameters
_arrowIDID of the arrow that was returned by addArrow()
_scaleArrow color

Definition at line 591 of file ArrowNode.cc.

Vec3f ACG::SceneGraph::ArrowNode::arrowDir ( int  _arrowID) const

Return the direction of an arrow.

Parameters
_arrowIDID of the arrow that was returned by addArrow()
Returns
Direction of the arrow

Definition at line 551 of file ArrowNode.cc.

void ACG::SceneGraph::ArrowNode::arrowDir ( int  _arrowID,
const Vec3f _dir
)

Set direction of an already added arrow.

Parameters
_arrowIDID of the arrow that was returned by addArrow()
_dirDirection of the arrow

Definition at line 556 of file ArrowNode.cc.

Vec3f ACG::SceneGraph::ArrowNode::arrowNormal ( int  _arrowID) const

Return the normal of an arrow.

Parameters
_arrowIDID of the arrow that was returned by addArrow()
Returns
Normal of the arrow

Definition at line 563 of file ArrowNode.cc.

void ACG::SceneGraph::ArrowNode::arrowNormal ( int  _arrowID,
const Vec3f _normal
)

Set normal of an already added arrow.

Parameters
_arrowIDID of the arrow that was returned by addArrow()
_dirNormal of the arrow

Definition at line 568 of file ArrowNode.cc.

Vec3f ACG::SceneGraph::ArrowNode::arrowScale ( int  _arrowID) const

Return the scale of an arrow.

Scaling vector: width, length, height

Parameters
_arrowIDID of the arrow that was returned by addArrow()
Returns
Arrow scale

Definition at line 575 of file ArrowNode.cc.

void ACG::SceneGraph::ArrowNode::arrowScale ( int  _arrowID,
const Vec3f _scale
)

Set the scale of an already added arrow.

Scaling vector: width, length, height

Parameters
_arrowIDID of the arrow that was returned by addArrow()
_scaleArrow scale

Definition at line 580 of file ArrowNode.cc.

Vec3f ACG::SceneGraph::ArrowNode::arrowStart ( int  _arrowID) const

Return the start position of an arrow.

Parameters
_arrowIDID of the arrow that was returned by addArrow()
Returns
Start position of the arrow

Definition at line 540 of file ArrowNode.cc.

void ACG::SceneGraph::ArrowNode::arrowStart ( int  _arrowID,
const Vec3f _start
)

Set start point of an already added arrow.

Parameters
_arrowIDID of the arrow that was returned by addArrow()
_startStart position of the arrow

Definition at line 545 of file ArrowNode.cc.

void ACG::SceneGraph::ArrowNode::getRenderObjects ( IRenderer _renderer,
GLState _state,
const DrawModes::DrawMode _drawMode,
const ACG::SceneGraph::Material _mat
)

Add the objects to the given renderer.

Parameters
_rendererThe renderer which will be used. Add your geometry into this class
_stateThe current GL State when this object is called
_drawModeThe active draw mode
_matCurrent material

Definition at line 272 of file ArrowNode.cc.


The documentation for this class was generated from the following files:
