DecimateThread Class Reference

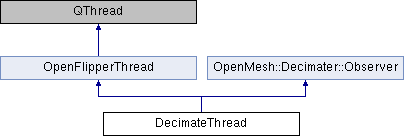

Inheritance diagram for DecimateThread:
OpenFlipperThread OpenMesh::Decimater::Observer


struct  Params

Public Types

typedef OpenMesh::Decimater::BaseDecimaterT< TriMeshBaseDecimaterType
typedef OpenMesh::Decimater::DecimaterT< TriMeshDecimaterType
typedef OpenMesh::Decimater::McDecimaterT< TriMeshMcDecimaterType
typedef OpenMesh::Decimater::MixedDecimaterT< TriMeshMixedDecimaterType

Public Slots

void decimate ()
- Public Slots inherited from OpenFlipperThread
void slotCancel (QString _jobId)
 Cancel this job. More...
void startProcessing ()
 start processing More...

Public Member Functions

virtual void notify (size_t _step)
 callback More...
virtual bool abort () const
 Abort callback. More...
void cancel ()
 Cancel the job. More...
 DecimateThread (Params _param, QString _jobId, int _objId)
BaseDecimaterType * baseDecimater ()
int objectId () const
- Public Member Functions inherited from OpenFlipperThread
 OpenFlipperThread (QString _jobId)
void run ()
 Main processing. More...
QString jobId ()
 get JobId get the Id of the current Job
- Public Member Functions inherited from OpenMesh::Decimater::Observer
 Observer (size_t _notificationInterval)
virtual ~Observer ()
size_t get_interval () const
 Get the interval between notification steps.
void set_interval (size_t _notificationInterval)
 Set the interval between notification steps.

Private Attributes

bool abort_
int maxCollapses_
Params param_
QString jobId_
BaseDecimaterType * baseDec_
int objId_

Additional Inherited Members

- Signals inherited from OpenFlipperThread
void startProcessingInternal ()
 start processing of a function More...
void state (QString _jobId, int _state)
 Tell core about job state. More...
void function (const QString _jobId="")
 job function More...
void finished (QString _jobId)
 job done More...

Detailed Description

Definition at line 63 of file DecimateThread.hh.

Member Function Documentation

bool DecimateThread::abort ( ) const

Abort callback.

After each notification, this function is called by the decimater. If the function returns true, the decimater will stop at a consistent state. Otherwise it will continue.

abort Yes or No

Reimplemented from OpenMesh::Decimater::Observer.

Definition at line 58 of file

void DecimateThread::cancel ( )

Cancel the job.

Reimplement this function to correctly terminate your job. If your job is able to terminate correctly then you can reimplement this function and stop your process.

Reimplemented from OpenFlipperThread.

Definition at line 89 of file

void DecimateThread::notify ( size_t  _step)


This function has to be overloaded. It will be called regularly during the decimation process and will return the current step.

_stepCurrent step of the decimater

Implements OpenMesh::Decimater::Observer.

Definition at line 53 of file

The documentation for this class was generated from the following files:
