OpenMesh::Kernel_OSG::FP::GeoIndicesUI32< IsTriMesh > Class Template Reference

Adaptor for osg::GeoIndicesUI32. More...

#include <libs_required/OpenMesh/src/OpenMesh/Tools/Kernel_OSG/PropertyT.hh>

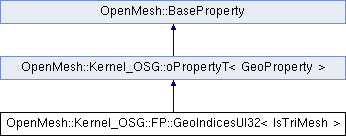

Inheritance diagram for OpenMesh::Kernel_OSG::FP::GeoIndicesUI32< IsTriMesh >:
OpenMesh::Kernel_OSG::oPropertyT< GeoProperty > OpenMesh::BaseProperty

Public Types

typedef _GeoIndicesUI32 inherited_t
typedef inherited_t::property_ptr_t property_ptr_t
- Public Types inherited from OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >
typedef GeoProperty property_t
typedef property_t::PtrType property_ptr_t
typedef property_t::StoredFieldType field_t
typedef field_t::StoredType element_t
typedef field_t::StoredType value_type

Public Member Functions

 GeoIndicesUI32 (property_ptr_t _geo_prop, GeoPTypesUI8 &_types, GeoPLengthsUI32 &_lengths)
 GeoIndicesUI32 (GeoPTypesUI8 &_types, GeoPLengthsUI32 &_lengths)
void swap (size_t _i0, size_t _i1)
 Let two elements swap their storage place.
virtual void reserve (size_t _n)
 Reserve memory for n elements.
virtual void resize (size_t _n)
 Resize storage to hold n elements.
- Public Member Functions inherited from OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >
 oPropertyT (property_ptr_t _geo_prop, const std::string &_name="<unknown>")
 oPropertyT (const std::string &_name="<unknown>")
oPropertyToperator= (const oPropertyT &_rhs)
virtual void push_back ()
 Extend the number of elements by one.
virtual oPropertyT< property_t > * clone () const
 Return a deep copy of self.
virtual void set_persistent (bool _yn)
virtual size_t n_elements () const
 Number of elements in property.
virtual size_t element_size () const
 Size of one element in bytes or UnknownSize if not known.
virtual size_t store (std::ostream &_ostr, bool _swap) const
 Store self as one binary block.
virtual size_t restore (std::istream &_istr, bool _swap)
void clear (void)
 Clear all elements and free memory.
property_ptr_t & osg_ptr ()
const property_ptr_t & osg_ptr () const
const element_t * data () const
element_t & operator[] (size_t idx)
const element_t & operator[] (size_t idx) const
- Public Member Functions inherited from OpenMesh::BaseProperty
 BaseProperty (const std::string &_name="<unknown>")
 Default constructor. More...
 BaseProperty (const BaseProperty &_rhs)
 Copy constructor.
virtual ~BaseProperty ()
virtual void copy (size_t _io, size_t _i1)=0
 Copy one element to another.
const std::string & name () const
 Return the name of the property.
virtual void stats (std::ostream &_ostr) const
bool persistent (void) const
 Returns true if the persistent flag is enabled else false.
virtual size_t size_of () const
 Return size of property in bytes.
virtual size_t size_of (size_t _n_elem) const

Protected Member Functions

void _swap (size_t _i0, size_t _i1, GenProg::False)
void _swap (size_t _i0, size_t _i1, GenProg::True)
virtual void _reserve (size_t _n, GenProg::True)
virtual void _reserve (size_t _n, GenProg::False)
virtual void _resize (size_t _n, GenProg::True)
virtual void _resize (size_t _n, GenProg::False)
- Protected Member Functions inherited from OpenMesh::BaseProperty
template<typename T >
void check_and_set_persistent (bool _yn)

Protected Attributes

- Protected Attributes inherited from OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >
property_ptr_t data_

Additional Inherited Members

- Static Public Attributes inherited from OpenMesh::BaseProperty
static const size_t UnknownSize = size_t(-1)
 Indicates an error when a size is returned by a member.

Detailed Description

template<typename IsTriMesh>
class OpenMesh::Kernel_OSG::FP::GeoIndicesUI32< IsTriMesh >

Adaptor for osg::GeoIndicesUI32.

Definition at line 293 of file PropertyT.hh.

The documentation for this class was generated from the following file:
